HD P6 Outdoor LED Video Wall SMD2727 Nationstar 7000 CD/m2 with Power Box
HD P6 Outdoor LED Video Wall SMD2727 Nationstar 7000 CD/m2 with Power Box
HD P6 Outdoor LED Video Wall SMD2727 Nationstar 7000 CD/m2 with Power Box
HD P6 Outdoor LED Video Wall SMD2727 Nationstar 7000 CD/m2 with Power Box
HD P6 Outdoor LED Video Wall SMD2727 Nationstar 7000 CD/m2 with Power Box
HD P6 Outdoor LED Video Wall SMD2727 Nationstar 7000 CD/m2 with Power Box
HD P6 Outdoor LED Video Wall SMD2727 Nationstar 7000 CD/m2 with Power Box
HD P6 Outdoor LED Video Wall SMD2727 Nationstar 7000 CD/m2 with Power Box
Specifications
Brand Name :
Dreamway
Model Number :
P6
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
2000sq.m/Month
Delivery Time :
20 days after receiving the deposit
Packaging Details :
Plywood case
Type :
P6
LED Type :
SMD2727
LED Encapsulation :
Nationstar
Drive IC :
SM16106
Brightness :
7,000 nits
Refresh Rate :
1,000 Hz
Resolution :
1024 x 512 pixels
Cabinet Size :
768 x 768 mm
Description

HD P6 Outdoor LED Video Wall SMD2727 Nationstar 7000 CD/m2 with Power Box

Quick Detail:

1. SMD2727;
2. Nationstar LED encapsulation;
3. New Light PCB, mask, base cover;
4. About 7,000 CD/m2;
5. Auto brightness adjustment;
6. Video processor equipped.

Detail Description:

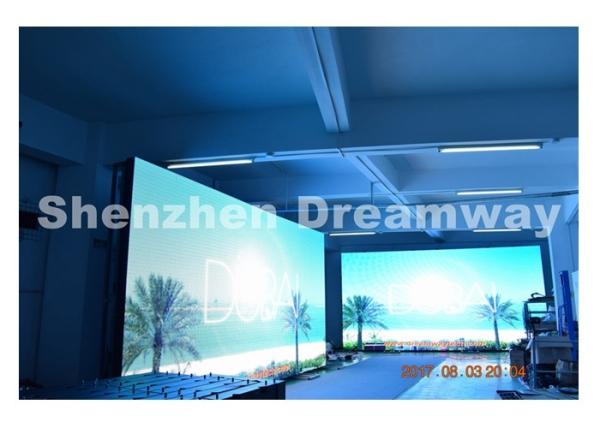

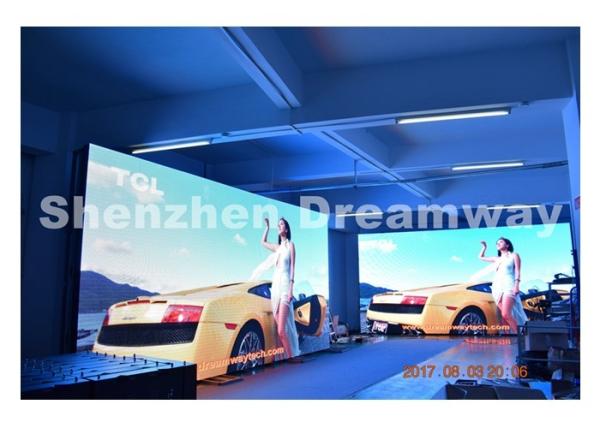

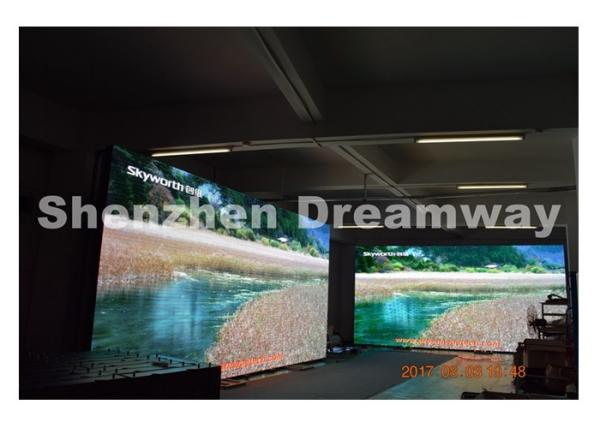

The screen is composed with W 8 x H 4 pcs cabinets, with each cabinet 768 x 768 mm;
Colored data cable is used in this project, with better quality;
Meanwell RSP-320-5 power supply is equipped, with CB/CE/UL standard.

Application:

This is used for outdoor, installed on wall, or pillar based, or on building.

Specifications:

Pixel Pitch

6 mm

LED Type

SMD2727

LED Encapsulation

Nationstar

PCB

New Light, 1.6 mm thickness

Module Pixel

W 32 × H 32 dots

LED Module Size

W 192 × H 192 mm

Cabinet Weight

about 23 kg/pc

Cabinet Size

W 768 × H 768 mm

Cabinet Quantity

W 8 × H 4 pcs

Min. Viewing Distance

6 m

Driving Method

1/8 scan constant current

Brightness

7,000 nits with testing by luminance colorimeter

View angle

120 degrees

Power Supply

Meanwell

Power Box

30 KW

Video Processor

HDMI, VGA, DVI input signal

Power and Signal Connector

Linko

HD P6 Outdoor LED Video Wall SMD2727 Nationstar 7000 CD/m2 with Power Box
