PH10 EPISTAR LED chip Perimeter LED Display MBI5224 IC Big View Angle
PH10 EPISTAR LED chip Perimeter LED Display MBI5224 IC Big View Angle
PH10 EPISTAR LED chip Perimeter LED Display MBI5224 IC Big View Angle
PH10 EPISTAR LED chip Perimeter LED Display MBI5224 IC Big View Angle
PH10 EPISTAR LED chip Perimeter LED Display MBI5224 IC Big View Angle
PH10 EPISTAR LED chip Perimeter LED Display MBI5224 IC Big View Angle
PH10 EPISTAR LED chip Perimeter LED Display MBI5224 IC Big View Angle
PH10 EPISTAR LED chip Perimeter LED Display MBI5224 IC Big View Angle
Specifications
Brand Name :
Dreamway
Model Number :
P10
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
2000sq.m/Month
Delivery Time :
20 days after receiving the deposit
Packaging Details :
Flight case
Description

PH10 EPISTAR LED chip Perimeter LED Display MBI5224 IC Big View Angle

Quick Detail:

1. MBI5224 driving IC;
2. Over 8,000 nits/sq.m;
3. 120° view angle;
4. Meanwell power supply;
5. Protect cover above the cabinet;
6. Video process equipped.

Detail Description:

The cabinet is steel made, with support at the back and protect cover above the cabinet;
The brightness reaches to 8,000 CD, totally visible under sunlight;
Meanwell brand power source used, good quality.

Application:

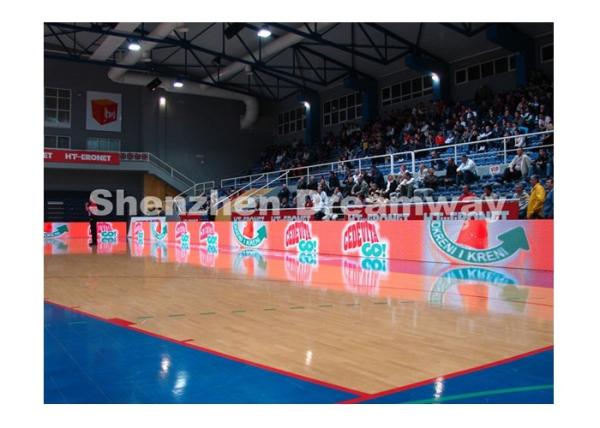

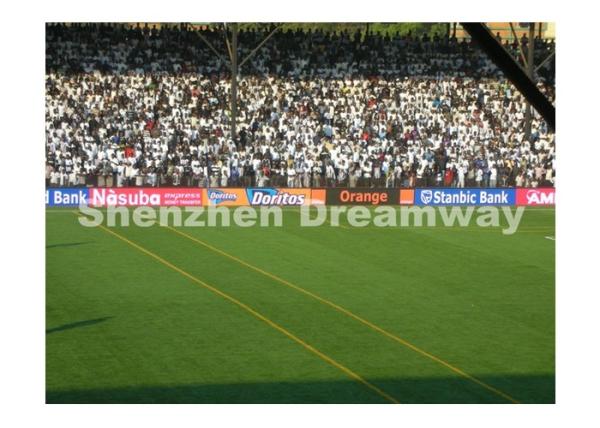

This perimeter LED display is to show ads around stadium, with soft LED module mask above, in case of damage to the sportsman.

Specifications:

Pixel Pitch

10 mm

LED Composition

1R1G1B

LED Chip

EPISTAR

Resolution

10,000 dots/sq.m

Module Pixel

W 16 × H 16

Module Size

W 160 × H 160 mm

Cabinet Material

Steel waterproof cabinet

Driving Method

1/4 scan constant current

Brightness

≥8000 nits/sq.m

Refresh Rate

1200~4000 Hz

Drive IC

MBI5224

Earth Leakage Current

＜2mA

MTBF

＞5,000 hours

LED Life Span

＞100,000 hours

Power Source

110V/60HZ and 220V/50HZ interchangeable

Brand

Meanwell

Power Connector

YZK

Video Processor

VMS736


PH10 EPISTAR LED chip Perimeter LED Display MBI5224 IC Big View Angle
