10 mm Sports LED Display Pixel Pitch , 960mm x 960 mm LED Cabinet
10 mm Sports LED Display Pixel Pitch , 960mm x 960 mm LED Cabinet
10 mm Sports LED Display Pixel Pitch , 960mm x 960 mm LED Cabinet
10 mm Sports LED Display Pixel Pitch , 960mm x 960 mm LED Cabinet
10 mm Sports LED Display Pixel Pitch , 960mm x 960 mm LED Cabinet
10 mm Sports LED Display Pixel Pitch , 960mm x 960 mm LED Cabinet
10 mm Sports LED Display Pixel Pitch , 960mm x 960 mm LED Cabinet
10 mm Sports LED Display Pixel Pitch , 960mm x 960 mm LED Cabinet
Specifications
Brand Name :
Dreamway
Model Number :
P10
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
2000sq.m/Month
Delivery Time :
20 days after receiving the deposit
Packaging Details :
Plywood case
Description

10 mm Sports LED Display Pixel Pitch , 960mm x 960 mm LED Cabinet

Quick Detail:

1. More than 7,500 nits;
2. EPISTAR LED chip;
3. MBI5024 drive IC;
4. 960×960 mm LED box;
5. 96×96 dots per cabinet;
6. 3 pcs power supply with 300 W.

Detail Description:

The luminance could reach to 7,500 nits, with good quality LED chip and drive IC;
YHY brand power supply equipped with UL standard, 3 pcs in a cabinet;
Plywood or flight case could be used to pack the goods based on your requirement.

Application:

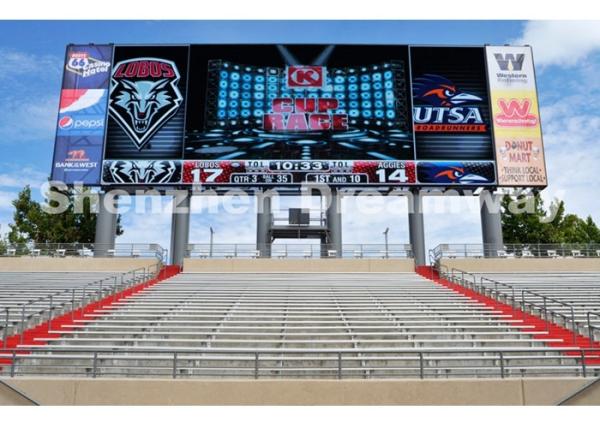

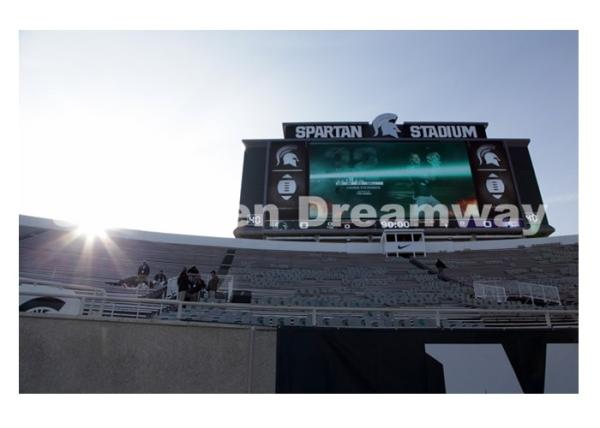

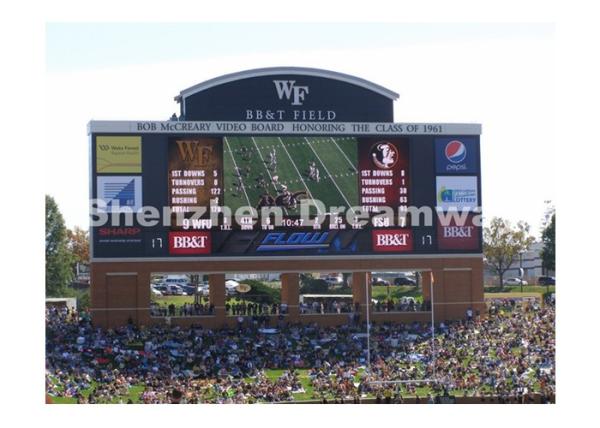

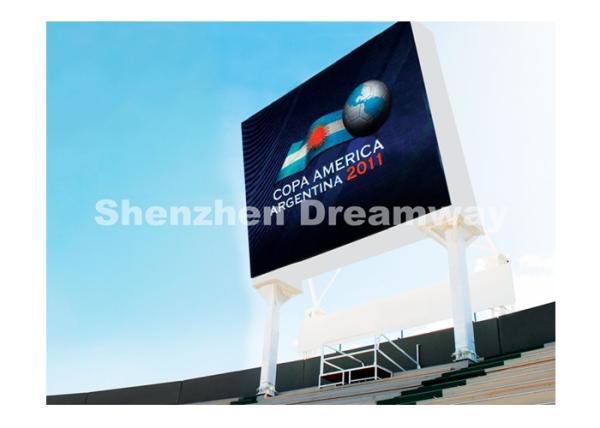

Such stadium LED display billboard is used for outdoor soccer stadium advertising.

Specifications:

Model

PH 10

Resolution

10,000 dots/sq.m

LED Type

DIP346

LED Chip

Epistar

Module Pixel

W 16 × H 16

Module Size

W 160 × H 160 mm

Cabinet Material

Steel waterproof cabinet with back door

Drive Method

1/4 scan constant current

Luminance

≥7500 nits/sq.m

Refresh Rate

≥1200 Hz

Drive IC

MBI5024

Earth Leakage Current

＜2mA

MTBF

＞5,000 hours

LED Life Span

＞100,000 hours

Power Supply

110V/60HZ and 220V/50HZ interchangeable

Brand

YHY

Controller

NovaStar

Warranty

2 years


10 mm Sports LED Display Pixel Pitch , 960mm x 960 mm LED Cabinet
