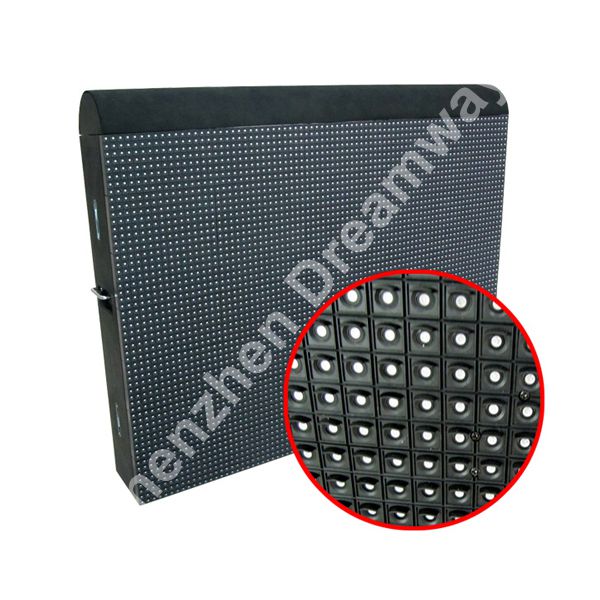

Indoor P10 Perimeter LED Screen with SMD3528 Epistar LED 320mm x 160 mm Module
Indoor P10 Perimeter LED Screen with SMD3528 Epistar LED 320mm x 160 mm Module
Indoor P10 Perimeter LED Screen with SMD3528 Epistar LED 320mm x 160 mm Module
Indoor P10 Perimeter LED Screen with SMD3528 Epistar LED 320mm x 160 mm Module
Indoor P10 Perimeter LED Screen with SMD3528 Epistar LED 320mm x 160 mm Module
Indoor P10 Perimeter LED Screen with SMD3528 Epistar LED 320mm x 160 mm Module
Indoor P10 Perimeter LED Screen with SMD3528 Epistar LED 320mm x 160 mm Module
Indoor P10 Perimeter LED Screen with SMD3528 Epistar LED 320mm x 160 mm Module
Specifications
Place of Origin :
China
Brand Name :
Dreamway
Certification :
CE,ROHS
Model Number :
P10
MOQ :
negotiable
Price :
negotiable
Packaging Details :
Flight case
Delivery Time :
20 days after receiving the deposit
Payment Terms :
T/T
Supply Ability :
2000sq.m/Month
Description



Indoor P10 Perimeter LED Screen with SMD3528 Epistar LED 320 by 160 mm Module


Quick Detail:

1. SMD3528 LED encapsulation;
2. Epistar LED chip;
3. 32×16 dots per module;
4. 320×160 mm LED module size;
5. 1/8 scan constant current;
6. More than 1000 nits/sq.m.


Detail Description:

This type is indoor use, for advertising around the stadium;
Each cabinet is 960×960 mm generally, with 96×96 dots per cabinet;
Video processor and flight case are equipped.


Application:

It is installed around the stadium for advertising, generally showing texts.


Specifications:

Model

P 10

LED Composition

1R1G1B

LED Type

SMD3528

Drive IC

JXI5020

Module Pixel

W 32 × H 16

Module Size

W 320 × H 160 mm

Cabinet Material

Steel cabinet designed specially with support

Driving Method

1/8 scan constant current

Brightness

≥1000 nits/sq.m

Refresh Rate

1200~4000 Hz

Out of Control Dot Rate

＜0.0001

Earth Leakage Current

＜2mA

MTBF

＞5,000 hours

Life Span

＞100,000 hours

Power Supply

110V/60HZ and 220V/50HZ interchangeable

Humidity

10%~90%

Control Method

Synchronous control

Operation Software

NovaStudio


Indoor P10 Perimeter LED Screen with SMD3528 Epistar LED 320mm x 160 mm Module
