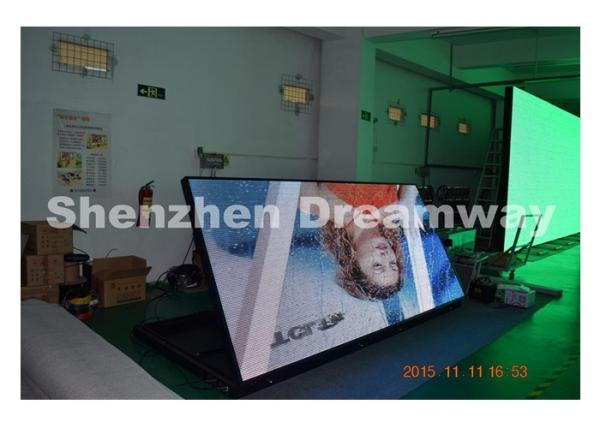

DIP P10 Outdoor LED Signs 2.88 by 1.28 m Screen Size Steel Cabinet
DIP P10 Outdoor LED Signs 2.88 by 1.28 m Screen Size Steel Cabinet
DIP P10 Outdoor LED Signs 2.88 by 1.28 m Screen Size Steel Cabinet
DIP P10 Outdoor LED Signs 2.88 by 1.28 m Screen Size Steel Cabinet
DIP P10 Outdoor LED Signs 2.88 by 1.28 m Screen Size Steel Cabinet
DIP P10 Outdoor LED Signs 2.88 by 1.28 m Screen Size Steel Cabinet
DIP P10 Outdoor LED Signs 2.88 by 1.28 m Screen Size Steel Cabinet
DIP P10 Outdoor LED Signs 2.88 by 1.28 m Screen Size Steel Cabinet
Specifications
Brand Name :
Dreamway
Model Number :
P10
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
2000sq.m/Month
Delivery Time :
20 days after receiving the deposit
Packaging Details :
Plywood case
Model :
PH10
LED Type :
DIP346
Screen Size :
2.88 × 1.28 m
Whole Cabinet Size :
2.92 × 1.32 m
Cabinet :
Steel cabinet with frame
Cabinet Quantity :
2 pcs
Control Method :
Synchronous control
Thickness :
150 mm
Description



DIP P10 Outdoor LED Signs 2.88 by 1.28 m Screen Size Steel Cabinet


Quick Detail:

1. 2.88 × 1.28 m screen size;
2. 2.92 × 1.32 m whole cabinet size;
3. Front service cabinet;
4. 8 pcs power supplies in a cabinet;
5. DIP346 LED type;
6. 9 × 8 pcs LED modules per cabinet.


Detail Description:

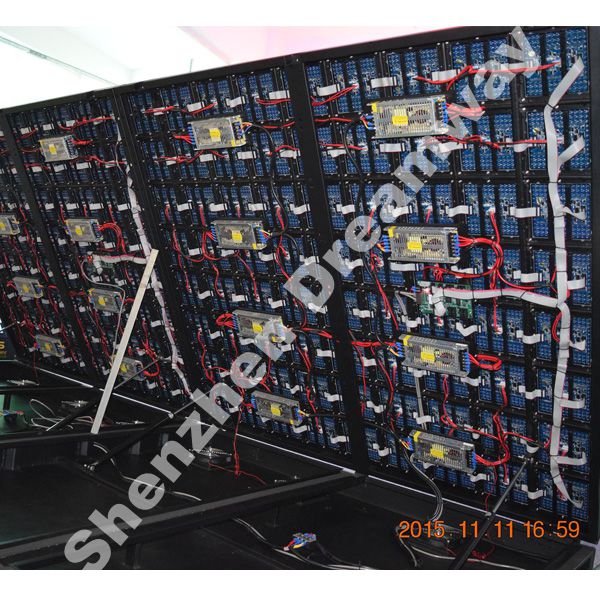

This is front maintenance steel cabinet with frame and hydraulic lever, easy to maintain from front;
Controlled with PC by synchronization, NOVA controller, with high refresh rate;
3% spare parts provided for customers to replace defective ones in the future.


Specifications:

Type

P10

LED Chip

EPISTAR

LED Module Pixel

W 16 × H 16

LED Module Size

W 160 × H 160 mm

Screen Size

W 2880 × H 1280 mm

Cabinet Size (without frame)

W 1440 × H 1280 mm

Service Method

Front

Cabinet Color

Black

Cabinet Material

Steel waterproof cabinet with frame and hydraulic lever

Drive Method

1/4 scan constant current

Luminance

≥6500 nits/sq.m

LED Module in a Cabinet

W 9 × H 8 = 72 pcs

Refresh Rate

960 HZ

Earth Leakage Current

＜2mA

MTBF

＞5,000 hours

Life Span

＞100,000 hours

Control Method

Synchronization

Controller

NOVASTAR

Operation Software

NOVASTUDIO

Package

Plywood case


DIP P10 Outdoor LED Signs 2.88 by 1.28 m Screen Size Steel Cabinet
