P5 SMD2727 Outdoor Advertising LED Display Led Video Wall Panels By 960 mm Cabinet
P5 SMD2727 Outdoor Advertising LED Display Led Video Wall Panels By 960 mm Cabinet
P5 SMD2727 Outdoor Advertising LED Display Led Video Wall Panels By 960 mm Cabinet
P5 SMD2727 Outdoor Advertising LED Display Led Video Wall Panels By 960 mm Cabinet
P5 SMD2727 Outdoor Advertising LED Display Led Video Wall Panels By 960 mm Cabinet
P5 SMD2727 Outdoor Advertising LED Display Led Video Wall Panels By 960 mm Cabinet
P5 SMD2727 Outdoor Advertising LED Display Led Video Wall Panels By 960 mm Cabinet
P5 SMD2727 Outdoor Advertising LED Display Led Video Wall Panels By 960 mm Cabinet
Specifications
Brand Name :
Dreamway
Model Number :
P5
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
2000sq.m/Month
Delivery Time :
20 days after receiving the deposit
Packaging Details :
Plywood case
Model :
PH5
LED Type :
SMD2727
Screen Size :
5.76 × 2.88 m
Resolution :
1152 × 576 pixels
Cabinet :
Aluminum
Weight :
32.2 kg/pc
Controller :
NOVASTAR
Video Processor :
VP10
Description

P5 SMD2727 Outdoor Advertising LED Display Led Video Wall Panels By 960 mm Cabinet

Quick Detail:

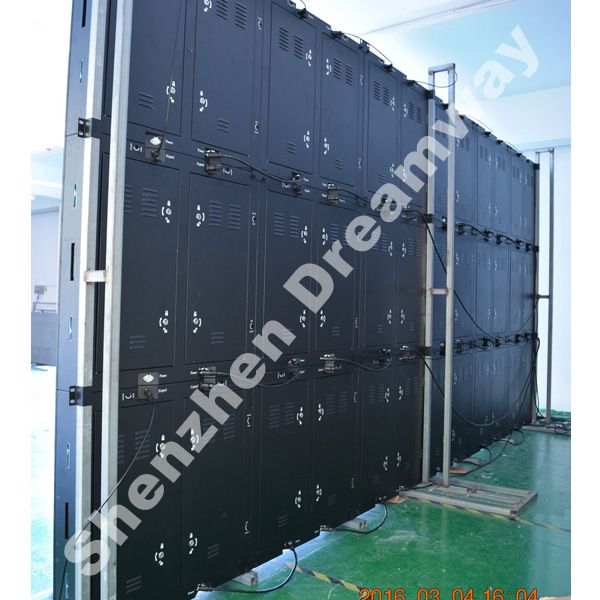

1. 6 × 3 pcs cabinets;
2. 192 × 192 pixels per cabinet;
3. 2 pcs receiving cards in 1 pc cabinet;
4. 4 pcs power supplies in 1 pc LED cabinet;
5. 4 pcs fans in 1 pc cabinet;
6. Aluminum cabinet with handle.

Detail Description:

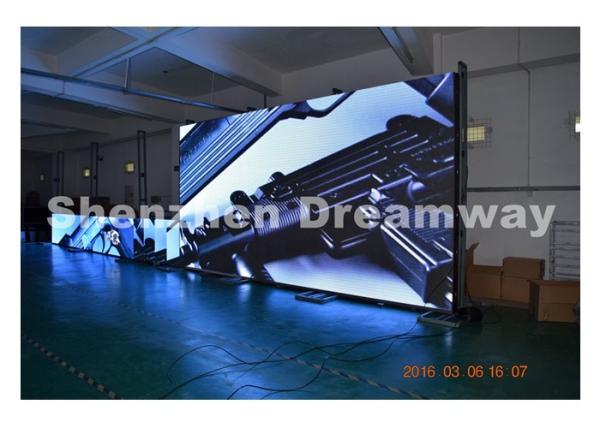

High brightness and resolution, with 8,000 nits, 1152 × 576 pixels in total;
2 pcs cabinets in 1 pc flight case, about 108 kg totally;
Video processor equipped to gain more input signals, like VGA, DVI, HDMI, S-VIDEO, etc.

Application:

P5 outdoor advertising LED display is for outdoor advertising, with high resolution and brightness.

Specifications:

Type

5 mm

LED Type

SMD2727

Screen Size

W 5.76 × H 2.88 m

LED Module Size

W 160 × H 160 mm

LED Module Pixel

W 32 × H 32 dots

Screen Resolution

W 1152 × H 576 pixels

Cabinet Size

W 960 × H 960 × D 165 mm

Cabinet Weight

32.2 kg/pc

Material

Aluminum waterproof cabinet with handle

Cabinet Resolution

W 192 × H 192 pixels

Cabinet Quantity

W 6 × H 3 = 18 pcs

Drive IC

MBI5020

Drive Method

1/8 scan constant current

Luminance

8000 CD/sq.m

Video Processor

VP10

Input Signal

VGA, DVI, HDMI, etc

Power Supply

5V 60A

Brand

Meanwell RSP-320-5

Controller

Novastar

Package

Flight case & plywood case

P5 SMD2727 Outdoor Advertising LED Display Led Video Wall Panels By 960 mm Cabinet

P5 SMD2727 Outdoor Advertising LED Display Led Video Wall Panels By 960 mm Cabinet

5mm Outdoor LED Display Screen, HD Outdoor Waterproof LED Display, High Luminance P 5 Outdoor LED Display Panel
