PH 10 Indoor LED Moving Message Display Single Red with CE / UL Standard
PH 10 Indoor LED Moving Message Display Single Red with CE / UL Standard
PH 10 Indoor LED Moving Message Display Single Red with CE / UL Standard
PH 10 Indoor LED Moving Message Display Single Red with CE / UL Standard
PH 10 Indoor LED Moving Message Display Single Red with CE / UL Standard
PH 10 Indoor LED Moving Message Display Single Red with CE / UL Standard
PH 10 Indoor LED Moving Message Display Single Red with CE / UL Standard
PH 10 Indoor LED Moving Message Display Single Red with CE / UL Standard
Specifications
Brand Name :
Dreamway
Model Number :
P10
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
2000sq.m/Month
Delivery Time :
20 days after receiving the deposit
Packaging Details :
Plywood case
Model :
PH10
Usage :
Indoor
LED :
Red
Screen Dimension :
960 × 160 mm
Width :
9 cm
Power Source :
Meanwell
Standard :
CE, UL
Control Method :
USB
Description



PH 10 Indoor LED Moving Message Display Single Red with CE / UL Standard


Quick Detail:

1. 960 by 160 mm screen size;
2. 1030 by 230 mm cabinet dimension;
3. Aluminum frame material;
4. 9 cm thickness;
5. Meanwell power supply;
6. USB control.


Detail Description:

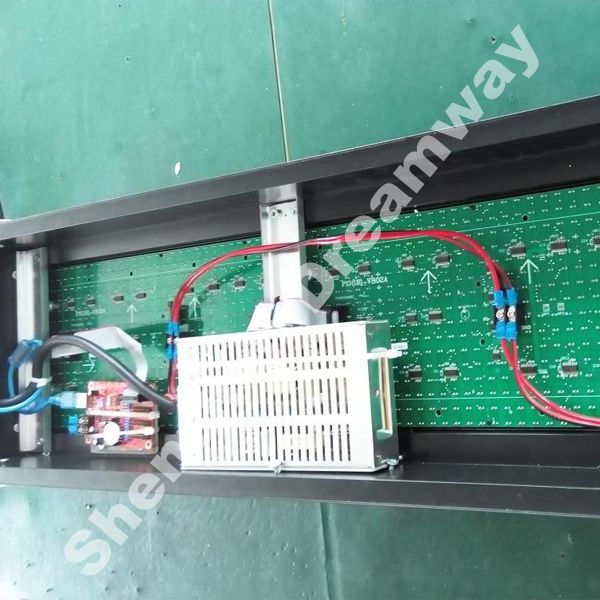

This is indoor single red to show text, with USB control method;
Meanwell power supply of 5V 15A equipped;
It is 96 by 16 dots, with 3 pcs LED modules in total.


Application:

This LED moving message display would be used in South America for text showing indoor.


Specifications:

Type

P 10

LED Chip

EPISTAR

LED Type

DIP546

Resolution

10,000 dots/sq.m

LED Module Pixel

W 32 × H 16

Module Size

W 320 × H 160 mm

Screen Size

W 960 × H 160 × T 90 mm

Cabinet Material

Aluminum frame

Drive Method

1/4 scan constant voltage

Luminance

≥2000 CD/sq.m

LED Composition

1R

Out of Control Dot Rate

＜0.0001

Earth Leakage Current

＜2mA

MTBF

＞5,000 hours

Life Span

＞100,000 hours

Power Supply Plug

European standard

Power Supply

Meanwell

Standard

CE and UL

Package

Plywood case


PH 10 Indoor LED Moving Message Display Single Red with CE / UL Standard

P10 Indoor LED Sign, LED Moving Message, Mono Color LED Moving Sign
