PH16 Outdoor LED Screen Module 1R1G1B DIP546 with MBI5024 Drive IC
PH16 Outdoor LED Screen Module 1R1G1B DIP546 with MBI5024 Drive IC
PH16 Outdoor LED Screen Module 1R1G1B DIP546 with MBI5024 Drive IC
PH16 Outdoor LED Screen Module 1R1G1B DIP546 with MBI5024 Drive IC
PH16 Outdoor LED Screen Module 1R1G1B DIP546 with MBI5024 Drive IC
PH16 Outdoor LED Screen Module 1R1G1B DIP546 with MBI5024 Drive IC
PH16 Outdoor LED Screen Module 1R1G1B DIP546 with MBI5024 Drive IC
PH16 Outdoor LED Screen Module 1R1G1B DIP546 with MBI5024 Drive IC
Specifications
Brand Name :
Dreamway
Model Number :
P16
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
10,000PCS/Month
Delivery Time :
5 days after receiving the deposit
Packaging Details :
Carton case
Pixel Pitch :
16 mm
LED Module :
16 × 16 dots
Size :
256 × 256 mm
Driving Method :
Static scan
Driving IC :
MBI5024
LED Composition :
1R1G1B
Brightness :
8000 nits/sq.m
LED Type :
DIP546
Description

PH16 Outdoor LED Screen Module 1R1G1B DIP546 with MBI5024 Drive IC

Quick Detail:

1. 16 × 16 dots per LED module;

2. 256 × 256 mm module;

3. Static scan;

4. 1R1G1B LED composition;

5. MBI5024 drive IC;

6. 5V drive voltage.

Detail Description:

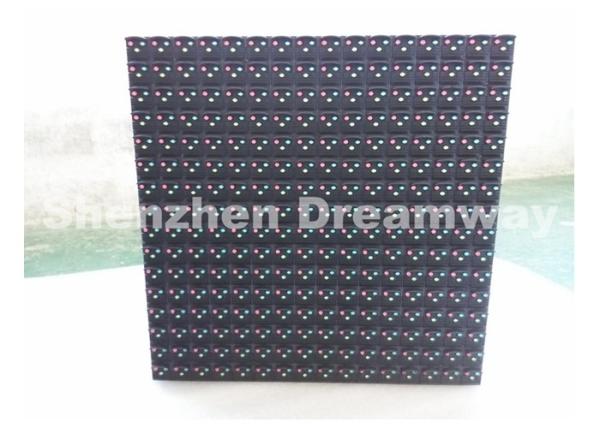

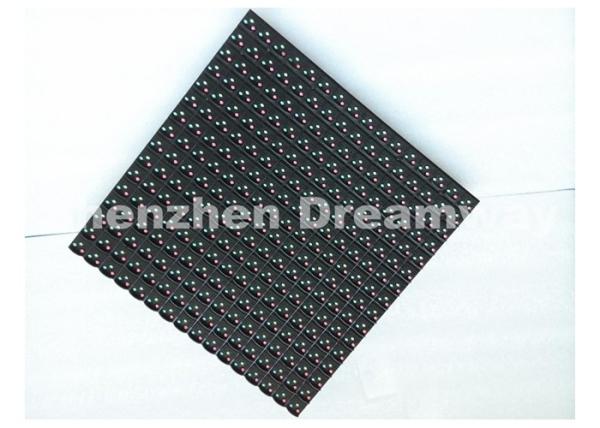

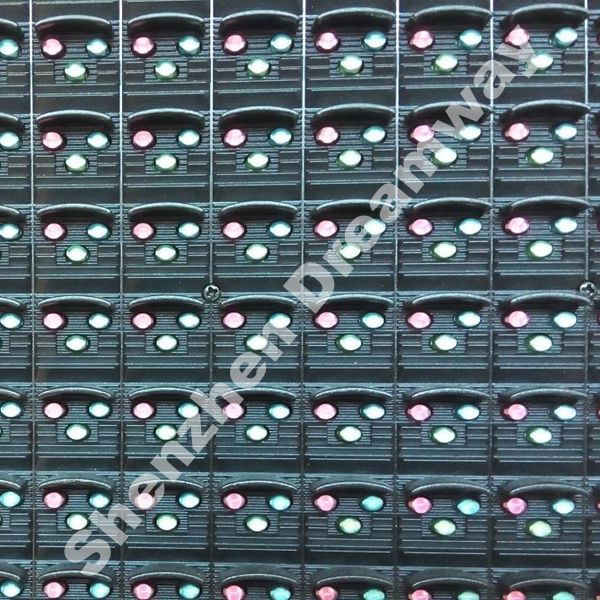

The P16 LED module is 1R1G1B type, with 16 by 16 dots, 256 by 256 mm size;

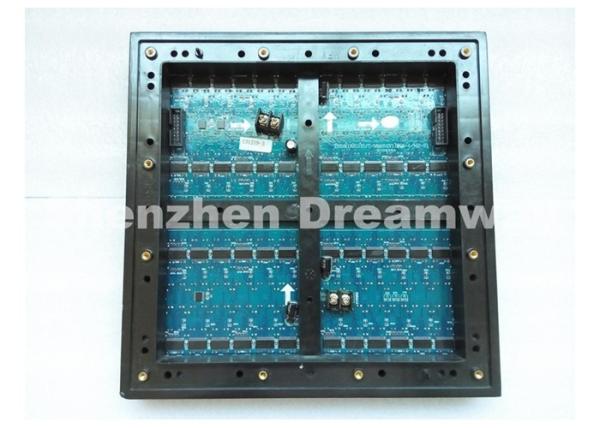

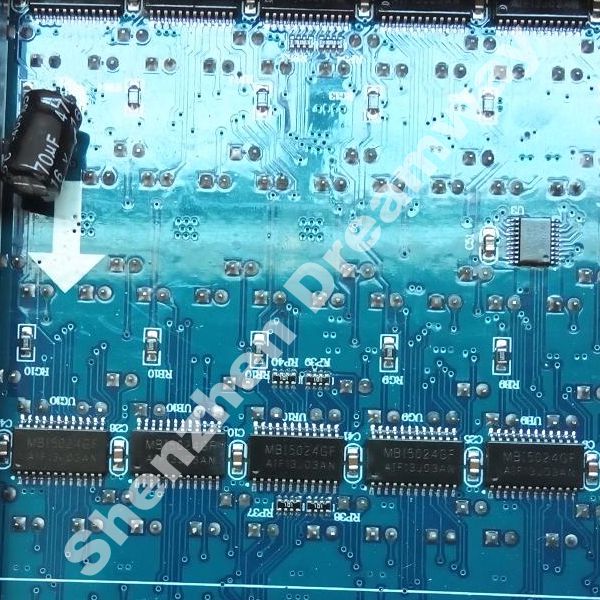

There are 48 pcs MBI5024 driving IC in total, static scan, high brightness;

Carton case is used for package, plywood case is available if needed.

Specifications:

Pixel Pitch

16 mm

Resolution

3,906 pixels/sq.m

LED Type

DIP546

LED Module Pixel

W 16 × H 16

LED Module Size

W 256 × H 256 mm

LED Composition

1R 1G 1B

Driving Method

Static scan

Brightness

More than 8000 nits/sq.m

Drive Voltage

5V

Package

Carton Case

PH16 Outdoor LED Screen Module 1R1G1B DIP546 with MBI5024 Drive IC

PH16 Outdoor LED Screen Module 1R1G1B DIP546 with MBI5024 Drive IC
