Indoor Led Video Screen Rental P6 SMD3528 LED Die-Casting Aluminum Cabinet
Indoor Led Video Screen Rental P6 SMD3528 LED Die-Casting Aluminum Cabinet
Indoor Led Video Screen Rental P6 SMD3528 LED Die-Casting Aluminum Cabinet
Indoor Led Video Screen Rental P6 SMD3528 LED Die-Casting Aluminum Cabinet
Indoor Led Video Screen Rental P6 SMD3528 LED Die-Casting Aluminum Cabinet
Indoor Led Video Screen Rental P6 SMD3528 LED Die-Casting Aluminum Cabinet
Indoor Led Video Screen Rental P6 SMD3528 LED Die-Casting Aluminum Cabinet
Indoor Led Video Screen Rental P6 SMD3528 LED Die-Casting Aluminum Cabinet
Specifications
Brand Name :
Dreamway
Model Number :
P6
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
2000sq.m/Month
Delivery Time :
20 days after receiving the deposit
Packaging Details :
Flight case
Pixel Pitch :
6 mm
Cabinet :
Die-casting aluminum
Cabinet Size :
576 × 576 mm
Thickness :
9 cm
Weight :
9 kg/pc
Power Supply :
G-Energy
Control Card :
LINSN
Quality Guarantee :
2 years
Description



Indoor Led Video Screen Rental P6 SMD3528 LED Die-Casting Aluminum Cabinet


Quick Detail:

1. 32 × 32 dots LED module;
2. 192 × 192 mm module size;
3. 576 × 576 mm cabinet dimension;
4. About 9 kg/pc;
5. About 9 cm thickness;
6. G-Energy super-thin power supply.


Detail Description:

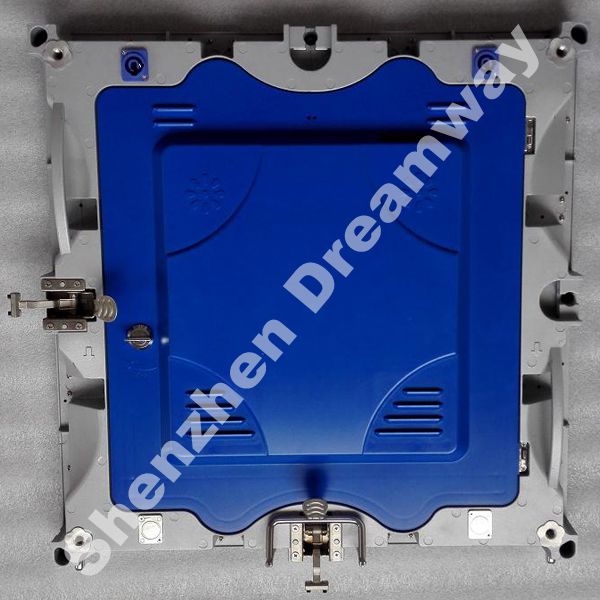

This die-casting aluminum cabinet size is 576 by 576 mm, with 96 by 96 pixels per cabinet;
The refresh rate could be more than 1,200 HZ, with NOVASTAR controller;
Each cabinet is equipped with a 5V 60A power supply.


Application:

Such indoor LED screen rental is installed for concert, shows, fair, etc, for rental advertising.


Specifications:

Pixel Pitch

6 mm

LED Composition

1R1G1B

LED Type

SMD3528

LED Module Quantity (per cabinet)

W 3 × H 3 = 9 pcs

LED Module Pixel

W 32 × H 32

LED Module Size

W 192 × H 192 mm

Cabinet Size

W 576 × H 576 × D 90 mm

Cabinet Material

Die-casting aluminum

Driving Mode

1/16 scan constant current

Brightness

≥1400 nits/sq.m

Refresh Rate

≥1200Hz

Out of Control Dot Rate

＜0.0001

Earth Leakage Current

＜2mA

MTBF

＞5,000 hours

LED Life Time

＞100,000 hours

Power Supply

110V/60HZ and 220V/50HZ interchangeable

Brand

G-energy

Input Signal

DVI, HDMI, VGA, CV, S-VIDEO

Video Processor

JSEE


Indoor Led Video Screen Rental P6 SMD3528 LED Die-Casting Aluminum Cabinet

Indoor Led Video Screen Rental P6 SMD3528 LED Die-Casting Aluminum Cabinet
