Specifications
Brand Name :
Dreamway
Model Number :
P6
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
2000sq.m/month
Delivery Time :
20 days after receiving the deposit
Packaging Details :
plywood case
Product Name :
p6 outdoor led display
Pixel Pitch :
6 mm
Tube Chip Color :
Full Color
Module Size :
192×192mm
Screen Dimension :
768×768mm
Usage :
Outdoor Advertising
Application :
Fixed Installation for Advertising
Display Function :
P6 Outdoor LED Video Wall
Scan Mode :
1/8 Scan
Warranty :
1-2 Years
Description

P6 Outdoor LED Display Outdoor Billboard Fixed Installation for Advertising

Quick Detail of P6 Outdoor Billboard:

1. W 192 × H 192 mm LED Module Size

2. W 768 × H 768 mm LED Cabinet Size

3. About 23 kg/pc


4. At least 1 year quality guarantee

5. Iron waterproof cabinet with back door


Feature of P6 Outdoor Billboard:

1. Independent waterproof structure for both cabinet & module, front proof IP65 rear proof IP54,

better waterproof & dustproof effect.
2. Supporting both front & rear maintenance, quick & fast installation.
3. High brightness, gray, & refresh rate is optional, high quality image effect under sunbathing.

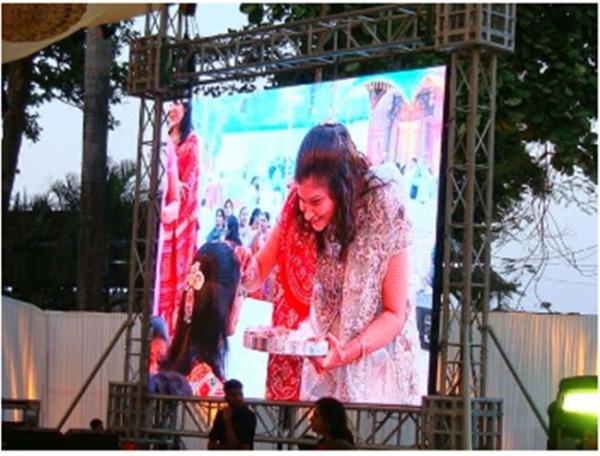

Application of P6 Outdoor Billboard:

Outdoor LED Advertising Signs has the function of waterproof and it is convinient to carry

Outdoor LED Advertising Signs as a new carrier of outdoor media and acceptable for public

Outdoor LED Advertising Signs has the advantages of large capacity, dynamic picture and sound transmission

Product Description of P6 Outdoor Billboard:

Module parameters
Technical parameters UNIT Parameters values
Pixel pitch MM PH6
Material Iron waterproof cabinet with back door
Moudle size MM W 192 × H192
Cabinet size MM W 768 × H 768
Physical density dot / M2 27,777
LED module pixel DOTS W 32 × H 32 = 1,024
Drive IC ICN2037
LED Encapsulation SMD 2727
Pixel configuration 1R1G1B
Driving method 1/8 scan
Maximum power W / M2 <800
Brightness CD/M2 ≥5500
Working temperature °C -20~+60
Working humidity RH 10%~90%
Min. viewing distance M 18
Lamp failure frequency <0.0001

IP rating

IP 65
Controller

Novastar

P6 Outdoor LED Signs Moudle details :

1R1G1B Outdoor Advertising LED Display Billboard Fixed Installation For Advertising

1R1G1B Outdoor Advertising LED Display Billboard Fixed Installation For Advertising

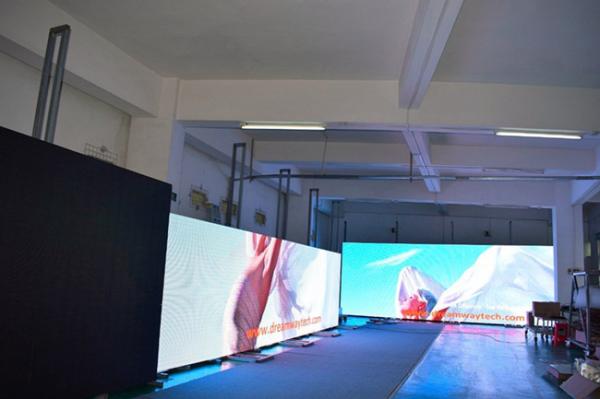

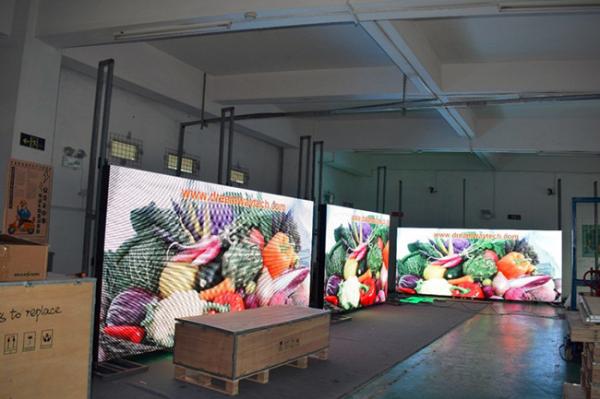

P6 Outdoor LED Signs Cabinet 768 × 768 mm :

1R1G1B Outdoor Advertising LED Display Billboard Fixed Installation For Advertising

P6 Outdoor LED Signs Cabinet 768 × 768 mm Back View :

1R1G1B Outdoor Advertising LED Display Billboard Fixed Installation For Advertising

P6 Outdoor LED Signs Package :

1R1G1B Outdoor Advertising LED Display Billboard Fixed Installation For Advertising

FAQ for our services:

FAQ / LED Display Warranty, LED Screen Pre-Sale and After-Sale Service,Sample for LED Display )

Q1: What’s the warranty of your LED Display Screen?

A1: We offer at least 1 year warranty and 100,000 hours life span of the led lamps.

Q2: What about your pre-sale service and after-sale service?

A2.1: For pre-sale service: we have professional consultants and 10 years average technicians to answer your questions and assist you during our workdays.

A2.2: For after-sale service: We can instruct you how to use,adjust the screens etc,we also focus on problem-solving efficiency. Usually within 24 hours.

Q3: How long will it take to deliver goods?

A3: We will start preparing goods when we get your bank receipt. It takes 20 days to be shipped out after we get your down payment.

Q4: Can i have a sample order for LED Display?

A4: Yes,it’s acceptable of sample order to test and check quality.Both for module or whole screen.

Q5: How do you ship the goods and how long does it take to arrive?

A5:Generally,we accept CIF or FOB trade term,depending on clients requirements. If shipping by sea,it takes around 15-60 days according to different destination ports. If by air, it takes about 3-8 days.
