Specifications
Brand Name :
Dreamway
Model Number :
P5
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
2000sq.m/Month
Delivery Time :
20 days after receiving the deposit
Packaging Details :
Flight case
Display function :
Video Multi-media
Screen dimension :
Customized
Tube chip color :
Full Color
Pixels :
5 mm
Usage :
indoor music show
Warranty :
1 Years
Application :
Live Events Led Display,stage rental
Led chip :
SMD 3528
Product name :
P5 LED panel
Description

P5 LED Panel Sports Event LED Screen on Rent with 40,000 dots/sq.m resolution

P5 LED Panel on Rent

Quick Detail:

1. 32 by 32 dots for one LED module;

2. 160 by 160 mm per module size;

3. 640 by 640 mm per cabinet;

4. 128 by 128 dots for each LED box;

5. 2PCS power supplies in one cabinet;

6. Hanging type die-casting aluminum.

Detail Description:

JS video processor, with high performance;

High definition reaches to 40,000 pixels per square meter;

Hanging system could be offered based on project.

Specifications:

Pixel Pitch

5mm

LED Composition

1R1G1B

LED Type

SMD3528

Pixel

40,000 dots/sq.m

Module Pixel

W 32 × H 32

Module Size

W 160 × H 160 mm

LED Box

Black / White / Other color

Cabinet Material

Die-casting aluminum

Driving Mode

1/8 scan constant current

Brightness

More than 3500 nits/sq.m

Refresh Rate

More than 1200Hz

Out of Control Dot Rate

<0.0001

Earth Leakage Current

<2mA

MTBF

>5,000 hours

Life Span

>100,000 hours

Power Source

110V/60HZ and 220V/50HZ interchangeable

Operation Software

NovaStudio

Control Method

Synchronization control

Input Signal

DVI, COMPOSITE VIDEO, S-VIDEO, HDMI

Indoor Rental LED Screen Application:

Widely used in stage rental, singing and dancing event evenings, various conferences, exhibitions,

stadiums, theaters, auditoriums, lecture halls, multi-purpose halls, conference rooms, interpretation

halls, di bars, night clubs, high-end entertainment discos, TV station Spring Festival Evening, auto

show, important cultural events in various provinces and cities.

FAQ:

1. How long could I receive the inquiry reply?

A: You will get a reply within 24 hours.

2. What kind of led display do you offer?

A: Different product offer different time frame warranty, but all product here we offer 1 year at least warranty

3. How is the after sales service?

A: We have a professional team which is in all around the world, also a service hot-line dealing with your

complains and feedback. We also offer 24-hour online service to help you solve problems

4. How long will it take to deliver goods?

A: We will start preparing goods when we get your bank receipt. The package will be shipped out in 1-2 working

days after we get your payment

Our service

1. Inquiries will be replied within 24 hours.

2. Market research and forecast for the customer.

3. Provide unique and professional solutions based on customer's requirement.

4. Datasheet and samples offered.

5. Other required services such as special packing design, factory visiting and so on.

6. Tracking producing procedures all the time.

7. Provide photos and videos as per customer's requirement during production.

8. Free spare parts provided.

9. Full set of documents free of charge, which including installation guidance, software operation manual.

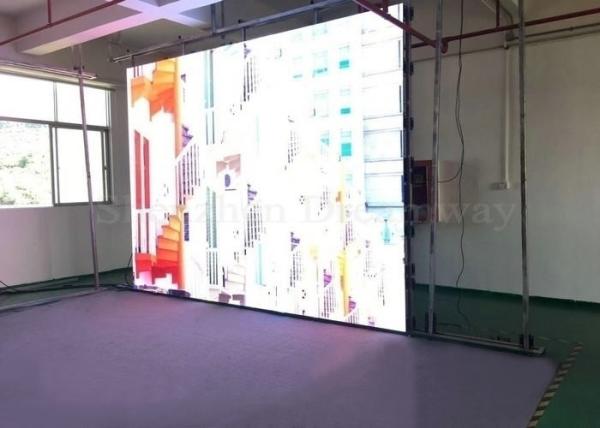

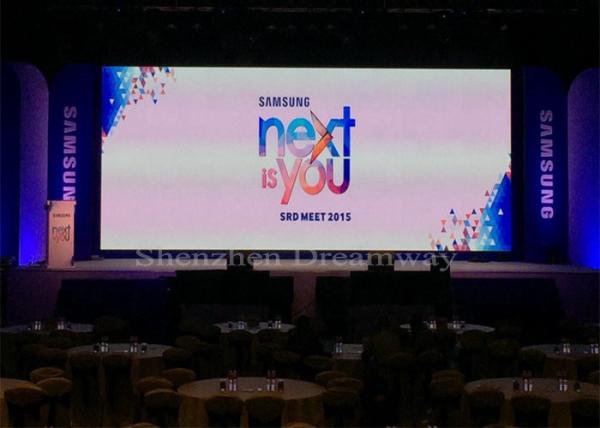

More Image of LED Screen Wall:

Sport Event

Sports Event Led Panel Screen Indoor P5 40000 Dots / Sqm Resolution 1 Year Warranty

LED Panel

Sports Event Led Panel Screen Indoor P5 40000 Dots / Sqm Resolution 1 Year Warranty
