5 mm Pixel Pitch Taxi LED display Customized Design LED Panel, LED Digital Signage
P5 Taxi LED Display Quick Detail:
1. 960 by 320 mm per side;
2. 192 by 64 pixels each face;
3. 3G / GPS control;
4. Geo-located ads;
5. Temperature controller included;
6. Video showing supported.
P5 Taxi LED Display Detail Description:
This is P5 taxi LED screen, with 960 × 320 mm per side, 192 × 64 pixels, about 23 kg/pc;
Temperature controller is added to turn on and off cooling fans at a specific temperature;
Time relay is equipped to turn on the device after some minutes when the engine is on.
Taxi LED Screen Application:
This is to be installed on taxi roof to show video, text, graphic, etc.
Specifications:
Type | PH5 |
Resolution | 40,000 dots/m2 |
LED Type | SMD3528 |
Drive IC | SM16106 |
LED Module (per face) | W 6 × H 2 = 12 pcs |
Module Pixel | W 32 × H 32 dots |
Module Size | W 160 × H 160 mm |
Screen Size (per face) | W 960 × H 320 mm |
Cabinet Measurement | W 1012 × H 401 × D 190 mm |
Cabinet Material | Aluminum made, galvanized iron base |
Colour | Black |
Weight | about 23 kg/pc |
Input Power | DC 12~24V |
Output Power | 5V |
Temperature Controller | Included |
Time Relay | Included |
Video Formats | MP4 |
Animation Formats | GIF, SWF |
Picture Formats | JPG, BMP, WMF |
Control Method | 3G / WIFI / GPS |
PC Solid Sheet | Included |
Package | Plywood case |
Our service
Pre-sale service:
1. Inquiries will be replied within 24 hours.
2. Market research and forecast for the customer.
3. Provide unique and professional LED display solutions based on customer's requirement.
4. Datasheet and LED display samples offered.
5. Other required services such as special LED screen packing design, factory visiting and so on.
In-sale service:
1. Tracking LED screen producing procedures all the time.
2. Provide LED videow all photos and videos as per customer's requirement during production.
3. Free LED panel spare parts provided.
After-sale service:
1. Complaint respond period not exceed 24 hours; LED video wall maintenance guidance and
problem solution supplied in 48 hours.
2. Warranty: 12-24 months.
3. Free LED panel technician training.
4. Full set of documents free of charge, which including LED panel installation guidance, software
operation manual, easy maintenance manual and control system software CD and so on.

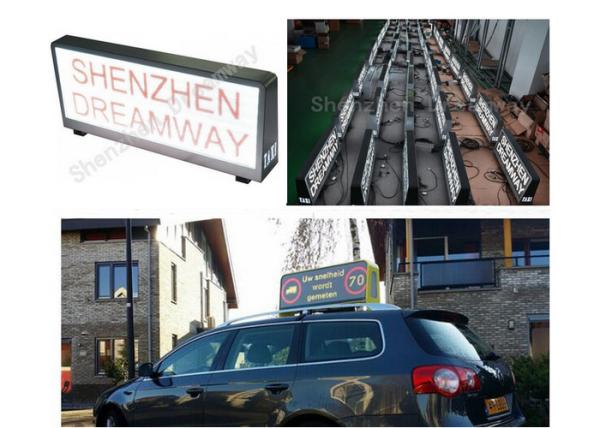

Taxi LED screen image:

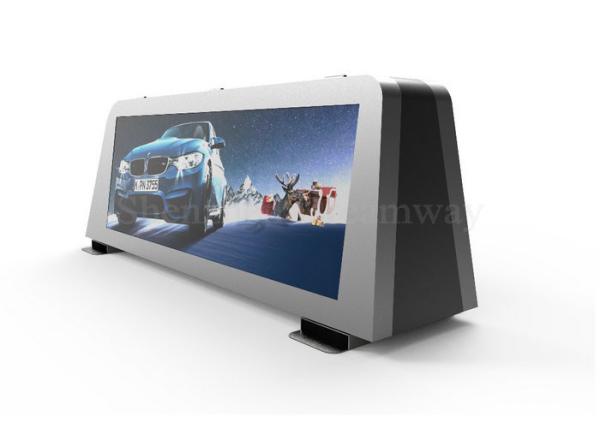

Taxi top LED display
Taxi LED screen package
