SMD 3535 Outdoor Advertising LED Display Panel Full Color P10 960*960mm With Hdmi
SMD 3535 Outdoor Advertising LED Display Panel Full Color P10 960*960mm With Hdmi
SMD 3535 Outdoor Advertising LED Display Panel Full Color P10 960*960mm With Hdmi
SMD 3535 Outdoor Advertising LED Display Panel Full Color P10 960*960mm With Hdmi
SMD 3535 Outdoor Advertising LED Display Panel Full Color P10 960*960mm With Hdmi
SMD 3535 Outdoor Advertising LED Display Panel Full Color P10 960*960mm With Hdmi
SMD 3535 Outdoor Advertising LED Display Panel Full Color P10 960*960mm With Hdmi
SMD 3535 Outdoor Advertising LED Display Panel Full Color P10 960*960mm With Hdmi
Specifications
Brand Name :
Dreamway
Model Number :
P10
Certification :
CE, ROHS
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
2000sq.m/Month
Delivery Time :
20 days after receiving the deposit
Packaging Details :
Plywood case
Usage :
Outdoor Advertising
Tube chip color :
RGB
Pixels :
10mm
Screen dimension :
5.76 by 2.88 m
Color :
Full Color
Led type :
SMD 3535
Description

P10 960*960 mm Led Panel Screen Outdoor Advertising LED Display with Hdmi


P10 Outdoor Advertisting LED Display Details:

P10, it is a 10mm pixel pitch, which means the two adjacent LED lamps distance is 10 mm.
Now as SMD technology occupies more than 90% for outdoor LED advertising, it is SMD3535
LED type for LED panel P10. The luminance we make for the P10 LED wall could reach to
more than 6,500 CD/m2, with Nationstar LED, 1/2 scan constant current. In theory, the
minimum view distance of the P10 type is 10 meters.

The specification of P10 Outdoor Advertisting LED Display:

TypeP10
LEDNationstar
LED TypeSMD3535
LED Module SizeW 320 × H 160 mm
LED Module PixeW 32 × H 16 dots
Cabinet SizeW 960 × H 960 mm
Power SupplyMeanwell RSP-320-5
Screen ResolutionW 576 × H 288 pixels
Drive Mode1/2 scan constant current
Refresh rate≥1,200 Hz
Luminance6,500 nits with testing by luminance colorimeter
PackagePlywood case


Application of Led Display Screen:

Full color LED display : Equally or compactly make the red, green, blue color in one dot, equally
distribute at the panel, so make the whole display.
Usually apply for physical sports, advertisement, bank, stock exchange, station, port, marketplace,
telecommunication, department, school, monitor, restaurant, entertainments.

FAQ:

Q1. What's the function of your led screen?

A1:It supports videos, flash, WAV/MIDI, PPT, images and so on.

Q2.How to install led display

A2:We will provide drawing of steel structure or hanging truss,then you can install led display very easy.

Q3. How to order LED display?

A3:Please tell me indoor or outdoor do you need,size of led display,where will be application of led display.

Detailed image:

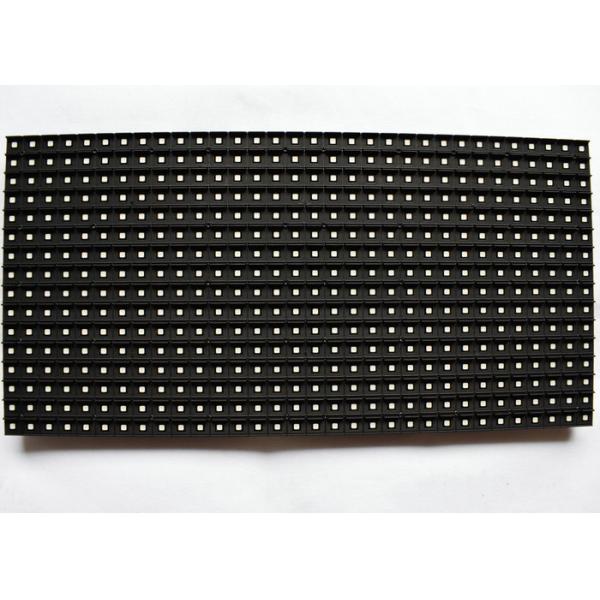

LED module
SMD 3535 Outdoor Advertising LED Display Panel Full Color P10 960*960mm With Hdmi

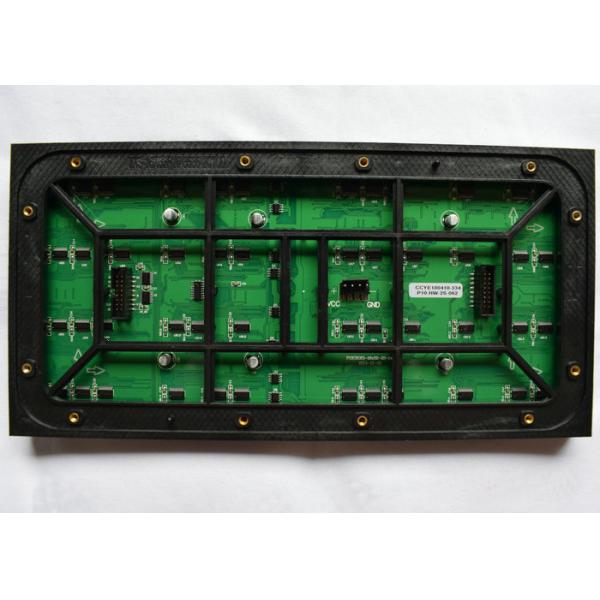

LED module back view
SMD 3535 Outdoor Advertising LED Display Panel Full Color P10 960*960mm With Hdmi

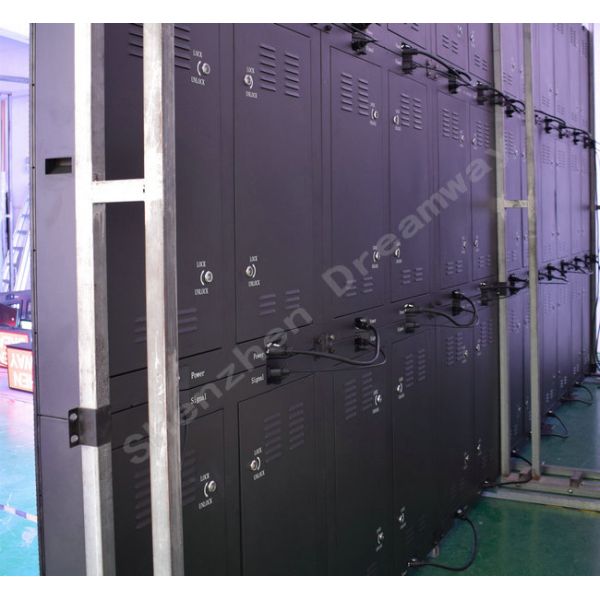

LED screen bak view
SMD 3535 Outdoor Advertising LED Display Panel Full Color P10 960*960mm With Hdmi

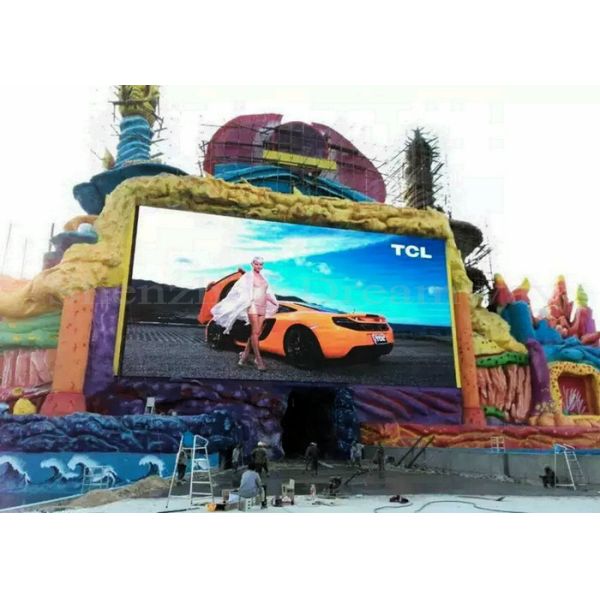

Applicaiton
SMD 3535 Outdoor Advertising LED Display Panel Full Color P10 960*960mm With Hdmi
