40w 60 w Energy Save Outdoor LED Advertising Screens P5 mm SMD2727
40w 60 w Energy Save Outdoor LED Advertising Screens P5 mm SMD2727
40w 60 w Energy Save Outdoor LED Advertising Screens P5 mm SMD2727
40w 60 w Energy Save Outdoor LED Advertising Screens P5 mm SMD2727
40w 60 w Energy Save Outdoor LED Advertising Screens P5 mm SMD2727
40w 60 w Energy Save Outdoor LED Advertising Screens P5 mm SMD2727
40w 60 w Energy Save Outdoor LED Advertising Screens P5 mm SMD2727
40w 60 w Energy Save Outdoor LED Advertising Screens P5 mm SMD2727
Specifications
Brand Name :
Dreamway
Model Number :
P5
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
2000sq.m/Month
Delivery Time :
20 days after receiving the deposit
Packaging Details :
Plywood case
Model :
PH5
LED :
Nationstar
LED Module :
160 × 160 mm
Cabinet :
960 × 960 mm
Material :
Iron
Usage :
Outdoor Waterproof Advertising Display
Pixels :
5mm
Screen dimension :
Customized
Description



40w 60 w Energy Save Outdoor LED Advertising Screens P5 mm SMD2727


Detail Description:

This is SMD2727 LED, Nationstar brand, with about 7,000 high brightness;
The whole screen size is 7.68 by 1.92 m, 1536 by 384 pixels in total;
Each cabinet is equipped with 2 pcs fans for good ventilation.


Application:

Such outdoor LED display screen is for outdoor advertising, like installed on wall, shopping mall, etc.


Specifications:

Pixel Pitch

5 mm

LED Type

SMD2727

LED Composition

1R 1G 1B

Screen Size

W 7.68 × H 1.92 m

Resolution

W 1536 × H 384 pixels

Module Size

W 160 × H 160 mm

Cabinet Size

W 640 × H 960 × D 145 mm

Cabinet Weight

25 kg/pc

Cabinet Material

Iron waterproof cabinet with back door

LED Module Quantity

W 48 × H 12 = 576 pcs

Cabinet Quantity

W 12 × H 2 = 24 pcs

Best Viewing Distance

5 ~ 60 m

Driving Mode

1/8 scan constant current

Luminance

7,000 nits

View angle

120 degrees

Power and Signal Connector

Linko

Power Supply

88 ~ 264VAC

Brand

Meanwell

Control Card

Novastar

Warranty

2 years

Outdoor LED Video Wall Types

Now many outdoor LED video wall types are applied widely in daily lives, to bring much more

vivid colors to the world. You may wonder what is an LED display. In a nutshell, it is a kind of FPD

(Flat-Panel Display), made up of many pieces of LED modules, to display texts, images, videos, etc.

At the moment, there is P3, P4, P5, P6, P8, P10 outdoor types for fixed LED display.

Our service

1. Inquiries will be replied within 24 hours.

2. Market research and forecast for the customer.

3. Provide unique and professional solutions based on customer's requirement.

4. Datasheet and samples offered.

5. Other required services such as special packing design, factory visiting and so on.

6. Tracking producing procedures all the time.

7. Provide photos and videos as per customer's requirement during production.

8. Free spare parts provided.

9. Full set of documents free of charge, which including installation guidance, software operation manual.

Deatiled image:

LED Cabinet

40w 60 w Energy Save Outdoor LED Advertising Screens P5 mm SMD2727

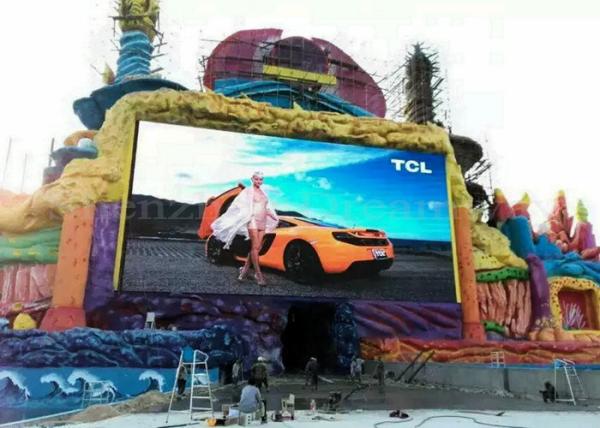

Outdoor LED Display Application

40w 60 w Energy Save Outdoor LED Advertising Screens P5 mm SMD2727

40w 60 w Energy Save Outdoor LED Advertising Screens P5 mm SMD2727

LED Screen Package

40w 60 w Energy Save Outdoor LED Advertising Screens P5 mm SMD2727
