5 mm pixel pitch Outdoor LED Panel Screen for Stage, Concert, Party Rental
P5 Outdoor Screen Quick Detail:
1. Nationstar LED;
2. SMD2525;
3. 640 × 640 mm cabinet size;
4. Die-casting aluminum cabinet;
6. Flight case package.
P5 Outdoor Screen Specifications:
Pixel Pitch | 5 mm |
LED Type | SMD2525 |
LED Composition | 1R 1G 1B |
Module Resolution | W 64 × H 32 pixels |
Module Size | W 320 × H 160 mm |
Cabinet Size | W 640 × H 640 × D 95 mm |
Cabinet Weight | 9 kg/pc |
Cabinet Material | Die-casting aluminum cabinet with back door |
Best Viewing Distance | 5 ~ 60 m |
Driving Mode | 1/8 scan constant current |
Luminance | 5,000 nits |
View angle | 120 degrees |
Power and Signal Connector | Linko |
Power Supply | 220 V |
Brand | Chuanglian |
Control Card | Novastar |
Warranty | 1 years |
What is rental screen:
LED rental screens now are widely used in stage show, concert, theater, party, and other entertainment event
as background, it can be live show and replay, and it’s so big that audience far away from the stage can see
the performance on the stage clearly, creating a magnificent , highly infectious atmosphere, combined with
high-quality sound, giving a perfect visual feast.
LED display advantage:
Short response time.
Adapt to frequent switching and high frequency operation.
Long service life.
Its life can reach 100,000 hours in normal use.
High safety.
Adopt low voltage dc supply, normal working voltage is 5 V.
Stable performance.
Minimum scrap rate in normal use within 10 years, no maintenance required in normal use for about 5 years.
FAQ:
1. How long could I receive the inquiry reply?
A: You will get a reply within 24 hours.
2. What kind of led display do you offer?
A: Different product offer different time frame warranty, but all product here we offer 1 year at least warranty
3. How is the after sales service?
A: We have a professional team which is in all around the world, also a service hot-line dealing with your
complains and feedback. We also offer 24-hour online service to help you solve problems
4. How long will it take to deliver goods?
A: We will start preparing goods when we get your bank receipt. The package will be shipped out in 1-2
working days after we get your payment
More image:
P5 Outdoor LED screen module
LED screen flight case package

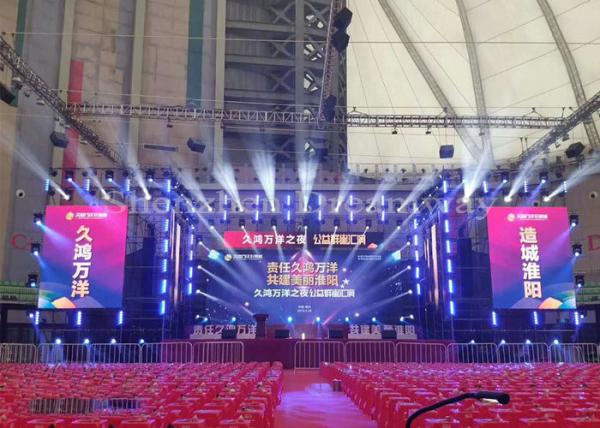

Outdoor screen application
