Specifications
Brand Name :
Dreamway
Model Number :
P16
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
2000sq.m/Month
Delivery Time :
20 days after receiving the deposit
Packaging Details :
Plywood case
Name :
Staduim LED Display
Color :
Full Color
LED Type :
DIP546
Warranty :
1 Years
Usage :
Advertising, Video
LED Composition :
1R1G1B
Description



Indoor&Outdoor Use Stadium LED Display PH16 Led Message Light Box

Quick Detail:

1. All is Epistar LED;
2. JXI5020 LED drive IC;
3. More than 7500 nits per square meter;
4. 1R1G1B composition;
5. 16 by 16 dots per LED module;
6. 256 by 256 mm module size.


Detail Description:

Cabinet dimension could be 1024×768 mm or 1024×1024 mm;
Meanwell UL standard power supply with 5V60A;
Multifunctional card for automatic brightness control.


Application:

The full-color LED display has a strong visual impact, an ultra-clear surface and a huge shock. There is no

obvious strong advertising charm! It is conducive to the shaping and dissemination of brand image. Many

large screens are local landmarks and are themselves a good advertisement.

It is used for soccer or football stadium for live broadcasting matches report.


Specifications:

Pixel Pitch

16mm

Pixel Composition

1R1G1B

LED Type

DIP546

Resolution

3,906 dots/sq.m

LED Module Pixel

W 16 × H 16 = 256 dots

LED Module Size

W 256 × H 256 mm

Cabinet Material

Steel waterproof cabinet

Driving Method

Static scan

Brightness

≥7500 nits/sq.m

Refresh Rate

≥1200 Hz

Out of Control Dot Rate

＜0.0001

Earth Leakage Current

＜2mA

MTBF

＞5,000 hours

Life Span

＞100,000 hours

Power Supply

110V/60HZ and 220V/50HZ interchangeable

Humidity

10%~90%

Control Method

Synchronization control

Input Signal

DVI, COMPOSITE VIDEO, S-VIDEO, HDMI


FAQ:

1. How long could I receive the inquiry reply?

A: You will get a reply within 24 hours.

2. What kind of led display do you offer?

A: Different product offer different time frame warranty, but all product here we offer 1 year at least warranty

3. How is the after sales service?

A: We have a professional team which is in all around the world, also a service hot-line dealing with your

complains and feedback. We also offer 24-hour online service to help you solve problems

4. How long will it take to deliver goods?

A: We will start preparing goods when we get your bank receipt. The package will be shipped out in 1-2 working

days after we get your payment

Detailed image:

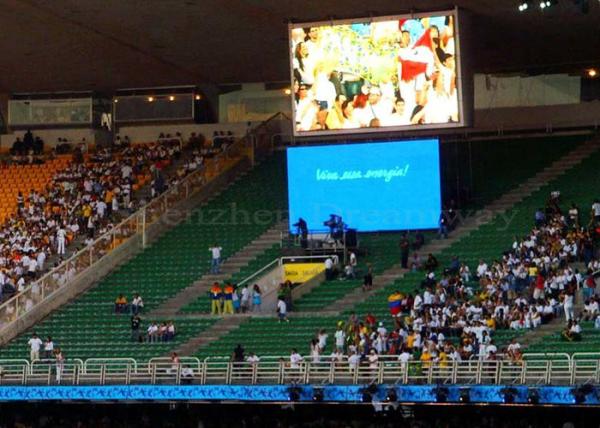

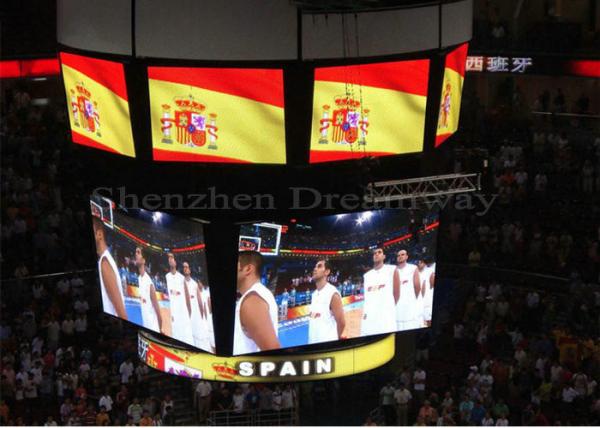

Application of LED Screen

Indoor / Outdoor Stadium LED Display PH16 Led Message Light Box 1 Year Warranty

Indoor / Outdoor Stadium LED Display PH16 Led Message Light Box 1 Year Warranty
