P2 P3 P4 P5 P6 Stage Event Use LED Screen Wall Rental with Video Processor
P5 LED Screen Wall Quick Detail:
1. 32 by 32 dots for one LED module;
2. 160 by 160 mm per module size;
3. 640 by 640 mm per cabinet;
4. 128 by 128 dots for each LED box;
5. 2PCS power supplies in one cabinet;
6. Hanging type die-casting aluminum.
P5 LED Screen Wall Detail Description:
JS video processor, with high performance;
High definition reaches to 40,000 pixels per square meter;
Hanging system could be offered based on project.
Application:
It is installed in concert, stage, wedding, etc for live broadcasting.
P5 LED Screen Wall Specifications:
Pixel Pitch | 5mm |
LED Composition | 1R1G1B |
LED Type | SMD3528 |
Pixel | 40,000 dots/sq.m |
Module Pixel | W 32 × H 32 |
Module Size | W 160 × H 160 mm |
LED Box | Black / White / Other color |
Cabinet Material | Die-casting aluminum |
Driving Mode | 1/8 scan constant current |
Brightness | More than 3500 nits/sq.m |
Refresh Rate | More than 1200Hz |
Out of Control Dot Rate | <0.0001 |
Earth Leakage Current | <2mA |
MTBF | >5,000 hours |
Life Span | >100,000 hours |
Power Source | 110V/60HZ and 220V/50HZ interchangeable |
Operation Software | NovaStudio |
Control Method | Synchronization control |
Input Signal | DVI, COMPOSITE VIDEO, S-VIDEO, HDMI |
Feature of Rental LED Screen Wall:
LED rental screens can easily installed and removed, also easy to transport. LED rental screens now are
widely used in stage show, concert, theater, party, and other entertainment event as background, it can be live
show and replay, and it’s so big that audience far away from the stage can see the performance on the stage
clearly, creating a magnificent , highly infectious atmosphere, combined with high-quality sound, giving a perfect visual feast.
FAQ:
1. How long could I receive the inquiry reply?
A: You will get a reply within 24 hours.
2. What kind of led display do you offer?
A: Different product offer different time frame warranty, but all product here we offer 1 year at least warranty
3. How is the after sales service?
A: We have a professional team which is in all around the world, also a service hot-line dealing with your
complains and feedback. We also offer 24-hour online service to help you solve problems
4. How long will it take to deliver goods?
A: We will start preparing goods when we get your bank receipt. The package will be shipped out in 1-2 working
days after we get your payment

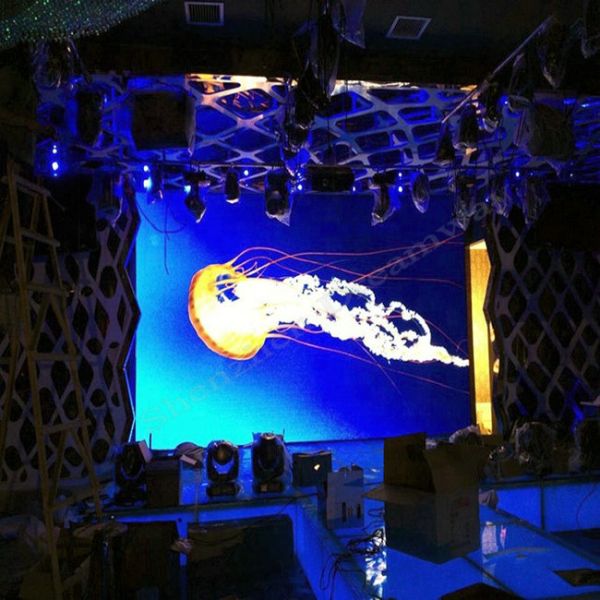

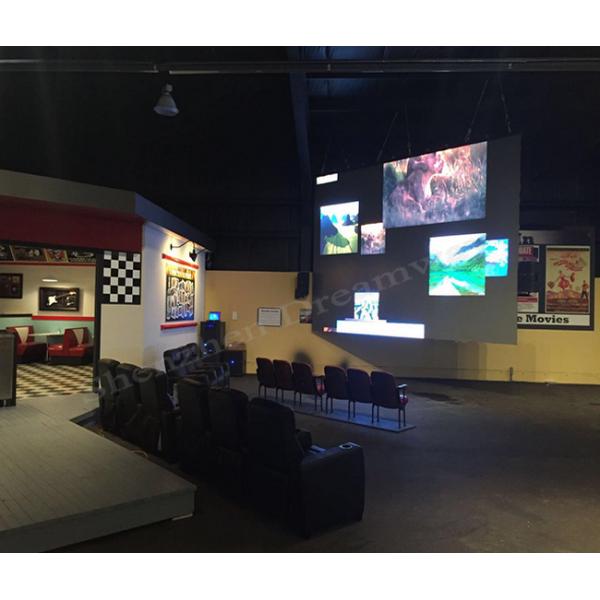

LED Screen Wall Image:
