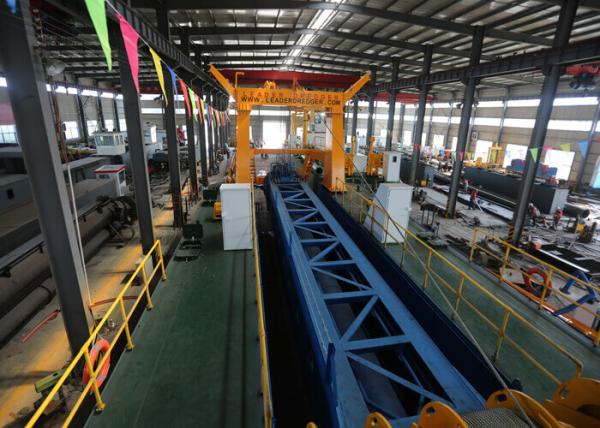

Big Size 24 Inch 5500m³ / H Cutter Suction Dredger / Dredging Equipment
Big Size 24 Inch 5500m³ / H Cutter Suction Dredger / Dredging Equipment
Specifications
Brand Name :
Leader Dredger
Model Number :
LD5500
Certification :
ISO 9001
Place of Origin :
China
MOQ :
One Dredger
Price :
Free Consultation
Payment Terms :
L/C, T/T
Supply Ability :
20
Delivery Time :
Peak season lead time: 1-3 months ; Off season lead time: 1-3 months
Packaging Details :
In Container Or Bulk Vessel
Type :
Inboard Cutter Suction Dredger
Power Type :
Diesel
Inch :
22 - 24Inch
Dredging depth (m) :
16
Main engine power (kw) :
1293
Auxiliary engine power (kw) :
447
Pipe diameter (mm) :
600
Application :
Beach Dredging, Port Dredging
Customized :
Customized
Condition :
New
Description

Big Size Sea Sand Dredger 24 Inch 5500m³H Cutter Suction Dredger Dredging Equipment

1. About Leader Dredger

Leader Dredger has long-term cooperation with more than ten design institutes in China, equipped with professional designers
With nearly 20 years of production experience, it is sold to more than 20 countries in the world. Have a thorough understanding of the equipment requirements under different working conditions, and know how to produce ships suitable for customer working conditions.

With nearly 20 years of production experience, we have accumulated a lot of production experience. Our dredgers are sold to more than 20 different countries in the world.

Leader Dredger has a total production of more than 100 dredgers. Through different construction environments, we continuously improve our products.

Professional after-sales service, with professional staff to answer your questions 24 hours.

2. Our Service

1. Provide pre-sales consulting and design services, and provide solution support for customers according to their working conditions and needs.

2. Before the sale, we will provide the customer with a construction environment survey form, which will allow us to understand your construction 3. environment and recommend a more ideal dredger model for you.

4. Provide configuration recommendations based on customer requirements

5. Leader Dredger provides professional installation services, commissioning, driver training

6. One year after sales service for Dredger Leader Dredger

7. Provide permanent accessories and consulting services

3. LEADER DREDGER LD5500IP TECHNICAL SPECIFICATIONS

General
Type LD4500IP
Function Sand mining and maintenance dredging

Dredging Features
Standard dredging depth(m) Maximum mixture 16m
capacity(m/h) 5500m³/h
Solid capacity(approx) 1350m³/h
Dredging pump mode 650/600mm(26"/24")

Principal characteristics
Overall length(m) 41m
Breadth(m) 8.3m
Draught(m) 1.8m
Discharge distance(m) 1800m
Total dry weight approx(MT) 2250MT
Ladder length 22.6m

Dredge pump: Australia technology Pump
By alloy cast iron material for better abrasion resistance, abrasive, hardness, more than68HRC. Bigger working capacity, more efficiency, driven through gearbox.
Maximum mixture capacity(m/h) 5500m³/h
Solid capacity(approx) 1350m³/h

Engine
Main diesel engine(Cummins) Cummins KTA50-M2 1342KW
Auxlary engine Cummins KTA19-M3 373KW
Total fuel consumption

≤240kg/hr
Extra emergency generator set 30kw(40Hp)

Cutter
Power at shaft 230kw(308Hp)
Size 1800mm
Rotation speed 30rpm

Winches
Ladder winch 1urnit
Swing winches 2units
All winches driven by independent hydraulic system.

Spuds
Quantity 2pcs
Length 21m
Diameter 610mm

Deck crane
Utting weight 3MT

4. Product Application

Cutter suction dredger is flexible to most kinds of geologic structures and can be widely used in diamond mining, port(channel) dredging and reclamation works. Diesel engine or electric hydraulic control, easy to use.It is one of the most advanced engineering ship.Cutter-suction dredger dig deep 4 to 15 meters, row distance is 200-1500 meters, clear water flow 800-5000 cubic meters per hour.

5. Customizable Production

1. Can be equipped with double-level operation room, rest room, bathroom, etc.
2. Propeller propellers can be equipped as required to enable dredgers to automatically sail for short distances.
3. Intercom, depth gauge, etc. can be selected according to customer preferenceanti-corrosion function.
