High Performance Hydraulic Sand Dredging Machine In River/ Lake / Port / Sea
High Performance Hydraulic Sand Dredging Machine In River/ Lake / Port / Sea
Specifications
Brand Name :
Leader Dredger
Model Number :
LD1200
Certification :
ISO 9001
Place of Origin :
China
MOQ :
One Dredger
Price :
Free Consultation
Payment Terms :
L/C, T/T
Supply Ability :
20
Delivery Time :
Peak season lead time: 1-3 months ; Off season lead time: 1-3 months
Packaging Details :
In Container Or Bulk Vessel
Type :
Cutter Suction Dredger
Power Type :
Diesel
Inch :
12 ~ 14Inch
Dredging depth (m) :
14
Main engine power (kw) :
601
Auxiliary engine power (kw) :
160
Pipe diameter (mm) :
350
Application :
River Dredging, Lake Dredging
Customized :
Customized
Condition :
New
name :
sand dredging equipment
Description

Hydraulic Cutter Suction Dredger For Sand Dredging In River Lake Port Sea

I. Cutter Suction Dredge Application:


1. Sand Dredging


2. Mud Dredging Equipment


3. Construction Dredging


4. Mining Dredging


5. Environmental Dredging

2. About Leader Dredger Cutter Suction Dredger

The cutter suction dredger designed by Leader Dredger adopts modular assembly, which saves assembly time and is more convenient for transportation. This ingenious design is now imitated by the manufacturer of more dredgers.

Leader Dredger is very focused on the design of the cab. The simple operation allows the driver to use the dredger more professionally, reducing unnecessary losses caused by the driver. So now the Leader Dredger's driving system only needs one person to complete the operation of the whole ship, which is very convenient.

The hydraulic system of the whole ship is also a feature of cutter suction dredger, through which the dredger equipment can be controlled more conveniently.

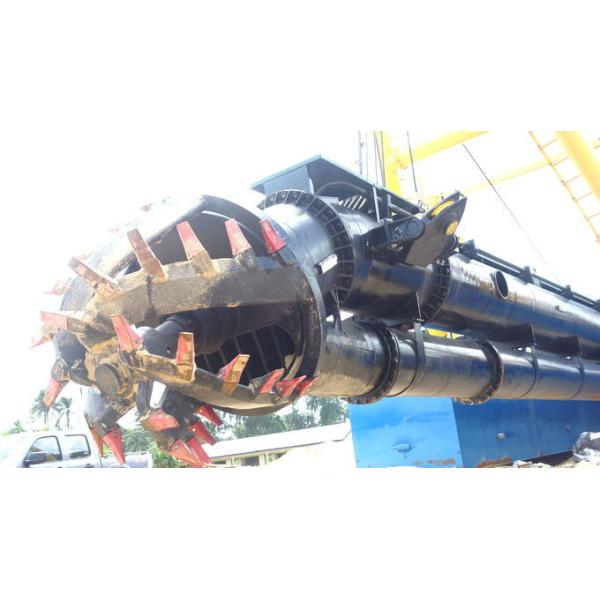

3. Cutter Suction Dredger Parts

High Performance Hydraulic Sand Dredging Machine In River/ Lake / Port / Sea

5. Hydraulic System: German Brand Hydraulic Parts:

To drive: 1 cutter header, 1 ladder winch, 2 side winches,2 spud rams, 2 hydraulic pumps, and a lot of hydraulic valves The extra emergency pump can drive all hydraulic parts using the extra emergency generator set.

6. LEADER DREDGER LD1200IP TECHNICAL SPECIFICATIONS

Dredging Features
Standard dredging depth(m) Maximum mixture 12m
capacity(m/h) 1200m³/h
Solid capacity(approx) 240m³/h
Dredging pump mode 350/300mm

Principal characteristics
Overall length(m) 28m
Breadth(m) 6.8m
Draught(m) 1.3m
Discharge distance(m) 700m
Total dry weight approx(MT) 120MT
Ladder length 16m

Dredge pump: Australia technology Pump
By alloy cast iron material for better abrasion resistance, abrasive, hardness, more than68HRC. Bigger working capacity, more efficiency, driven through gearbox.
Maximum mixture capacity(m/h) 1200m³/h
Solid capacity(approx) 240m³/h

Engine
Main diesel engine(Cummins)

448kw(600hp)

supply power for dredge pump
Total fuel consumption ≤89kg/hr
Extra emergency generator set 22kw(30Hp)

7. Electric System:

European-brand electricsystem Very guaranteed the quality and operation of the whole dredger for long time
Equipped with an extra 30kw emergency generator set for emergency power supply

8. Include:

All necessary tools for connecting or disconnecting the
pontoons, and for the maintenance of the dredge pump and all
engines
Toile
Fire fighting apparatus
Life buoy and jackets
Accommodation room

9. Production time:

Operators cabin and living room


Available in stock, or 120-160 working days if not available.

10. Leader Dredger Customer

High Performance Hydraulic Sand Dredging Machine In River/ Lake / Port / Sea

11. Packing & Delivery

High Performance Hydraulic Sand Dredging Machine In River/ Lake / Port / Sea

12. Cutter Suction Dredger Picture

High Performance Hydraulic Sand Dredging Machine In River/ Lake / Port / Sea
