4500cbm/Hr Cutter Suction Dredger For River, Sea Sand And Land Reclamation
4500cbm/Hr Cutter Suction Dredger For River, Sea Sand And Land Reclamation
Specifications
Brand Name :
Leader Dredger
Model Number :
LD4500
Certification :
ISO 9001
Place of Origin :
China
MOQ :
One Dredger
Price :
Free Consultation
Payment Terms :
L/C, T/T
Supply Ability :
20
Delivery Time :
Peak season lead time: 1-3 months ; Off season lead time: 1-3 months
Packaging Details :
In Container Or Bulk Vessel
Type :
Cutter Suction Dredger
Power Type :
Diesel
Inch :
20 ~ 22 Inch
Dredging depth (m) :
15
Main engine power (kw) :
955
Auxiliary engine power (kw) :
325
Pipe diameter (mm) :
500
Application :
Pond Dredging, Lake Dredging
Customized :
Customized
Condition :
New
Machinery Test Report: :
Provided
Warranty of core components: :
1 Year
Condition: :
New
Control System: :
Hydraulic Control System
Marketing Type: :
Hot Product 2020
Core Components: :
PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
After-sales Service Provided: :
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
Work site: :
River/Port/Lake/Coastal Area
Operation System: :
Siemens System
Options: :
anchor boom, spud carriage, swivel pipe, etc.
Description

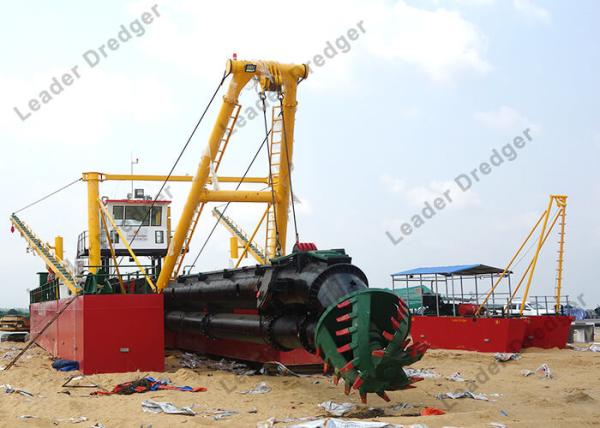

4500cbm/Hr Cutter Suction Dredger For River, Sea Sand And Land Reclamation

1. About Leader Dredger Cutter Suction Dredger:

1. CCS ISO9001:2008 Certificate;

2. The cutter suction dredger ship is a kind of dismountable cutter suction dredger and non-propelled;

3. The cutter is directly driven by one low speed hydraulic motor;

4. The two spuds are operated by means of a hydraulic ram;

5. Oil for the hydraulic system is supplied by vane pumps.

4500cbm/Hr Cutter Suction Dredger For River, Sea Sand And Land Reclamation

2. Cutter Suction Dredger Introduction:

1. Cutter suction dredger is a kind of dredging equipment used for riverbed dredging, port dredging or canal construction projects.

2. The equipment adopts a front cutter head design, driven by a motor, which mixes sand and water.

3. There is a suction pipe behind the cutter head connected with the mud pump on the deck.

4. The marine diesel engine drives the mud pump to transport the mud-water mixture to the shore or recovery area.

5. In order to keep the dredger stable and working in the water, a pile made of two long steel pipes is vertically installed at the tail of the dredger. The stakes work like two legs and are rooted in the river bed driven by hydraulic cylinders. It can provide the supporting force when the front cutter head swinging arm is working.

4500cbm/Hr Cutter Suction Dredger For River, Sea Sand And Land Reclamation

3. Leader Dredger LD4500 Cutter Suction Dredger Technical Specifications

A . Dredging Features

Standard dredging depth(m) 15m
Maximum mixture capacity(m/h) 4500m³/h
Solid capacity(approx) 900m³/h
Dredging pump mode 550/500mm

B . Principal characteristics

Overall length(m) 38.5m
Breadth(m) 7.8m
Draught(m) 1.3m
Discharge distance(m) 2000m
Total dry weight approx(MT) 200MT
Ladder length 21m

C . Dredge pump: Australia technology Pump

By alloy cast iron material for better abrasion resistance, abrasive, hardness, more than68HRC. Bigger working capacity, more efficiency, driven through gearbox.
Maximum mixture capacity(m/h) 4500m³/h
Solid capacity(approx) 900m³/h


D . Engine

Main diesel engine(Cummins) CAT 3512C 955kw
Auxilary engine CAT C9.3 325KW
Total fuel consumption ≤205kg/hr
Extra emergency generator set 30kw(40Hp)

4. Cutter Suction Dredger Desgin

1. Hydraulic pumps drive cutter, winches spud rams


2. Main engine drives pump through gearbox


3. Pump inside engineroom


4. Design of high production long distance and reliability, easy control, simple maintenance


5. Australian technology pump


6. Famous European-brand electric system and hydraulic system


7. Engine room big and cool, and easy to maintain


8. Dredge can be equipped with several options


9. Such as:Anchor booms/Spud carriages/Increasing The Dredging Depth


10. Self-Propell/Pump Booster station/GPS dredging System

4500cbm/Hr Cutter Suction Dredger For River, Sea Sand And Land Reclamation

5. Hydraulic System: German Brand Hydraulic Parts:

To drive: 1 cutter header, 1 ladder winch, 2 side winches,2 spud rams, 2 hydraulic pumps, and a lot of hydraulic valves The extra emergency pump can drive all hydraulic parts using the extra emergency generator set.

4500cbm/Hr Cutter Suction Dredger For River, Sea Sand And Land Reclamation

6.Leader Dredger Cutter Suction Dredger Customer

4500cbm/Hr Cutter Suction Dredger For River, Sea Sand And Land Reclamation

7. LD4500 Cutter Suction Dredger

4500cbm/Hr Cutter Suction Dredger For River, Sea Sand And Land Reclamation
