Alloy Cast Iron Pump 15m Sand Dredging Equipment With Winches Spud Rams
Alloy Cast Iron Pump 15m Sand Dredging Equipment With Winches Spud Rams
Specifications
Brand Name :
Leader Dredger
Model Number :
LD4500
Certification :
ISO 9001
Place of Origin :
China
MOQ :
One Dredger
Price :
Free Consultation
Payment Terms :
L/C, T/T
Supply Ability :
20
Delivery Time :
Peak season lead time: 1-3 months ; Off season lead time: 1-3 months
Packaging Details :
In Container Or Bulk Vessel
Type :
Cutter Suction Dredger
Power Type :
Diesel
Inch :
20 ~ 22 Inch
Dredging depth (m) :
15
Main engine power (kw) :
955
Auxiliary engine power (kw) :
325
Pipe diameter (mm) :
500
Application :
Pond Dredging, Lake Dredging
Customized :
Customized
Condition :
New
Machinery Test Report: :
Provided
Warranty of core components: :
1 Year
Condition: :
New
Control System: :
Hydraulic Control System
Marketing Type: :
Hot Product 2020
Core Components: :
PLC, Engine, Bearing, Gearbox, Motor, Gear, Pump
After-sales Service Provided: :
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
Work site: :
River/Port/Lake/Coastal Area
Operation System: :
Siemens System
Options: :
anchor boom, spud carriage, swivel pipe, etc.
Description

Dredging Depth: 15m Of Suction Dredger Sand Dredging Equipment Easy To Transport And Quality Service

1. About Leader Dredger Suction Dredger:

The dredger we produce is self-propelled or non self-propelled, portable dredger ship. The hull uses dismantle and box-like structure, which equipped with horizontal shifting devices, cutter ladder lifting devices, spud devices, deck crane and so on. It can also be equipped with anchoring poles and trolley devices. Generally, it has functions on dredging, conveying and discharging of mud and sand. It can produce certain amount of vacuum by the centrifugal pump.

1. Leader Dredger dredger is adaptable. dredger ships can be widely used in rivers, lakes, oceans, reservoirs, etc. for sand and mud dredging, waterway cleaning and reclamation projects.

2. High efficiency. dredger ship can dredge and discharge sand at the same time, without the need for other vessels to transport. Therefore, the cost will be greatly reduced, they can reach a large production capacity of several thousand cubic meters per hour and a discharge distance of several kilometers.

3. Dredger is easy to operate. With the help of hydraulic system and PLC control system, all dredger operations can be completed in the operation room.

4. Quick disassembly and assembly.

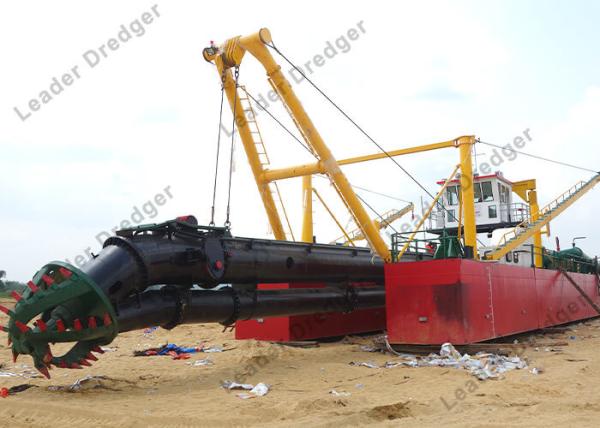

Alloy Cast Iron Pump 15m Sand Dredging Equipment With Winches Spud Rams

2. Why Choose Leader Dredger Suction Dredger:

1. Our factory can provide customers with long-term after-sales service and free spare parts

2. Our factory can provide an experienced installation team to install and train local workers

3. We can choose reasonable and practical equipment according to customer requirements

4. We can provide professional and fast solutions to any problem

5. We have professional technicians to follow up with customers regularly

6. We can sign various agreements to ensure customer rights

Alloy Cast Iron Pump 15m Sand Dredging Equipment With Winches Spud Rams

3. Leader Dredger LD4500 Suction Dredger Technical Specifications

A . Dredging Features

Standard dredging depth(m) 15m
Maximum mixture capacity(m/h) 4500m³/h
Solid capacity(approx) 900m³/h
Dredging pump mode 550/500mm

B . Principal characteristics

Overall length(m) 38.5m
Breadth(m) 7.8m
Draught(m) 1.3m
Discharge distance(m) 2000m
Total dry weight approx(MT) 200MT
Ladder length 21m

C . Dredge pump: Australia technology Pump

By alloy cast iron material for better abrasion resistance, abrasive, hardness, more than68HRC. Bigger working capacity, more efficiency, driven through gearbox.
Maximum mixture capacity(m/h) 4500m³/h
Solid capacity(approx) 900m³/h


D . Engine

Main diesel engine(Cummins) CAT 3512C 955kw
Auxilary engine CAT C9.3 325KW
Total fuel consumption ≤205kg/hr
Extra emergency generator set 30kw(40Hp)

4. Suction Dredger Desgin

1. Hydraulic pumps drive cutter, winches spud rams


2. Main engine drives pump through gearbox


3. Pump inside engineroom


4. Design of high production long distance and reliability, easy control, simple maintenance


5. Australian technology pump


6. Famous European-brand electric system and hydraulic system


7. Engine room big and cool, and easy to maintain


8. Dredge can be equipped with several options


9. Such as:Anchor booms/Spud carriages/Increasing The Dredging Depth


10. Self-Propell/Pump Booster station/GPS dredging System

Alloy Cast Iron Pump 15m Sand Dredging Equipment With Winches Spud Rams

5. Hydraulic System: German Brand Hydraulic Parts:

To drive: 1 cutter header, 1 ladder winch, 2 side winches,2 spud rams, 2 hydraulic pumps, and a lot of hydraulic valves The extra emergency pump can drive all hydraulic parts using the extra emergency generator set.

Alloy Cast Iron Pump 15m Sand Dredging Equipment With Winches Spud Rams

6.Leader Dredger Suction Dredger Customer

Alloy Cast Iron Pump 15m Sand Dredging Equipment With Winches Spud Rams

7. LD4500 Suction Dredger

Alloy Cast Iron Pump 15m Sand Dredging Equipment With Winches Spud Rams
