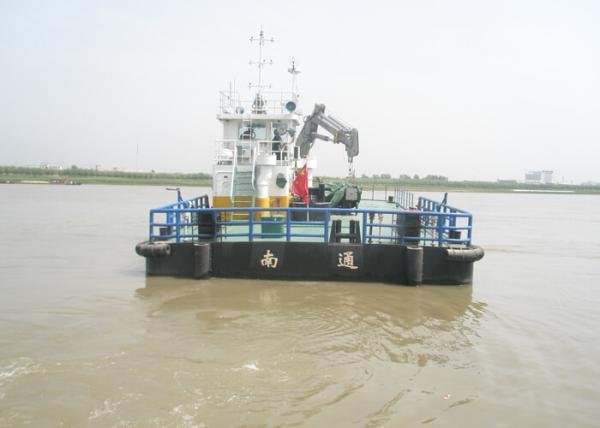

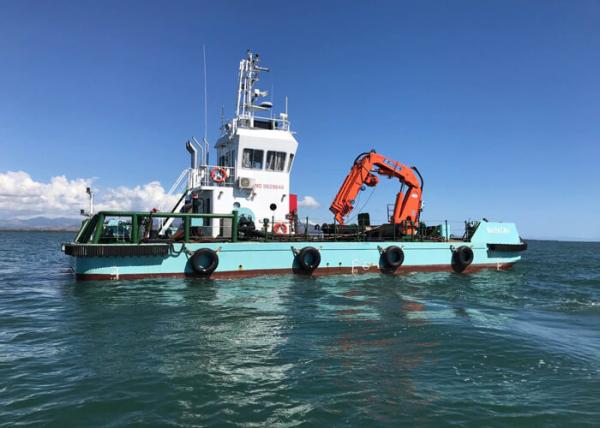

MC1500 Multi Cat Service Boat 40 T Bollard Pull 8 Knots Speed DC 24V
MC1500 Multi Cat Service Boat 40 T Bollard Pull 8 Knots Speed DC 24V
MC1500 Multi Cat Service Boat 40 T Bollard Pull 8 Knots Speed DC 24V
MC1500 Multi Cat Service Boat 40 T Bollard Pull 8 Knots Speed DC 24V
MC1500 Multi Cat Service Boat 40 T Bollard Pull 8 Knots Speed DC 24V
MC1500 Multi Cat Service Boat 40 T Bollard Pull 8 Knots Speed DC 24V
MC1500 Multi Cat Service Boat 40 T Bollard Pull 8 Knots Speed DC 24V
MC1500 Multi Cat Service Boat 40 T Bollard Pull 8 Knots Speed DC 24V
Specifications
Brand Name :
LD
Model Number :
MC1500
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 Piece
Payment Terms :
L/C, T/T
Supply Ability :
200
Delivery Time :
Peak season lead time: 1-3 months ; Off season lead time: 1-3 months
Packaging Details :
In Container Or Bulk Vessel
Price :
Free Consultation
Length Overall :
15m
Width :
6m
Draft :
1.2m
Engine power(cummins) :
175kwx2
Hydraulic knuckle crane :
350kNm
Fuel tank :
65m³
Bollard pull :
40t
Speed :
8knots
Description

Dredging Equipment Multi Cat Service Boat MC1500 | Leader Dredger

General
Length Overall
15m
Width
6m
Draft
1.2m
Engine power(cummins)
175kwx2
Hydraulic knuckle crane
350kNm
Fuel tank
65m³
Bollard pull
40t
Speed
8knots


PARAMETERS
Wheelhouse
Dismountable type
Multi cat body(marine plate)
8mm
Bottom&Deck Plate(marine plate)
10mm
Cathodic Protection
Zinc anode in 2m interval at each side
Towing hook
SWL: 40 ton
Steering gear
Hydraulic type
Propeller
Cu, Dia ~800mm
Navigation Lights
Refer to MSA rules for River Boat
Life Jackets
2 pieces with 15m life line
Fire Extinguisher
6 pieces

ELECTRIC POWER SUPPL
1. DC24V
2. 4 Batteries for main engine starting
3. 2 Batteries for lighting and control system
4. Solar Panel and one portable diesel generator ~3kw for battery charging

FEATURE
1. Transport diesel, fresh water, person, materials
2. Move the anchor
3. Use a crane to maintain the dredging pipe
4. Push or pull dredger to other places
5. Dredger's other support work
6. With an oil pump, it is convenient to pump oil onto the ship.
7. High power design
MC1500 Multi Cat Service Boat 40 T Bollard Pull 8 Knots Speed DC 24V
MC1500 Multi Cat Service Boat 40 T Bollard Pull 8 Knots Speed DC 24V

ABOUT LEADER DREDGER:

Weifang Leader Co., was established in 1986, who integrates design & research, production, export and after-sale service, is the only professional Chinese manufacturer for cutter suction dredgers with many branch offices in Asia, Russia, Mid-East, Africa countries etc, keeping the largest annual sale for cutter suction dredgers.
Leader dredger, on the march to a world famous brand name, is your ideal choice for dredging machinery!

WHY US

● Rich design resources. Long-term cooperation with more than ten design institutes in China.

● Nearly 20 years of production experience, sales to more than 20 countries around the world. Have a good understanding of the requirements of equipment in different working conditions, and know how to produce ships suitable for customers'working conditions.

● The total production is more than 100 dredgers. Through so many customers'feedback, we constantly improve the design and production of our products.

● Concentrate on dredger production. All energy production cutter suction dredger, professional, dedicated.

● Serve customers attentively. We can consult and ask for help when we are using our dredger. We will do our best to help.

OUR SERVICES

● Provide consulting and design services before sales, and provide scheme support to customers according to their working conditions and needs.

● Suggestions on spare parts configuration according to customer's requirements

● Provide on-site installation guidance, overall commissioning, pre-job training, tracking guidance services ( dredger master, mechanic)

● Provide one-year after-sales service

● Providing permanent accessories and consulting services
