Geological Alloy Steel 3.5 Inch Crossover Sub Drilling API 5CT 5B
Geological Alloy Steel 3.5 Inch Crossover Sub Drilling API 5CT 5B
Geological Alloy Steel 3.5 Inch Crossover Sub Drilling API 5CT 5B
Geological Alloy Steel 3.5 Inch Crossover Sub Drilling API 5CT 5B
Geological Alloy Steel 3.5 Inch Crossover Sub Drilling API 5CT 5B
Geological Alloy Steel 3.5 Inch Crossover Sub Drilling API 5CT 5B
Geological Alloy Steel 3.5 Inch Crossover Sub Drilling API 5CT 5B
Geological Alloy Steel 3.5 Inch Crossover Sub Drilling API 5CT 5B
Specifications
Brand Name :
EN
Model Number :
4500
Certification :
API . ISO
Place of Origin :
China
MOQ :
10 Pcs
Price :
USD50/PCS
Payment Terms :
L/C, T/T
Supply Ability :
5000 PCS / Year
Delivery Time :
2-4 Weeks
Packaging Details :
Wooden Box
Material :
Alloy steel
Specification :
API
Size :
API
Type :
A and B
Application :
oil ,mining ,water ,gas drilling industry
color :
as buyer requirment
model :
EU and MU
Description

Crossover Sub 3-1/2in Connecting Of Uppper Drilling Tool

Description :

Cross-over sub acts for conversion and connection of drill stem component in petroleum,natural gas and geology drilling work. It is used mainly for connecting of upper drill tools and lower drill tools during drilling operations.

Specification :


There are three types such as pin*pin, pin*box, box*box. We carry size range of 2-3/8", 2-7/8″, 3-1/2″,4″ and 4-1/2″ in J55, K55, N80, P110 grade.
All of our couplings meet the API Specifications 5CT/5B.

1.Size: 2-3/8″, 2-7/8″, 3-1/2″, 4″, 4-1/2″
2. Standard: API 5CT /5B
3. Model : EUE ,NUE

4: Material : Alloy Steel as buyer requirement
4. Grade: J55/K55/N80/L80/P110

5. Type : PIN*PIN ,PIN*BOX ,BOX*BOX

6. Application Industries : Oil , Gas, water ,Mining drilling industry

Geological Alloy Steel 3.5 Inch Crossover Sub Drilling API 5CT 5B

Aviable Size :

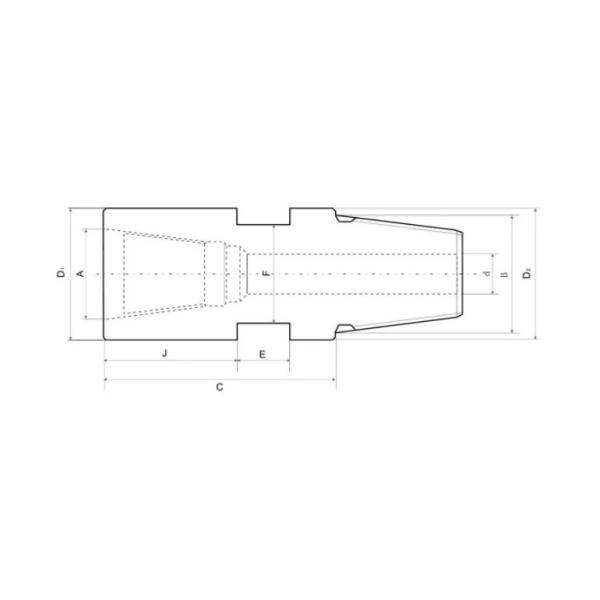

Size Type of Thread O.D*L (mm) Weight(kg)
2-3/8" NUE 73.02*107.95 1.28
2-7/8" NUE 88.90*130.18 2.34
2-7/8" EUE 93.17*133.35 2.40
3-1/2" NUE 107.95*142.88 3.71
3-1/2" EUE 114.30*146.05 4.10
4" NUE 120.65*146.05 4.35
4" EUE 127.00*152.40 4.82
4-1/2" NUE 132.08*155.58 4.89
4-1/2" EUE 141.30*158.75 6.05

Geological Alloy Steel 3.5 Inch Crossover Sub Drilling API 5CT 5B

Model Type :

Model A 2 3/8''IF(box or pin)-2 7/8''IF(box or pin)
Model B 2 3/8''IF(box or pin)-3 1/2''IF(box or pin)
Model C 2 3/8''IF(box or pin)-4 1/2''IF(box or pin)
Model D 2 3/8''reg(box or pin)-3 1/2''IF(box or pin)
Model E 2 7/8''reg(box or pin)-3 1/2''reg(box or pin)
Model F 2 7/8''reg(box or pin)-4 1/2''reg(box or pin)
Model G 3 1/2''IF(box or pin)-4 1/2''reg(box or pin)
Model H 4 1/2''reg(box or pin)-6 5/8''reg(box or pin)
Model I 6 5/8''reg(box or pin)-3 1/2''IF(box or pin)
Model J 4''FH(box or pin)-5 1/2'' FH(box or pin)

Manufacuture Process :

The sub adapter of drill-class production technology, and has formed a complete production system has a number of leading level of electro-hydraulic forging hammer, to control atmosphere furnace heat treatment production line and excellent Seiko CNC machine tool production equipment. All parts CNC machining, the key technology of CNC control to ensure that the products of high quality, high reliability.

Geological Alloy Steel 3.5 Inch Crossover Sub Drilling API 5CT 5B
