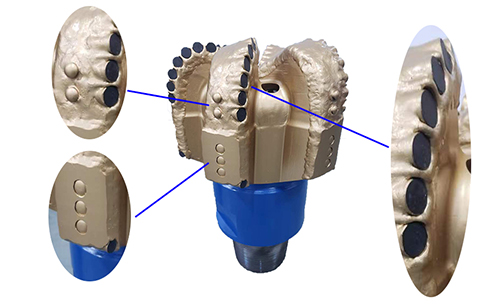

PDC Bit 12 Inch Diamond Fixed Cutter Drill Bit Of Oil Drilling Tool

1 . Descriptions:

What is PDC Drill Bit ?

PDC drill bit is a type drilling industrial drilling tool for oil , gas ,or mining, construction and other . The drill bits are desgined to cut though hard material such as rock ,shale ,sandstone and so on .

PDC Drill bit ( Polycrystalline Diamond drill bit ) are also Fixed-cutter which are classificated to different grade according to the composed of four characters that designate:

• Body material
• Cutter density
• Cutter size or type
• Bit profile

All of our Drill bits are manufacture according the API specification . The PDC drill bits size are 3~22inch with 3~9Blades are available.

2. Specification:

3 . Bit profile

4 . Drill Bit PDC Cutters

Polycrystalline Diamond Composite (PDC) cutters are the main point of contact for a drill bit. PDC bits remove the rock mainly by shearing.

The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.

PDC cutters that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.

5. Drill Bit Nozzles

Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.

Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.

Fluid channels also complement nozzle placement to improve the clearing of cuttings.

6. Steel Body PDC Bits

Steel body is the opposite of matrix body. It can of withstanding high impact loads, but is softer and lacks protective features. The strength and ductility of steel give steel-bit bodies high impact resistance.

Steel bodies are considerably stronger than matrix bodies.

A beneficial feature of steel bits is that they can easily be rebuilt a number of times because worn or damaged cutters can be replaced rather easily. This is a particular advantage for operators in low-cost drilling environments.

Polycrystalline diamond compact (PDC) drill bits are different than roller cones in that they are one piece bodies with no moving parts. The fixed-cutters shred the rock, so the bit is able to operate with higher rotation speeds more efficiently in consolidated formations.
