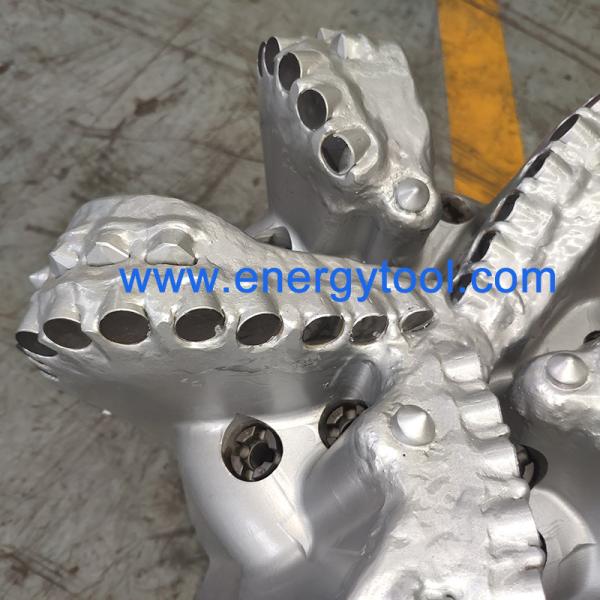

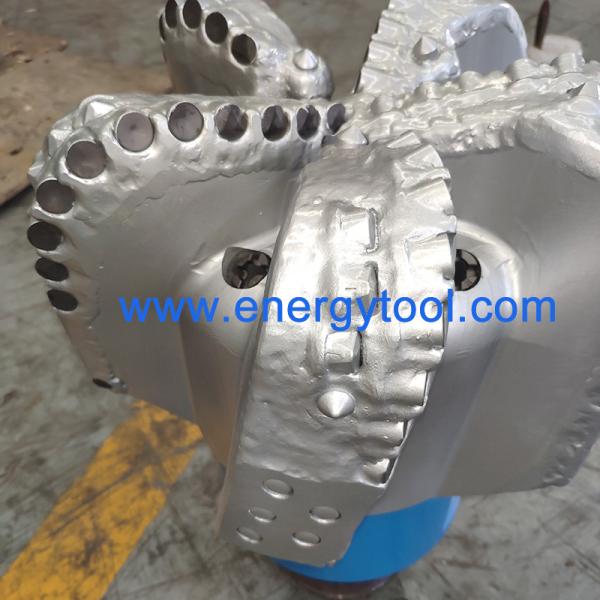

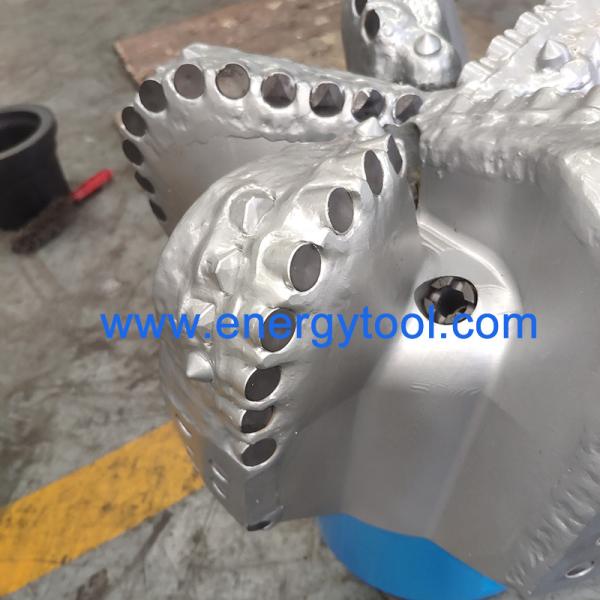

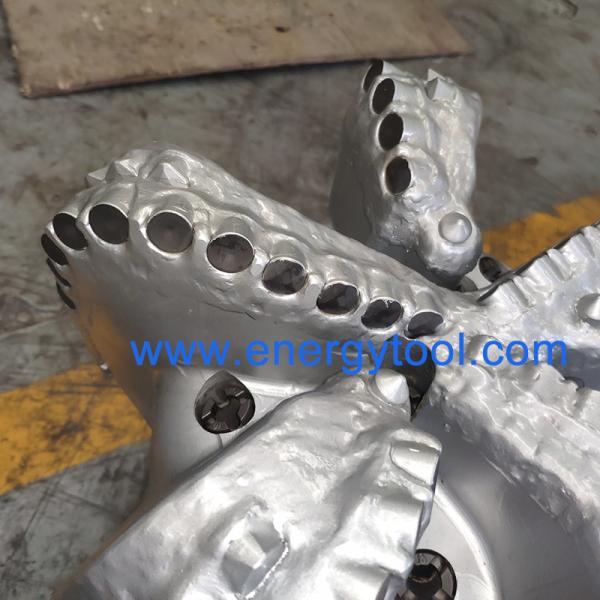

API Spec Drilling Tool 13-1/4 " PDC Diamond Drill Bit of Drilling Well

1 . Descriptions:

When choosing a PDC drill bit, it is crucial to evaluate the formation beforehand. For hard formations, opting for a PDC drill bit is a wise decision as it can enhance cutter performance and save costs. However, for soft formations, alternative drill bits should be considered. It's important to note that PDC drill bits generally have a higher price compared to tricone or hammer bits due to their composition of tungsten carbide and diamond materials. Therefore, it is essential to have a good understanding of PDC drill bits before making a selection.

The performance of a PDC drill bit depends on various factors, including:

• PDC Drill Bit Body Material
• Density of the PDC Drill Bit Cutter
• Size or Type of the PDC Drill Bit Cutter
• Profile of the PDC Drill Bit

At our company, we prioritize adherence to API standards and offer a wide range of PDC drill bits that are widely used in the drilling industry. Our selection includes sizes ranging from 3 to 22 inches and features 3 to 9 blades. We also provide various cutter options within different classifications to accommodate different budgetary requirements.

By carefully considering these factors, you can make an informed decision and choose the most suitable drill bit for your drilling needs.

2. PDC Drill Bit Specification:

3 . PDC Bit profile

4 . PDC Drill Bit Cutters

Polycrystalline Diamond Composite (PDC) cutters of PDC drill Bit are the main point of contact for a drill bit. PDC bits remove the rock mainly by shearing. The PDC cutters are exposed to a lot of heating and cooling down the well, a very challenging environment.

PDC cutters that have lower thermal degradation and more thermal stability generally achieve higher ROP and increased wear resistance. So, optimizing the cutter is important.

5. PDC Drill Bit Nozzles

PDC Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.

Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.

Fluid channels also complement nozzle placement to improve the clearing of cuttings.

6. Steel Body PDC Bits and manufacutre process

Steel body of PDC Drill Bit is the opposite of matrix body of PDC Drill Bit . It can of withstanding high impact loads, but is softer and lacks protective features. The strength and ductility of steel give steel-bit bodies high impact resistance. Steel bodies are considerably stronger than matrix bodies.

A beneficial feature of steel bits is that they can easily be rebuilt a number of times because worn or damaged cutters can be replaced rather easily. This is a particular advantage for operators in low-cost drilling environments.

Polycrystalline diamond compact (PDC) drill bits are different than roller cones in that they are one piece bodies with no moving parts. The fixed-cutters shred the rock, so the bit is able to operate with higher rotation speeds more efficiently in consolidated formations.
