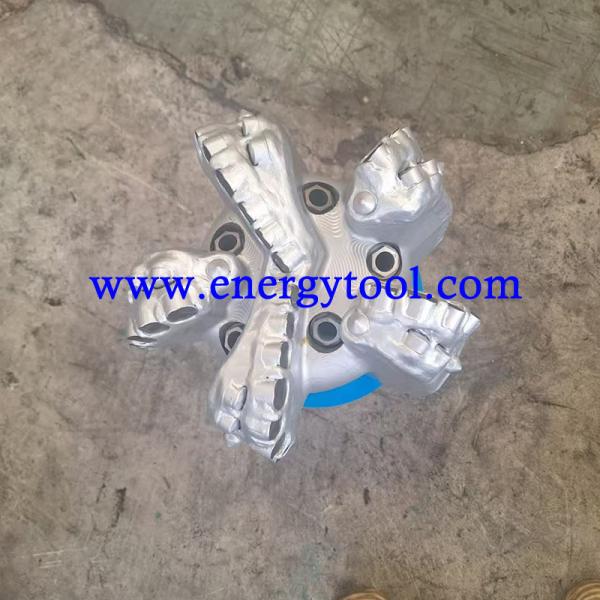

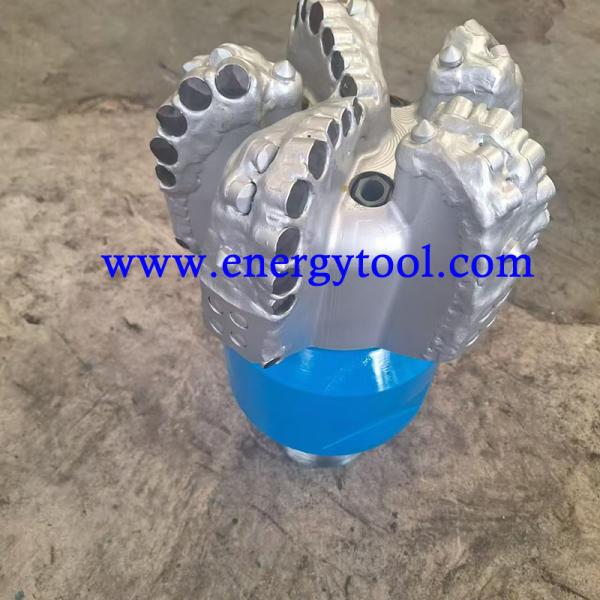

Diamond Rock Drilling 8.5inch Steel Body PDC Drill Bit Of oilfield

1 . Descriptions:

The implementation of Diamond PDC bits signifies a breakthrough in drilling technology by harnessing the capabilities of "Polycrystalline Diamond Compact" (PDC) technology. This cutting-edge diamond material revolutionizes the effectiveness and durability of drill bits utilized in oil drilling operations.

The S616 PDC drilling bit sets a standard of excellence as a fixed-head tool that functions seamlessly as a cohesive unit, ensuring consistent and reliable performance throughout drilling operations.

When selecting a PDC drill bit, critical factors such as cutter density, size, bit profile, and blade type play essential roles in determining performance across various drilling conditions.

Our assortment of PDC bits strictly complies with API standards, guaranteeing smooth integration with drilling operations. These bits are offered in sizes ranging from 3 to 22 inches with 3 to 9 blades, providing a range of cutter classifications tailored to specific requirements and financial considerations

2. Specification:

PDC bits such as the S616 or M616 are specified with a 6-blade steel or matrix body and a 16mm main cutter. The IADC code indicates whether the bit is suitable for hard, soft or specific profile formations, providing additional insight.

So the IADC 323 have different mean of the PDC drill bit.

3 . PDC Drill Bit profile

4 . Drill Bit PDC Cutters

At the heart of a drill bit are polycrystalline diamond composite (PDC) cutters, which engage directly with the rock, using primarily shearing action for removal. In the demanding environment of a well, PDC cutters undergo frequent heating and cooling cycles, which pose significant challenges.

PDC cutters with improved thermal stability and reduced thermal degradation tend to perform better, resulting in higher rates of penetration (ROP) and improved wear resistance. Optimising these cutters is therefore critical to maximising effiency.

5. PDC Drill Bit Nozzles

PDC Drill bit nozzles help clear the cutting area and cool the Polycrystalline Diamond Composite (PDC) cutters.

Effective placement of these nozzles along with the angle they are set at plays a critical role on how efficient the drill bit performs.

Fluid channels also complement nozzle placement to improve the clearing of cuttings.

6. Steel Body PDC Bits

Steel body of PDC Bit is the opposite of matrix body. It can of withstanding high impact loads, but is softer and lacks protective features. The strength and ductility of steel give steel-bit bodies high impact resistance.

Steel bodies are considerably stronger than matrix bodies.

A beneficial feature of steel bits is that they can easily be rebuilt a number of times because worn or damaged cutters can be replaced rather easily. This is a particular advantage for operators in low-cost drilling environments.

Polycrystalline diamond compact (PDC) drill bits are different than roller cones in that they are one piece bodies with no moving parts. The fixed-cutters shred the rock, so the bit is able to operate with higher rotation speeds more efficiently in consolidated formations.
