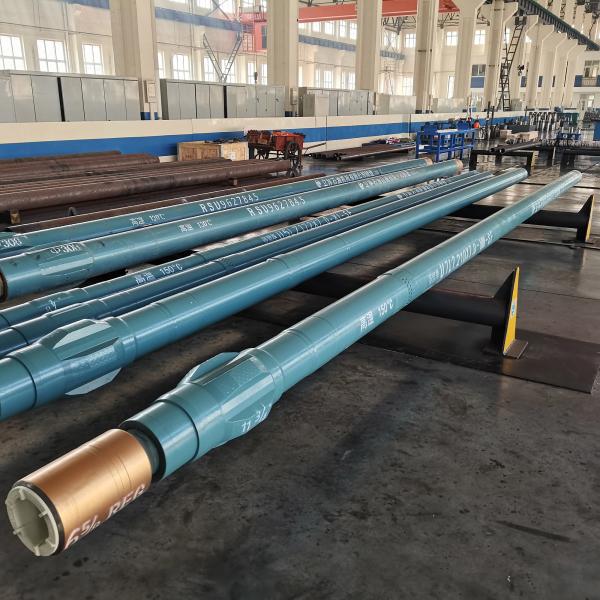

6-3/4 172mm Evenwall Down Hole Motor For Directional Drilling Oil And Gas
6-3/4 172mm Evenwall Down Hole Motor For Directional Drilling Oil And Gas
6-3/4 172mm Evenwall Down Hole Motor For Directional Drilling Oil And Gas
6-3/4 172mm Evenwall Down Hole Motor For Directional Drilling Oil And Gas
Specifications
MOQ :
Negotiable
Supply Ability :
30000PCs per Year
Delivery Time :
5-15work days
Packaging Details :
According to customer needs
Model :
7LZ-172-4.3-1070
Drilling Fluid :
Water/Salty Water/ Oil Base Mud
Well Temperature :
Below 150℃
Application :
Coiled Tubing Drilling
Bend :
Single Bend
Standard :
API Spec 7-1
Origin :
China
HS Code :
84122910
Package :
Wood Cartons Free of Fumigation or Naked
OEM :
Available
Place of Origin :
Hebei,China
Certification :
ISO9001
Price :
Negotiable
Payment Terms :
T/T
Description

6-3/4" (172mm) Even Wall Down Hole Motor for Oil and Gas Well Directional Drilling

Local aging of elastomer occurs frequently in conventional downhole motors because the elastomer thickness of conventional downhole motor is different. The elastomer are worn not evenly. That leads to a power section failure soon. This problem is solved greatly in Even Wall Thickness downhole motors. The elastomer of even wall thickness downhole motor is the same. It is worn evenly in drilling operation so it extends the working life greatly. Even wall thickness downhole motors also provide 50% more toque than conventional downhole motors and longer working life in directional well drilling.

Our even wall thickness downhole motor are able to be custom made as per the customers detailed requirements if the required size is not available in below tables.

Availability of our small size downhole motor:

Downhole Motor Specification OD Bit Size Connection Lobe Stage Flow Rate RPM Working Pressure Drop Output Toque Max Pressure Drop Max Toque Operating WOB Max WOB Output Power
mm In mm In Top Bottom Lpm Gpm MPa Psi N.m lb-ft MPa Psi N.m lb-ft kN lb kN lb KW HP
5LZ-172-5.6-900 172 6-3/4 213~251 8-3/8~9-7/8 4-1/2REG 4-1/2REG 5:6 5.6 1140-2270 301-600 104-207 13.02 1888 11720 8645 19.52 2832 17580 12967 100 22000 150 33000 254 341
5LZ-172-6.2-820 172 6-3/4 213~251 8-3/8~9-7/8 4-1/2REG 4-1/2REG 5:6 6.2 1140-2270 301-600 114-227 14.41 2090 11852 8742 21.62 3135 17778 13113 100 22000 150 33000 282 378
7LZ-172-3.0-920 172 6-3/4 213~251 8-3/8~9-7/8 4-1/2REG 4-1/2REG 7:8 3.0 1140-2270 301-600 83-166 6.97 1012 7864 5800 10.46 1517 11796 8701 100 22000 150 33000 137 184
7LZ-172-4.0-1200 172 6-3/4 213~251 8-3/8~9-7/8 4-1/2REG 4-1/2REG 7:8 4.0 1140-2270 301-600 65-129 9.30 1348 13349 9846 13.95 2023 20024 14770 100 22000 150 33000 180 241
7LZ-172-4.0-1200 172 6-3/4 213~251 8-3/8~9-7/8 4-1/2REG 4-1/2REG 7:8 4.0 1140-2270 301-600 57-114 9.30 1348 15409 11366 13.95 2023 23114 17049 100 22000 150 33000 184 247
7LZ-172-4.3-1070 172 6-3/4 213~251 8-3/8~9-7/8 4-1/2REG 4-1/2REG 7:8 4.3 1140-2270 301-600 79-157 10.00 1450 11837 8731 14.99 2175 17756 13097 100 22000 150 33000 195 261
7LZ-172-4.7-910 172 6-3/4 213~251 8-3/8~9-7/8 4-1/2REG 4-1/2REG 7:8 4.7 1140-2270 301-600 95-188 10.93 1585 10782 7953 16.39 2377 16173 11929 100 22000 150 33000 212 284
7LZ-172-5.0-920 172 6-3/4 213~251 8-3/8~9-7/8 4-1/2REG 4-1/2REG 7:8 5.0 1140-2270 301-600 83-166 11.62 1686 13026 9608 17.43 2528 19539 14412 100 22000 150 33000 226 303
7LZ-172-5.0-920 172 6-3/4 213~251 8-3/8~9-7/8 4-1/2REG 4-1/2REG 7:8 5.0 1140-2270 301-600 74-148 11.62 1686 14676 10825 17.43 2528 22014 16238 100 22000 150 33000 227 304
7LZ-172-5.1-900 172 6-3/4 213~251 8-3/8~9-7/8 4-1/2REG 4-1/2REG 7:8 5.1 1140-2270 301-600 95-188 11.85 1719 11699 8629 17.78 2579 17549 12944 100 22000 150 33000 230 308

6-3/46-3/4

6-3/4
