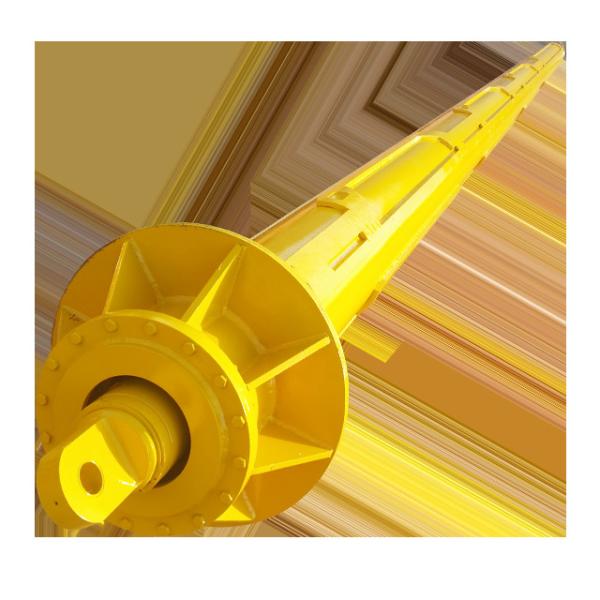

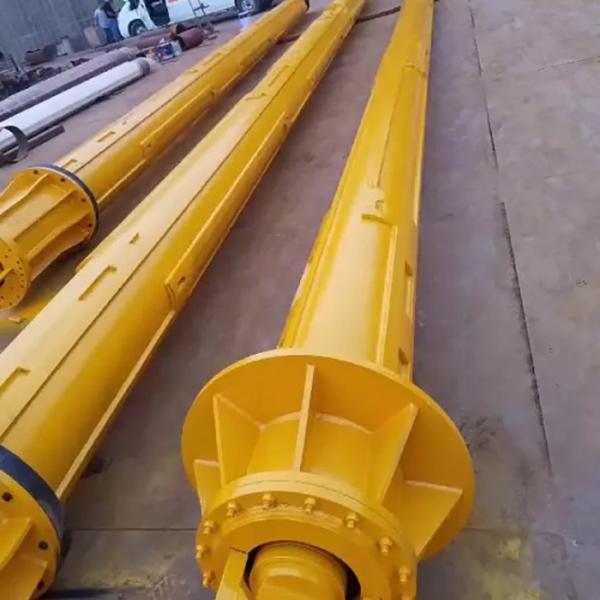

Bauer BG47 interlock kelly bar
Bauer BG47 interlock kelly bar
Bauer BG47 interlock kelly bar
Bauer BG47 interlock kelly bar
Bauer BG47 interlock kelly bar
Bauer BG47 interlock kelly bar
Bauer BG47 interlock kelly bar
Bauer BG47 interlock kelly bar
Specifications
Brand Name :
bauer
Model Number :
bg25/bg28/bg30
Certification :
ISO9001
Place of Origin :
beijing
MOQ :
1
Payment Terms :
Western Union, L/C, D/P, T/T
Supply Ability :
100 + sets + 1 year
Delivery Time :
7-10 working days
Packaging Details :
steel guide
Warranty :
6 months
Material :
Q345B,35CrMo,27SiMn,16Mn for drilling bit; 16Mn/35CrMo for kelly bar; Q235 for tremie pipe
Color :
Customized
After-sales service provided :
Video technical support,Online support,Engineers available to service machinery overseas,Field maintenance and repair service,Field installation
Product name :
drill Bauer Type interlocking kelly bar for Piling
Application :
Bauer Sany XCMG Rotary Drilling Rig,Rock drilling
Type :
or Customerized,interlocking or friction kelly bar,Kelly Bar
Condition :
100%new
Name :
Kelly Bar,Rotary Drilling Rig Kelly Bar
Drilling depth :
20-120m
Processing type :
Hot treatment and forging
Use :
deep foudation
Weight :
within 10t
Usage :
rotary drilling rig
Tube material :
Alloy seamless steel tube
Abrasion resistance :
Strong
Machine type :
for foundation construction rotary drilling rig
Advantage :
Six-key design and parts with imported material
Description

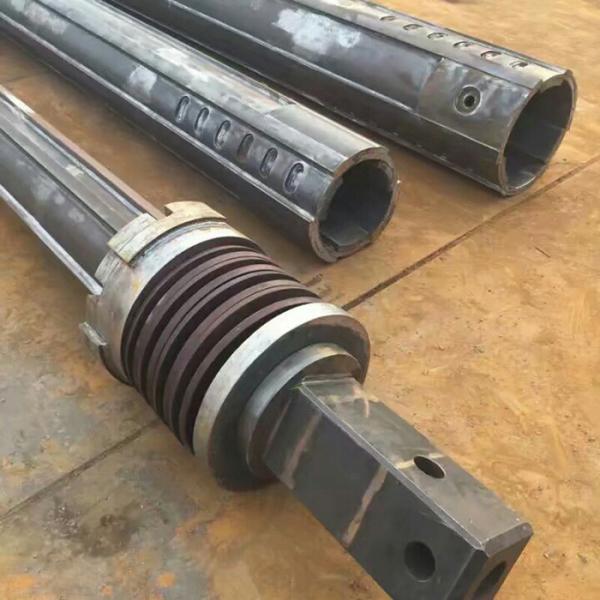

kelly bar are especially designed for drill hard materials and when crowd force is required . kelly bar is key components in the execution of boreholes with hydraulic drill rig . kelly bar transfer the torque to the rotary drive and crowd pressure to the drill tools . a kelly bar consist of 2-5 telescopic sections with a system drive keys and lock recesses, welded onto their outer surface. Standard kelly bars are fabricated with a total of 6 drive key on each sections.

Based on the rich manufacturing experience and by absorbing the advanced technology at home and abroad , we can produce first-class kelly bars which can be matched with drill rigs of Bauer, sany , XCMG, Soilmec , Casagrande , IMT, Mait etc.

Bauer BG47 interlock kelly bar

Bauer BG47 interlock kelly bar

No.

OD

Section

Way of crowding

Length of per section(m)

Drill depth

 Torque
1 ¢299 3 4

(Bauer-type)

 9-12 24-45 100 -120
2 ¢342 3 4

(Bauer-type)

 9 - 12 24-45 100 -120
3 ¢355 3 4

(Bauer -type)

 9 - 14 24 - 56 100-120
4 ¢368 3 4

(Bauer -type)

 9 - 14 24 - 56 150-180
5 ¢377 3 4

(Bauer -type)

 9 - 14 24 - 56 150-180
6 ¢394 3 4

(Bauer -type)

 9 - 15 24 - 58 180-200
7 ¢406 3 4

(Bauer -type)

 9 - 15 24 - 58 180-200
8 ¢419 3 4

(Bauer-type)

 9 - 15 24 - 58 200-230
9 ¢440(445) 3 4

(Bauer -type)

 9 - 15 24 – 58 220-260
10

¢470

(482)

 3 4

(Bauer -type)

 9 - 16 24 – 60 220-260
11 ¢508 3 4

(Bauer-type)

 9 – 18 24 – 68 260-360
12

¢530

(540)

 3 4 5

(Bauer-type)

 9 – 20 32 – 92 320-400
13 ¢580(575) 3 4 5

(Bauer -type)

 9 – 20 32 – 92 360-420
14 ¢630 3 4 5

(Bauer -type)

 9 - 22 32 - 102 400-500

a). high quality material and rich manufacturing experience in welding process.dvantage & Features of our kelly bar :

b). reasonable price and advanced processing facilities.

c). professional experienced engineers group from R&D department.

d). Raw materials of seamless steel tube with alloy from Chinese top manufacturer.

e). Higher hardness, higher flexibility, excellent welding properties.

f). Thinner tube, smaller inter-tube distance, good abrasion resistance.

g). Advanced technology of 6-key design, standard modular design

Bauer BG47 interlock kelly bar

FAQ:

1.What kind of kelly bar can we provide?

Ans.: We can provide kelly bars for almost all the brand rotary drilling rig,the interlocking Kelly bar and friction Kelly bar , most are for Bauer, IMT , MAIT, SOILMEC, SANY , TEG, SUNWARD ,XCMG ,Etc. For ten years experience, supply all the world clients with good satisfaction.

2.What is the advantages of our kelly bar?

Ans.:We use super quality seamless steel pipe material, which makes the kelly bar more durable, and our kelly bar with competitive and reasonable price. We have got the ISO9001 certification , no matter you are dealers or end user, you will get the biggest profit.

3. What warranty do we provide?

Ans.: We provide 6 months warranty time.

4. What is the lead time?

Ans.: Usually the lead time is 7days,after receipt of your down payment.

5.What payment terms do we accept?

Ans.: We accept TT in advance and LC at sight .
