Casing Shoe Drilling Double Wall Bauer Type Casing Shoes With Teeth Ws39
Casing Shoe Drilling Double Wall Bauer Type Casing Shoes With Teeth Ws39
Casing Shoe Drilling Double Wall Bauer Type Casing Shoes With Teeth Ws39
Casing Shoe Drilling Double Wall Bauer Type Casing Shoes With Teeth Ws39
Casing Shoe Drilling Double Wall Bauer Type Casing Shoes With Teeth Ws39
Casing Shoe Drilling Double Wall Bauer Type Casing Shoes With Teeth Ws39
Casing Shoe Drilling Double Wall Bauer Type Casing Shoes With Teeth Ws39
Casing Shoe Drilling Double Wall Bauer Type Casing Shoes With Teeth Ws39
Casing Shoe Drilling Double Wall Bauer Type Casing Shoes With Teeth Ws39
Casing Shoe Drilling Double Wall Bauer Type Casing Shoes With Teeth Ws39
Specifications
Brand Name :
jthl
Model Number :
1080/1000
Place of Origin :
beijing
MOQ :
1
Price :
USD+1000-2000+set
Payment Terms :
D/A, D/P, L/C, T/T, Western Union
Supply Ability :
1000+set +year
Packaging Details :
exported standard package
Material :
Stainless Steel, Q355D
Service :
OEM Serivice,Customized OEM,Manufacturer
Product name :
casing
Application :
bored foundation construction
Finish :
Polishing
Lead time :
3-7days for sample order
Type :
japan or Germany standard
Description

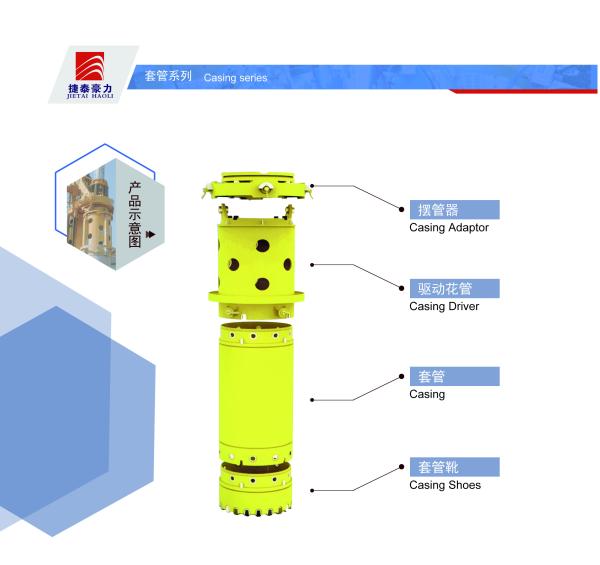

The Drilling Rotary Casing Pipe is obtained by driving a steel soding into the ground in order to protect the whole drilling operation; basically the rotary drilling tool during the working process, performs inside a mechanical protection made by the casing fixed into the ground.

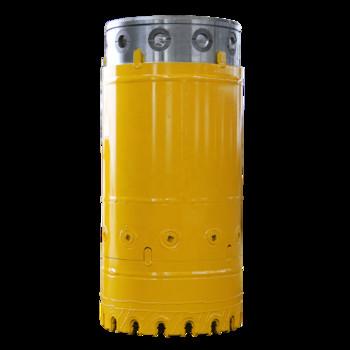

Double walled rotary casings pipe can be used universally, as they are designed especially for transmitting high rotational and vertical forces as created by the rig rotary drives or oscillations .
The use of double walled casings ensures a flush drill string.
Single walled rotary casings pipe can be used for applications where weight reduction is important.

Drilling Diameter Range: 620~2500mm

Wall thickness: 20~60mm

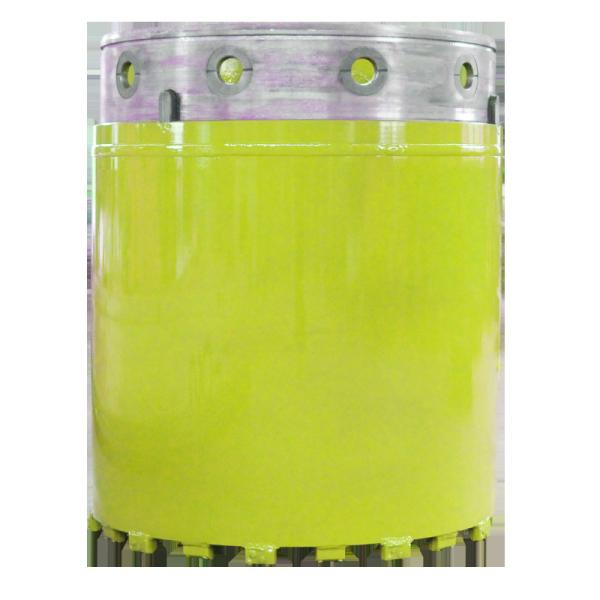

Casing Shoes

D(mm) d(mm) H(mm) Noofteeth(pcs) weight(kg)
620 540 586 9 280
750 670 586 10 335
800 720 586 11 368
880 800 586 13 408
900 820 586 14 419
1000 920 586 15 468
1180 1100 586 17 557
1200 1120 586 18 567

Casing Shoe Drilling Double Wall Bauer Type Casing Shoes With Teeth Ws39Casing Shoe Drilling Double Wall Bauer Type Casing Shoes With Teeth Ws39

Casing Shoe Drilling Double Wall Bauer Type Casing Shoes With Teeth Ws39
