Hard Alloy Flat Teeth Tungsten Carbide Tip Weldable Steel High Feed Rate

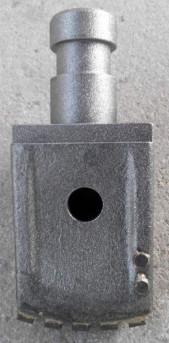

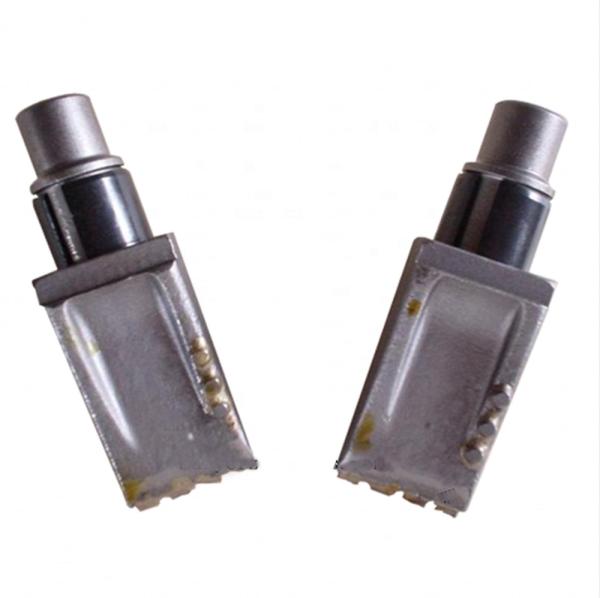

Flat teeth are used as cutting teeth on augers, drilling buckets.Normally one set includes one pcs of teeth, one pcs of adapter/holder and one pcs of pin, you can choose them freely according to your purchasing requirement.
Use high grade alloy steel , tungsten carbide tip and advanced brazing,technology to produce high quality.Weldable steel is suitable for covering large ares. The material of the steel body adopt the 42CrMo.The tungsten carbide tip adopt YG11C and YG13C.
Together with the parts supply assurance,a high daily production volume,and above-average economy is guaranteed.
The holder adapt to the teeth with all the performance features such as a high feed rate,a long service life and short tool changing times.

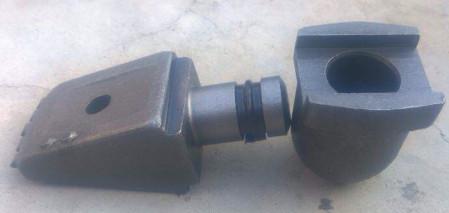

Tooth Holder:
The tooth holder is optimally adapted to the tooth series. It guarantees easy tooth replacement (ejector port). Its compact construction facilitates the execution of complicated cutting geometries and optimal adjustment of tooth position.
Product Features | |
Product name | BFZ55 flat teeth |
Appplicable layer | Soft to stiff silt and clay, loose to medium dense sand and gravel |
Shank size | 38mm |
Body Material | 42CrMo |
Tungsten Tip size | 9.1mm |
Hardness | HRC40~44 |
Weight | 2.6 kg/pc |
1. Changeable welding of holder position makes cutting angle easy.
2. Quick-change connection design for easy replacement.
3. Embedded carbides on cutting edge and two sides for long-lasting tool life in abrasive condition.
4. Forging technology provides high strength properties.
Flat teeth are used as cutting teeth on augers, drilling buckets.The range of cutting teeth comprises several types for different areas of application.
