Iron Material Drilling Bucket 600-3000mm Cleaning Diameter Fitted With A Kelly Box
Iron Material Drilling Bucket 600-3000mm Cleaning Diameter Fitted With A Kelly Box
Iron Material Drilling Bucket 600-3000mm Cleaning Diameter Fitted With A Kelly Box
Iron Material Drilling Bucket 600-3000mm Cleaning Diameter Fitted With A Kelly Box
Iron Material Drilling Bucket 600-3000mm Cleaning Diameter Fitted With A Kelly Box
Iron Material Drilling Bucket 600-3000mm Cleaning Diameter Fitted With A Kelly Box
Specifications
Brand Name :
KonDaSin
Model Number :
Clean Bucket
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10 Pieces per Day
Delivery Time :
7 working days
Packaging Details :
Wood case
Certification :
ISO9001
Name :
Clean drilling bucket
Article Name :
Foundation Engineering
Application :
for clean the bottom of borehole
Usage :
bored pile, driving pile, foundation construction
Cleaning Diameter :
600-3000mm
Material :
Iron
Description

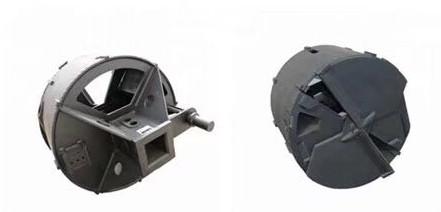

Clean Out Bit Drilling Bucket Construction Accessories Piling Tool Standard Sizes

Iron Material Drilling Bucket 600-3000mm Cleaning Diameter Fitted With A Kelly Box

Cleaning the bottom of borehole and removing spoil from holes after drilling to get a clean hole is the work of clean bucket.Clean out Bucket is designed to pull heavy fines and water suspended material from the shaft allowing concrete to be poured.

Cleaning buckets are made from the highest grade of metal and boast many practical features and high tensile cutting edge for a cleaner hole & longer life span.

This kind of bucket can be fitted with a Kelly Box (drive hub) to suit your machine. It allows for a manual hand-operated, or automatic opening mechanism to be fitted (for emptying)- For drill rigs fitted with striker plate.

The diameter series of buckets are standard sizes,other lengths and diameters can be supplied on request.

Iron Material Drilling Bucket 600-3000mm Cleaning Diameter Fitted With A Kelly Box

Model Size Height

Bucket

Thickness

Upper Bottom

Thickness

Lower Bottom

Thickness

No of

teeth

 Weight

Cleaning

Bucket

 φ600 800 16 40 200 / 432
φ700 800 16 40 200 / 513
φ800 800 16 40 200 / 622
φ900 800 16 40 200 / 724
φ1000 800 16 40 200 / 837
φ1100 800 16 40 200 / 959
φ1200 800 16 40 200 / 1086
φ1250 800 16 40 200 / 1154
φ1300 800 16 40 200 / 1242
φ1400 800 16 40 200 / 1392
φ1500 600 16 40 200 / 1477
φ1600 600 16 40 200 / 1649
φ1700 600 16 40 200 / 1826
φ1800 600 16 50 200 / 2293
φ1900 600 16 50 200 / 2518
φ2000 600 20 50 200 / 3046
φ2200 600 20 50 200 / 3481
φ2500 600 20 50 200 / 4392
φ2800 600 20 50 200 / 5607
φ3000 600 20 50 200 / 6377

Iron Material Drilling Bucket 600-3000mm Cleaning Diameter Fitted With A Kelly Box

1. Choose cone or straight bucket according to different working conditions.

2. Choose straight guide plate or no guide plate according to different working conditions.

3. Applicable scope: clean spoil at pile bottom, soft layer.

4. High quality raw material.

Iron Material Drilling Bucket 600-3000mm Cleaning Diameter Fitted With A Kelly Box

Applicable for cleaning the bottom of borehole

Iron Material Drilling Bucket 600-3000mm Cleaning Diameter Fitted With A Kelly Box
