Alloy Steel Kelly Bar Foundation Drilling Tools Pull Water Suspended Material
Alloy Steel Kelly Bar Foundation Drilling Tools Pull Water Suspended Material
Alloy Steel Kelly Bar Foundation Drilling Tools Pull Water Suspended Material
Alloy Steel Kelly Bar Foundation Drilling Tools Pull Water Suspended Material
Alloy Steel Kelly Bar Foundation Drilling Tools Pull Water Suspended Material
Alloy Steel Kelly Bar Foundation Drilling Tools Pull Water Suspended Material
Specifications
Brand Name :
KonDaSin
Model Number :
Bucket
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
10 Pieces per Day
Delivery Time :
7 working days
Packaging Details :
iron support +film protect
Certification :
ISO9001
Name :
Rock construction bucket
Diameter :
500-3000 mm
Length :
500-800-1200-1500 mm
Thickness :
16-20 mm
Bottom :
Single-Double
Material :
Q345B 45# alloy steel
Description

Drill Pipe Tools Drilling Bucket Bore Holes Alloy Steel Kelly Bar Accessories

Alloy Steel Kelly Bar Foundation Drilling Tools Pull Water Suspended Material

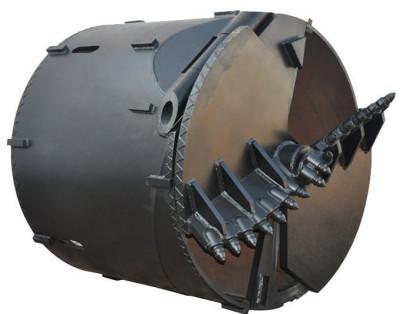

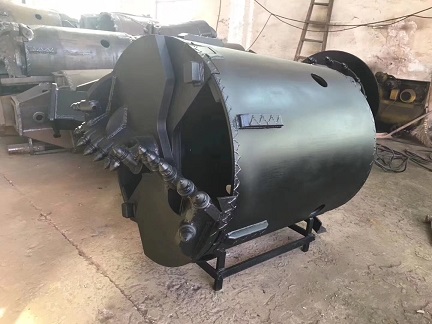

Rock buckets are suitable for breaking and ripping hard soil up to medium hard rock. Buckets boast a heavy duty construction and come fitted with a Kelly Box (drive hub) to suit your machine. Its design allows for a manual hand-operated, or automatic opening mechanism to be fitted

(for emptying)- For drill rigs fitted with striker plate.

They are designed for drilling in Sand,gravel up to dense, weak rock and medium hard rock.They adopt the high carbon steel and special drilling bits angle to keep the drilling strength and efficiency.

Super strength structure for shell,guide plate to increase the life cycle of bucket.

There are two types:single bottom and double bottom.Single bottom used for sand and gravel up to dense, weak rock.Double bottom can be used for medium hard rock.

The diameter series of buckets are standard sizes,other lengths and diameters can be supplied on request.

Alloy Steel Kelly Bar Foundation Drilling Tools Pull Water Suspended Material

Name Diamter (mm) Thickness (mm) Height (mm) Bullet teeth Teeth quantity(pcs)
drilling bucket of double bottom and double open with bullet teeth 600 16 1200 bullet teeth 8
700 16 1200 bullet teeth 10
800 16 1200 bullet teeth 10
900 16 1200 bullet teeth 10
1000 16 1200 bullet teeth 12
1200 16 1200 bullet teeth 12
1300 16 1200 bullet teeth 14
1400 16 1200 bullet teeth 17
1500 16 1200 bullet teeth 19
1600 16 1200 bullet teeth 19

Alloy Steel Kelly Bar Foundation Drilling Tools Pull Water Suspended Material

1. Lengthened straight bucket avoids drilling inclined hole.

2. Super strength structure for shell, guide plate, etc, increase the life cycle of bucket.

3. Staggered arrangement of rock drilling bits.

4. Guide strips arranged on the surface of bucket can avoid drilling tool sucked by the pressure.

5. A built-in ventilation pipe shaft prevents vacuum; add collar plate according to working conditions

Alloy Steel Kelly Bar Foundation Drilling Tools Pull Water Suspended Material

Alloy Steel Kelly Bar Foundation Drilling Tools Pull Water Suspended Material
