Foundation Tools Rock Core Barrel Bullet Teeth Good Performance Heat Treatment

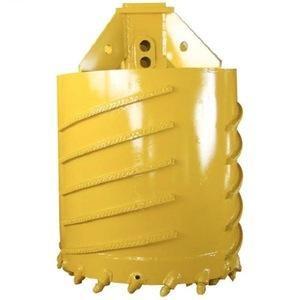

Core Barrels are used when conventional augers are less effective or in conjuction with tapered rock augers for very hard rock drilling.They are used to cut a ring in rock or concrete and slightly reinforce concrete. The center core of the rock or concrete is usually crushed with rock bits.The most important advantage of a core barrel is that it assists to concentrate the torque and crowd force on a small ring of cutting teeth.
The Core Barrel is designed with a thin cutting edge to maximise the penetration rate through less contact surface area having to be cut and removed.
Core Barrels range from diameter of 600mm - 3000mm and come fitted with a Kelly Box (drive hub) to suit your machine.
Core barrels are generally divided into two types:

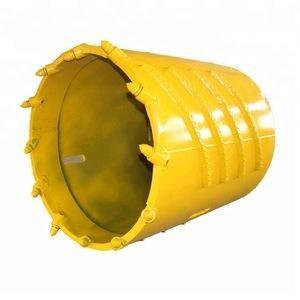

Core barrel with bullet bits (Applicable for strong rock up to 100Mpa or rock with deep cracks)
Core barrel with roller bits (Applicable for very strong rock formations with compressive strength greater than 100Mpa).
The diameter series of buckets are standard sizes,other lengths and diameters can be supplied on request.
Model | Cutting Dia. | Shell HIT. | Shell THK. | Stiffening Ring THK. | Stiffening Ring HIT. | Teeth No. | Weight |
Core Barrel with Bullet Teeth | φ600 | 1200 | 16 | 20 | 200 | 6 | 520 |
φ800 | 1200 | 16 | 20 | 200 | 9 | 672 | |
φ900 | 1200 | 16 | 20 | 200 | 10 | 750 | |
φ1000 | 1200 | 16 | 20 | 200 | 11 | 847 | |
φ1200 | 1200 | 16 | 20 | 200 | 13 | 1010 | |
φ1500 | 1200 | 16 | 20 | 200 | 16 | 1370 | |
φ1600 | 1200 | 16 | 20 | 200 | 17 | 1493 | |
φ1800 | 1000 | 20 | 20 | 200 | 19 | 1841 | |
φ2000 | 800 | 20 | 20 | 200 | 21 | 1852 | |
φ2200 | 800 | 20 | 20 | 200 | 23 | 2329 | |
φ2500 | 800 | 20 | 20 | 200 | 27 | 2705 | |
φ2800 | 800 | 20 | 20 | 200 | 30 | 3200 | |
φ3000 | 800 | 20 | 20 | 200 | 32 | 3800 |
Model | Size | Height | Bucket Thickness | Stiffening Ring Thickness | Stiffening Ring Thickness | No of teeth | Weight |
Core Barrel with Roller Bits | φ600 | 1200 | 16 | 20 | 200 | 4 | 545 |
φ700 | 1200 | 16 | 20 | 200 | 6 | 635 | |
φ800 | 1200 | 16 | 20 | 200 | 6 | 725 | |
φ900 | 1200 | 16 | 20 | 200 | 6 | 810 | |
φ1000 | 1200 | 16 | 20 | 200 | 8 | 900 | |
φ1100 | 1200 | 16 | 20 | 200 | 8 | 990 | |
φ1200 | 1200 | 16 | 20 | 200 | 9 | 1080 | |
φ1250 | 1200 | 16 | 20 | 200 | 9 | 1120 | |
φ1300 | 1200 | 16 | 20 | 200 | 9 | 1170 | |
φ1400 | 1200 | 16 | 20 | 200 | 10 | 1270 | |
φ1500 | 1200 | 16 | 20 | 200 | 10 | 1370 | |
φ1600 | 1200 | 16 | 20 | 200 | 10 | 1460 | |
φ1700 | 1000 | 20 | 20 | 200 | 11 | 1560 | |
φ1800 | 1000 | 20 | 20 | 200 | 12 | 1830 | |
φ1900 | 1000 | 20 | 20 | 200 | 12 | 1928 | |
φ2000 | 800 | 20 | 20 | 200 | 13 | 2050 | |
φ2200 | 800 | 20 | 20 | 200 | 14 | 2090 | |
φ2500 | 800 | 20 | 20 | 200 | 15 | 2420 | |
φ2800 | 800 | 20 | 20 | 200 | 16 | 3000 | |
φ3000 | 800 | 20 | 20 | 200 | 18 | 3500 |
1. Rock drilling bits perform stage breaking and drilling
2. Small barrel facilitates the coring operation; large barrel performs stage breaking
3. Eleasing rock confining pressure by barrel ring cutting
4. Adopt high quality large diameter alloy round drilling bucket pick block increases the strength and wear resistance
Applicable for Applicable for strong rock up to 100Mpa or rock with deep cracks.
