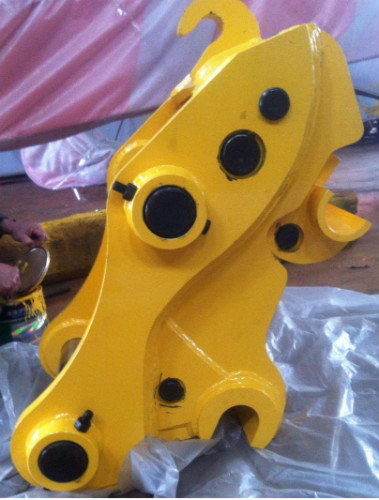

Loader Excavator Tilt Hitch Accessories 10-20 L/Min Oil Flow Electronic Drive System
Loader Excavator Tilt Hitch Accessories 10-20 L/Min Oil Flow Electronic Drive System
Loader Excavator Tilt Hitch Accessories 10-20 L/Min Oil Flow Electronic Drive System
Loader Excavator Tilt Hitch Accessories 10-20 L/Min Oil Flow Electronic Drive System
Loader Excavator Tilt Hitch Accessories 10-20 L/Min Oil Flow Electronic Drive System
Loader Excavator Tilt Hitch Accessories 10-20 L/Min Oil Flow Electronic Drive System
Specifications
Brand Name :
KonDaSin
Model Number :
KDK90
Certification :
ISO9001
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
Contact us
Supply Ability :
30 Set/Sets per Month
Delivery Time :
15 days
Packaging Details :
Wooden box packing
Name :
Quick coupling connector
Application :
Frequently change excavator tools
Required Oil Flow :
10-20 L/min
Type :
Excavator accessories
Usage :
Loader excavator tools
Suitable :
17-23 t Excavator
Description

Excavator Hitch Excavator Attachment Change Tool Easier More flexibility Save Cost
Loader Excavator Tilt Hitch Accessories 10-20 L/Min Oil Flow Electronic Drive System

1. Hydraulic quick coupling can deal with switching from bucket to hammer, bucket to ripper, grapple, hydraulic compactor flexibly.

2. Electronic drive system is installed in the cab,the expensive hydraulic pressure is replaced by the electric power,which save the cost from the production. Operators in the cab can easily turn on and turn off the quick hitch through the switch.

3. Check valve Protection System:each cylinder installed safety check valve ensures That quick hitch coupler can work when oil circuit and the circuit is cut off.

4. Safety Pin Protection System:security protection is customized for each excavator according to the different parameters. In the case of the failure of cylinder ,quick hitch coupler can work regularly.

Application excavator:
CAT , CASE, DAEWOO ,HITACHI , HYDUNDAI ,KOMATSU
SAMSUNG, VOLVO , KOBELCO, SANY, SUMITOMO

TAKEUCHI, KATO, DOOSAN, Kubota

IHI , LOVOL, SUNWARD, WORLD, LIEBHERR, Terex, Yuchai,

ZOOMLION, JCM, KAIYUAN, RONGSHENG, XUWA, XUGONG

Loader Excavator Tilt Hitch Accessories 10-20 L/Min Oil Flow Electronic Drive System

Model Unit KDK45 KDK50 KDK65 KDK80 KDK90 BYK100 KDK120
Overall Length Mm 388 534-545 600 765 924-944 983-1050 1006-1173
Overall Height Mm 246 307 310 388 492 574 558-610
Overall Width Mm 175 258-263 270-280 353-436 449-483 543-568 606-663
Pin to Pin Center Distance Mm 80-150 230-270 290-360 380-420 460-480 473-540 550-620
Forearm Open Width Mm 80-140 155-170 180-200 232-315 306-340 375-411 416-469

Retractable Distance

of Oil Cylinder

 Mm 170-206 205-275 340-450 340-486 256-390 413-590 520-590
Top to Bottom Pin Distance Mm 159 195 195 220 275 300 360
Pin Diameter Mm 25-40 45-50 50-55 60-70 70-80 80-90 90-120
Weight Kg 25 50-60 80 120-130 280-290 420-430 450-580
Working Pressure Kg/cm2 40-380 40-380 40-380 40-380 40-380 40-380 40-380
Required Oil Flow L/min 10-20 10-20 10-20 10-20 10-20 10-20 10-20
Suitable Excavator Ton 1.5-4 4-7 5-8 9-19 17-23 23-30 33-45

Loader Excavator Tilt Hitch Accessories 10-20 L/Min Oil Flow Electronic Drive System

1. Application: For quick change of all kinds of excavator accessories (such as bucket, breaker, shear, etc). With fast installation and high efficiency

2. Quick hitch available for variety of excavators
3. Reliability and safety

4. High efficiency
5. Advanced manifacturing process and production technology

Loader Excavator Tilt Hitch Accessories 10-20 L/Min Oil Flow Electronic Drive System

Application: For quick change of all kinds of excavator accessories (such as bucket, breaker, shear, etc). With fast installation and high efficiency.

Loader Excavator Tilt Hitch Accessories 10-20 L/Min Oil Flow Electronic Drive System
