Specifications
Brand Name :
KonDaSin
Model Number :
219mm, 260mm, 300mm or as required
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 Meter/Meters per Quarter tremie pipes
Delivery Time :
8 working days
Packaging Details :
plastic film
Certification :
ISO9001
Name :
Piling tremie pipe
Application :
Grouting purpose
Material :
Steel pipe
Diameter :
219mm, 260mm, 300mm or as required
Type :
Threaded /Wire Cable
Accessories :
Hopper, Connections, Turning plate
Description

Wear Resistant Drilling Rig Tools , Borehole Drilling Tools Threaded Wire Cable
Wear Resistant Drilling Rig Tools , Borehole Drilling Tools Threaded Wire Cable

The tremie concrete placement method uses a pipe, through which concrete is placed below water level.The lower end of the pipe is kept immersed in fresh concrete so that the rising concrete from the bottom displaces the water without washing out the cement content.

Tremie pipes are made of quality drawn steel plates in order to guarantee high resistance elements.

There are two types of connectors: threaded and wire cable joints. Threaded tremie pipe are equipped with male/female joints,wire cable is designed for quick assembly /dismounting of the various pipe sections during the concreting operations. Using wire cables joints water and mud penetration is prevented by O-ring seals applied in between male and female joints.

Wear Resistant Drilling Rig Tools , Borehole Drilling Tools Threaded Wire Cable

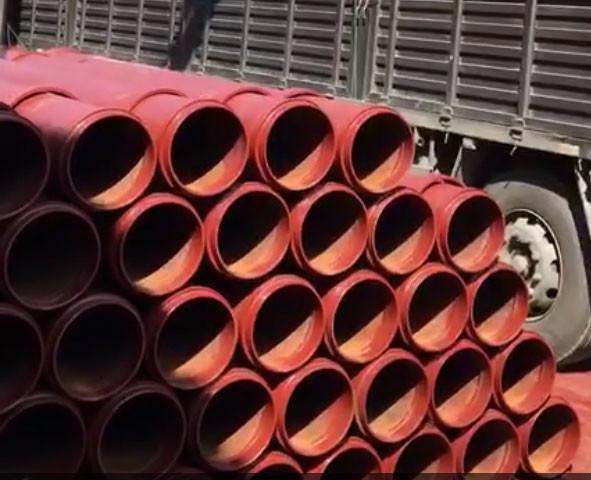

Product Name Tremie Pipe
Material 20# steel
Technique Welding (casting for the joints)
Joint Threaded or wire cable
Diameter (mm) Length (m) Thickness (mm) Funnel (CBM) Platform (m)
219 0.5/1/1.5/2/3/4 3.2 0.25/1/1.5/2/3/4/5/10 1.5/2/2.5/3
260 0.5/1/1.5/2/3/4 3.2 0.25/1/1.5/2/3/4/5/10 1.5/2/2.5/3
288 0.5/1/1.5/2/3/4 3.2 0.25/1/1.5/2/3/4/5/10 1.5/2/2.5/3
300 0.5/1/1.5/2/3/4 3.2 0.25/1/1.5/2/3/4/5/10 1.5/2/2.5/3
350 0.5/1/1.5/2/3/4 3.2 0.25/1/1.5/2/3/4/5/10 1.5/2/2.5/3

Type

a). Threaded joint tremie pipe

b). Wire cable joint tremie pipe

Accessories

1. Funnel: to pour concrete through the tremie pipe;

2. Lifting swivel: to help the lifting lowering operations;

3. Chain spanner: for tightening and unscrewing of threaded joints;

4. Fork spanner for wire release system;

5. Anti-slippery platform equipped with a pipe clamping system to prevent pipes from falling into the holes;

6. Container rack: to stock pipes and to make easy the moving from one jobsite to another.

Wear Resistant Drilling Rig Tools , Borehole Drilling Tools Threaded Wire Cable

Tremie pipe are used for pouring slurry into pile hole pipe
