High Precision Guided Boring Machine , Underground Boring Equipment 600mm Drill Dia
High Precision Guided Boring Machine , Underground Boring Equipment 600mm Drill Dia
High Precision Guided Boring Machine , Underground Boring Equipment 600mm Drill Dia
High Precision Guided Boring Machine , Underground Boring Equipment 600mm Drill Dia
High Precision Guided Boring Machine , Underground Boring Equipment 600mm Drill Dia
High Precision Guided Boring Machine , Underground Boring Equipment 600mm Drill Dia
Specifications
Brand Name :
KonDaSin
Model Number :
GBM-600
Certification :
ISO9001
Place of Origin :
china
MOQ :
1
Price :
USD250000unit
Supply Ability :
5units per month
Delivery Time :
30 days
Packaging Details :
40" GP
Name :
Horizontal drilling auger machine
Maximum Torque :
28000 Nm
Maximum pressure :
31.5 bar
Drilling Diameter :
600mm
Sliding base stroke :
560mm
Application :
Underground crossing drilling
Description

Pipe Jacking Machine Guided Boring Machine High Precision Reliable Performance

High Precision Guided Boring Machine , Underground Boring Equipment 600mm Drill Dia

The construction efficiency of GBM600 guided boring machine is high, the precision is high, the operation is simple,the performance is reliable, and the construction quality meets the design requirements.

This hydraulic machine is designed for the pipe diameter within 600mm, generally used in the construction of cement pipe crossings, building houses translation, sewers, roads and rivers as a sheathing of other projects across a variety of channels. It is especially fit for non-excavation of casing steel pipes or semi-tubular pipes for sewage pipes, rain and sewage diverting pipes and heat pipes.

The lightweight compact machine is disassembled structure which makes occupation smaller so it is suitable in narrow areas of urban roadways.

High Precision Guided Boring Machine , Underground Boring Equipment 600mm Drill Dia

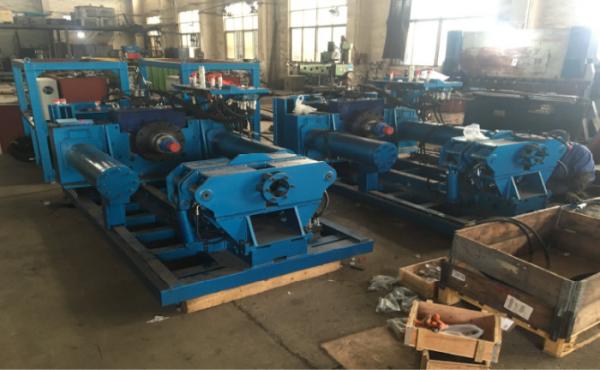

GBM600 host
Maximum torque 28000 Nm
Maximum pressure 31.5 bar
Maximum speed 38 rpm
Maximum thrust 1250kN
Sliding base stroke 560mm
Forward forward 200mm
Equipment weight 4000Kg
Center height 750mm
Drilling diameter 800 mm
Length 3800mm
Width 1700mm
GBM hydraulic pumping station
Motor power 75kW
Maximum pressure 250 bar
Fuel tank capacity 300L
Pump station weight 2000 kg
length 2100 mm
Width 1100 mm
Height 1550 mm

Three construction steps of GBM

Step 1: laser guided drilling

High Precision Guided Boring Machine , Underground Boring Equipment 600mm Drill Dia

Step 2: auger drilling and unloading slag

High Precision Guided Boring Machine , Underground Boring Equipment 600mm Drill Dia

Step 3: Replace the cement pipe

High Precision Guided Boring Machine , Underground Boring Equipment 600mm Drill Dia

High Precision Guided Boring Machine , Underground Boring Equipment 600mm Drill Dia

1. Engine energy saving and environmental protection, strong power.

2. Operation is simple, performance is reliable, the whole process maintains the horizontal straightness ± 50mm,greatly improving the construction efficiency.

3. The foundation pit equipment submitted small, light weight, large thrust.

4. Machine head can be selected according to different layers to achieve optimal construction performance.

High Precision Guided Boring Machine , Underground Boring Equipment 600mm Drill Dia

They are used in the construction of cement pipe crossings, building houses translation, sewers, roads and rivers as a sheathing of other projects across a variety of channels.Suitable for geological construction of sand, silt, hard soil and clay.

High Precision Guided Boring Machine , Underground Boring Equipment 600mm Drill Dia

High Precision Guided Boring Machine , Underground Boring Equipment 600mm Drill Dia
