Jet Grouting Accessories Drilling Rig Tools Drill Rod Drill Bit Water Swivel Pad Fork
Jet Grouting Accessories Drilling Rig Tools Drill Rod Drill Bit Water Swivel Pad Fork
Jet Grouting Accessories Drilling Rig Tools Drill Rod Drill Bit Water Swivel Pad Fork
Jet Grouting Accessories Drilling Rig Tools Drill Rod Drill Bit Water Swivel Pad Fork
Jet Grouting Accessories Drilling Rig Tools Drill Rod Drill Bit Water Swivel Pad Fork
Jet Grouting Accessories Drilling Rig Tools Drill Rod Drill Bit Water Swivel Pad Fork
Jet Grouting Accessories Drilling Rig Tools Drill Rod Drill Bit Water Swivel Pad Fork
Jet Grouting Accessories Drilling Rig Tools Drill Rod Drill Bit Water Swivel Pad Fork
Specifications
Brand Name :
KonDaSin
Model Number :
50mm,60mm,73mm,89mm
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 Meter/Meters per Quarter tremie pipes
Delivery Time :
8 working days
Packaging Details :
plastic film&wooden case
Certification :
ISO9001
Name :
Jet grouting drilling accessories
Application :
Grouting
Material :
Alloy Steel
Diameter :
50mm,60mm,73mm,89mm
Useg :
Delivery serous fluid,water and compress air
Diameter of nozzles :
1.6-3.0mm
Description

Jet Grouting Accessories Drilling Tool Drill Rod Drill Bit Water Swivel Pad Fork
Jet Grouting Accessories Drilling Rig Tools Drill Rod Drill Bit Water Swivel Pad Fork

We have high pressure jet grouting tools,they can delivery serous fluid,water and compress air.

The jet grouting tools consist of drilling rods,water swivel,drill bits,lock device,loose proof device,pad fork and so on.

Main jet grouting tools.

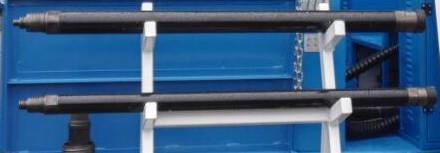

(1) drill rod.

Selecting the steel from shanghai Baoshan and different diameters with single,double and triple tube.And the joint takes superior alloy steel as it raw material.

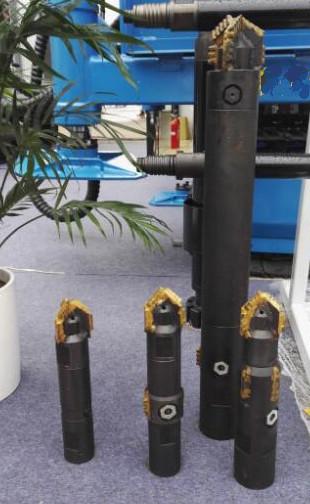

(2) jet grouting bits.

The triple grouting bits are equipped with three single jet nozzles so as to spray the high pressure water.

(3) water swivel

It is a sort of jet grouting tools installed in the end of power head core tube and can bear certain tension force and impact force.

This is a device for conveying high-pressure mud pump, air compressor and high-pressure clear water to deliver high-pressure slurry, compressed air and high-pressure water into drill rods.

(4) Loose proof device

It consists of cotter pin and locker wash to eliminate the possibility of relative rotation between them and it is a kind of safety device installed in the water swivel which will be mounted on the water swivel.

(5) Pad fork

It is a kind of tools wrench drill rods.

Jet Grouting Accessories Drilling Rig Tools Drill Rod Drill Bit Water Swivel Pad Fork

50mm single tube

60mm single tube

60mm double tube

73mm double tube

73mm triple tube

89mm triple tube

Jet Grouting Accessories Drilling Rig Tools Drill Rod Drill Bit Water Swivel Pad Fork

Jet grouting tools are mostly used for conveying medium such as slurry, compressed air and clean water.

Jet Grouting Accessories Drilling Rig Tools Drill Rod Drill Bit Water Swivel Pad Fork

Jet Grouting Accessories Drilling Rig Tools Drill Rod Drill Bit Water Swivel Pad Fork
