Steel Body Well Drilling Tools Reaming Shell Polycrystalline Diamond Carbide Powder
Steel Body Well Drilling Tools Reaming Shell Polycrystalline Diamond Carbide Powder
Steel Body Well Drilling Tools Reaming Shell Polycrystalline Diamond Carbide Powder
Steel Body Well Drilling Tools Reaming Shell Polycrystalline Diamond Carbide Powder
Specifications
Brand Name :
KonDaSin
Model Number :
BQ,NQ,HQ,PQ
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
4000 Piece/Pieces per Month
Delivery Time :
8 working days
Packaging Details :
wooden case
Certification :
ISO9001
Name :
Reaming shell
Material :
Steel Body, Polycrystalline Diamond And Carbide Powder
Use :
Metal Drilling
Application :
Coal mining, water well drilling
Standard :
DCDMA
Description

Reaming Shell Drilling Tools Steel Body Polycrystalline Diamond Carbide Powder
Steel Body Well Drilling Tools Reaming Shell Polycrystalline Diamond Carbide Powder

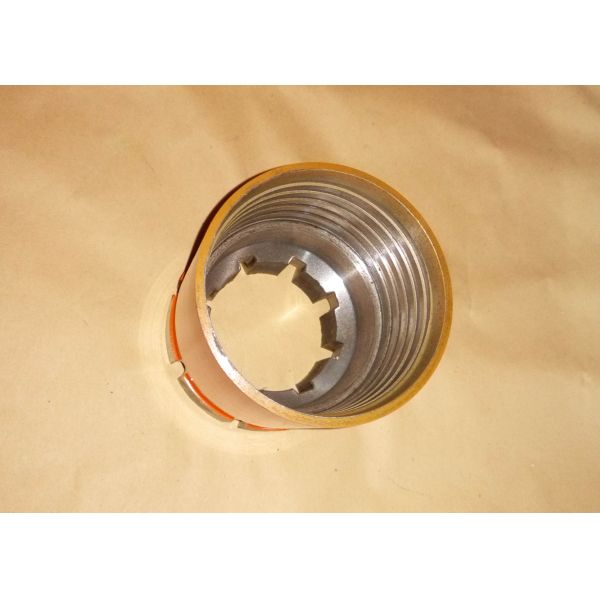

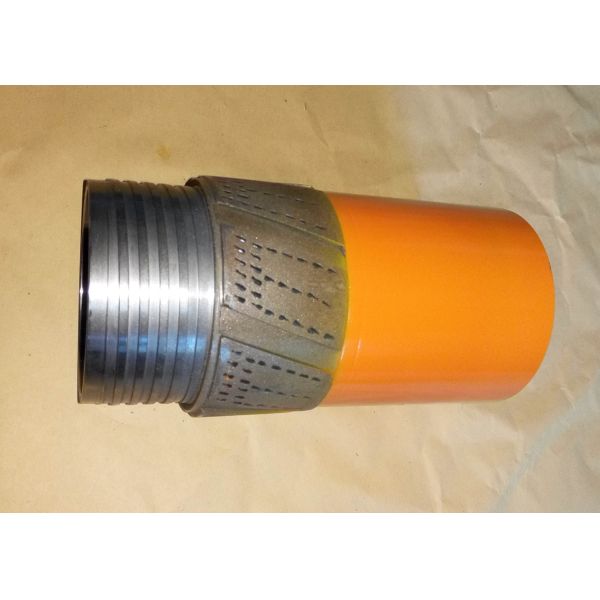

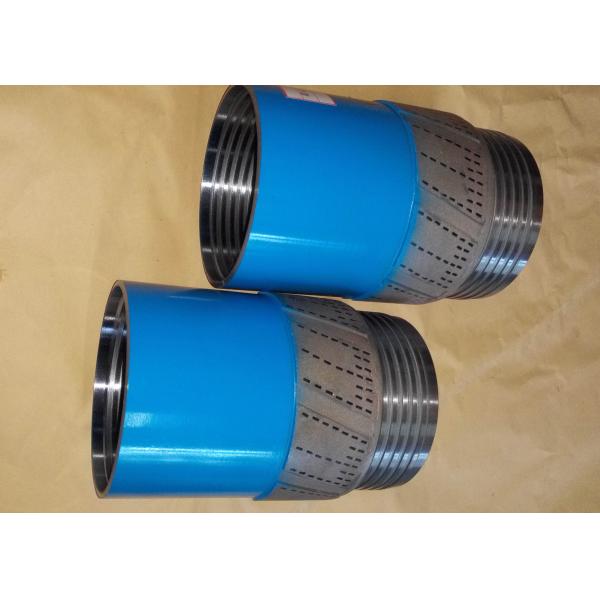

The reaming shell is mainly used to connect core barrel assembly with diamond drill bit, and it is lined with natural or synthetic diamond. It can clean drill holes and keep these holes clean.

It can also be used as a stabilizer for drill bit,capable of protecting hole diameters of drill bits from damaging.

Spiral design is used for the reaming shell, and it has good water passing and powder discharging capacity. And it can be used in the drilling of various strata.

This reaming shell is mainly made up of steel body, polycrystalline diamond and carbide powder.
Steel Body Well Drilling Tools Reaming Shell Polycrystalline Diamond Carbide Powder

Specifications Outer diameter Inner diameter Lengthof thread
56 56 44 40
59 59.5 47 40
75 75 60.6 40
95 95 78 40

Single-tube Reaming Shell:

Specifications Outer diameter Inner diameter Lengthof thread
56 56 44 40
59 59.5 47 40
75 75 60.6 40
95 95 78 40

Double-tube Reaming Shell:

Specifications Outer diameter Inner diameter Length of thread
56 56 46 30
59 59.5 49 30
75 75 64 30
91 91 78 30
110 110 95 40
130 131 114 40

Steel Body Well Drilling Tools Reaming Shell Polycrystalline Diamond Carbide Powder
1. Excellent technology and high quality.
2. Long service life.
3. it can be used in the drilling of various strata.
4. Combination of natural and synthetic diamonds embedded in sections

5. Ring completely covered with diamonds


Steel Body Well Drilling Tools Reaming Shell Polycrystalline Diamond Carbide Powder
Steel Body Well Drilling Tools Reaming Shell Polycrystalline Diamond Carbide Powder
Steel Body Well Drilling Tools Reaming Shell Polycrystalline Diamond Carbide Powder
