Engineering Geological Core Drill Rig Machine Prospect Foundation Pile Construction
Engineering Geological Core Drill Rig Machine Prospect Foundation Pile Construction
Engineering Geological Core Drill Rig Machine Prospect Foundation Pile Construction
Engineering Geological Core Drill Rig Machine Prospect Foundation Pile Construction
Specifications
Brand Name :
KonDaSin
Model Number :
GYQ200
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50sets/one year
Delivery Time :
7 working days
Packaging Details :
In 20′container
Name :
Exploration core drilling machine
Usage :
Core sample,small water well
Hole depth :
200m
Dimension :
1860*780*1460mm
Stroke :
500mm
Spindle feed force :
36kN
Diesel engine :
17.6 kW,1800 r/min
Weight(without power unit) :
800 KG
Description

Engineering Geological Core Machine Prospect Foundation Pile Construction
Engineering Geological Core Drill Rig Machine Prospect Foundation Pile Construction

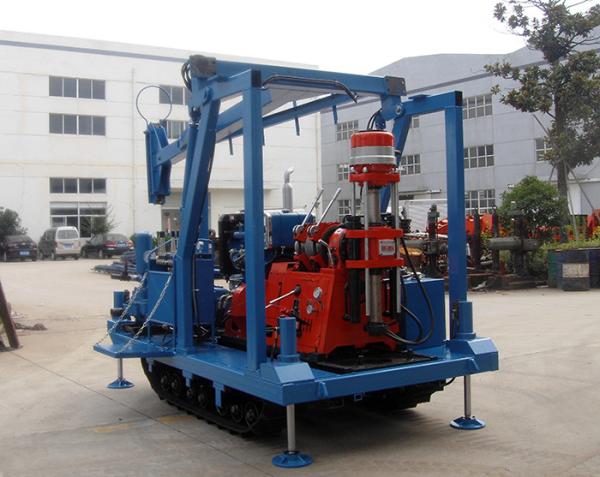

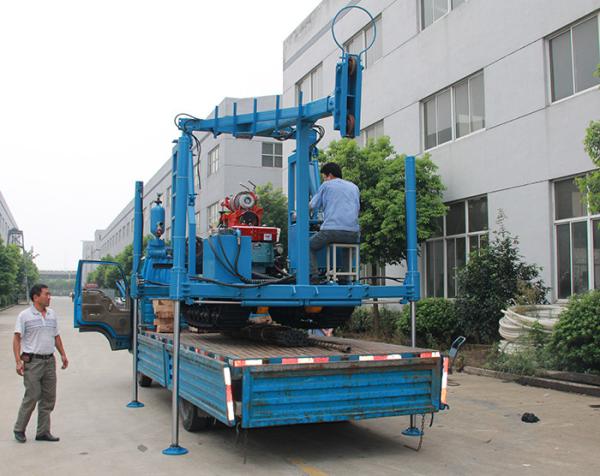

Model GYQ-200 drilling rig is a kind of spindle rotatory drilling rig,it is suitable for engineering geological prospecting, solid mineral’s survey and exploration, foundation pile construction,also suitable for exploring core mine.
It is convenient for you to treat trouble with two reverse speeds,easy to master the hole condition with a long life anti-vibration instrument.
There are more speed grade (8 grades), reasonable speed range and high torque while low speed. Max. torque is up to 2760 N·m .
The rig can be applicable to the low speed big diameter drilling besides the rapid speed drilling.
Engineering Geological Core Drill Rig Machine Prospect Foundation Pile Construction

Hole depth 200m
Rod dia Φ63mm drive rod
Hole angle(°) 360°
Spindle speed Forward speed:55;96;152;210;262;455;718;990rpm
Reverse speed:44/206rpm
Stroke of spindle 500mm
Max .lifting capacity 49KN
Max .feeding capacity 36KN
Max .distance from the spindle lower to the earth surface 600mm
Hoist Max .lifting capacity
(single line):		 25KN
Dum speed 34,59,94,129rpm
Lifting speed: 0.38;0.66;1.05;1.44m/s
Move back cylinder device Cylinder stroke 465mm
Move back distance 330mm
Weight 800kg (not including engine)
Dimensions (L×W×H) 1860*780*1460mm
POWER Y160L-4 electric motor Power:15kw, 1470rpm
2100 diesel Power:17.6kw, 1800rpm

Engineering Geological Core Drill Rig Machine Prospect Foundation Pile Construction

1. The rig and water pump is seperated, drilling rig is equipped with a separate power, can improve the output torque of the drill, especially the pump lose power in the deep hole, avoiding accidents in the hole.
2. The rig can be applicable to the low speed big diameter drilling besides the rapid speed drilling.
3. Drill rod:63x59 drilling rod adopted,high rigidity and strong delivery torque.
4. Mud pump:Equip mud pump with flow 160L/min,save cost and also make the structure compact.

Engineering Geological Core Drill Rig Machine Prospect Foundation Pile Construction
