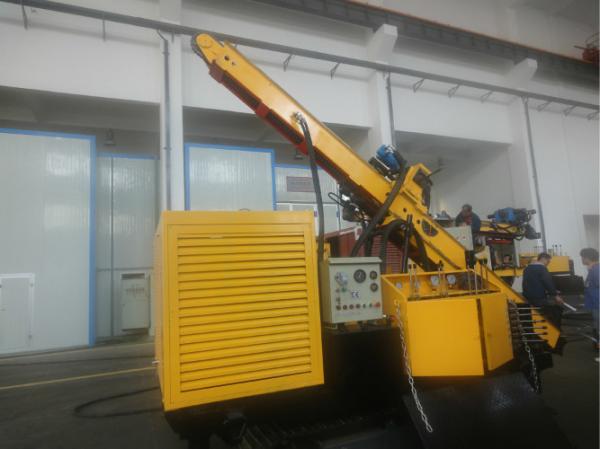

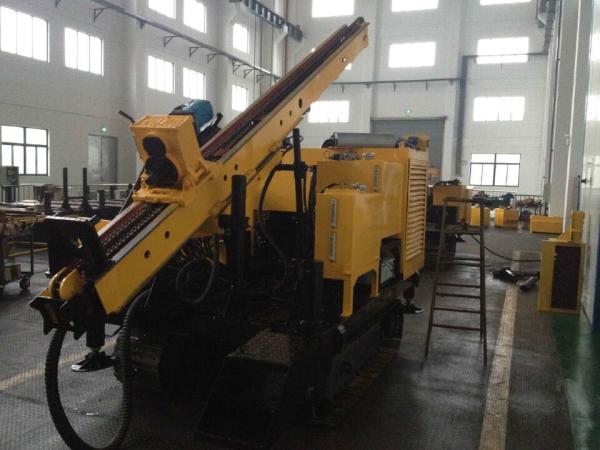

Yellow Color Grouting Machine For Conveying Slurry , Compress Air And Water
Yellow Color Grouting Machine For Conveying Slurry , Compress Air And Water
Yellow Color Grouting Machine For Conveying Slurry , Compress Air And Water
Yellow Color Grouting Machine For Conveying Slurry , Compress Air And Water
Yellow Color Grouting Machine For Conveying Slurry , Compress Air And Water
Yellow Color Grouting Machine For Conveying Slurry , Compress Air And Water
Specifications
Brand Name :
KonDaSin
Model Number :
YG(L）-20X
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
50 Set/Sets per Year
Delivery Time :
7 working days
Packaging Details :
20" container with tools
Type :
Jet grouting machine
Usege :
Grouting purpose
Hole Dept :
50-30 m
Hole Diameter :
Φ90~150 mm
Diesel engine power :
26 kw
Weight :
1800/3500kg
Description

Jet Routing Machine Anchor Drilling Rig For Grouting Purpose Single Double Tube

Yellow Color Grouting Machine For Conveying Slurry , Compress Air And Water

This grouting machien is used for conveying slurry,compress air and water.

It can be applied in direction jet-grouting, pendulum jet-grouting, circulation jet-grouting work, and used for high pressure jet-grouting work in Quaternary Cover Area such as soil, sand, pebbly sand and so on. It also can be applied for anti-handling of infiltration and seepage of industrial, urban and civil building construction, high building basement, and hydraulic engineering, such as roadbed, bridges, dam foundation and subway, etc.;

The drilling rig can apply singe pipe, duplex pipe, triplex pipe tools and so on.

Yellow Color Grouting Machine For Conveying Slurry , Compress Air And Water

Hydraulic Jet-grouting Drilling Rig YG-20X (Skid) YGL-20X (Crawler)
Total Weight kg 1800 3500

Length x Width x Height

(Reduce Type)

 m 3.7×1.1×1.4 4.9×2.0×1.9

Length x Width x Height

(Work Type)

 m 2.8×1.1×3.75 3.5×2.0×5.0
Engine Model Y180L-4 + Y112M-4 (electromotor)
Power kW 22 + 4
Nominal Borehole Depth m 30～50
Borehole Diameter mm 150～90
Hole Angle Range degree -90～-5
Drill Head Rotary Speed rpm 0~17(stepless);0~40(stepless);53;70;130;170
Drill Head Max. Torque N.m 2800
Feeding Stroke mm 2300 (Drill pipe: 2m) 3500 (Drill pipe: 3m)
Thrust Force kN 30
Lifting Capcity KN 45
Lifting Speed m/min 0～2.4(stepless),4.3,30
Optional
1 Pendulum Jetting Device

Automatically electric control

Pendulum adjusting available
2 Crawler Chassis Walking Speed m/min 15
Unit Pressure MPa ＜0.05
Climb Ability degree ≤20
3 Hydraulic Winch Lifting Capcity KN 12
4 Triplex Pipe Drill Head

Yellow Color Grouting Machine For Conveying Slurry , Compress Air And Water

1. Applicable for wide range of layers,the drilling rig has a variety of drilling methods, like: Dry-auger, DTH hammer impacting, ODEX tools casing following, etc.

2. The drilling rig can apply singe pipe, duplex pipe, triplex pipe tools and so on. Optional pendulum jetting device can be added to achieve the pendulum jet-grouting function.
3. The drilling rig has various chassis mode like skid mounted, crawler mounted, step walk mounted and so on. Depending on customer’s requirement, customer can decide to choose which chassis by himself.

Yellow Color Grouting Machine For Conveying Slurry , Compress Air And Water

Yellow Color Grouting Machine For Conveying Slurry , Compress Air And Water
