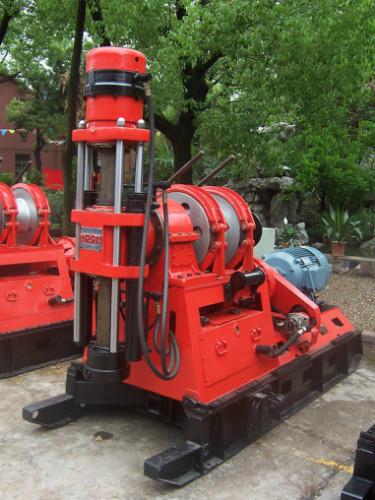

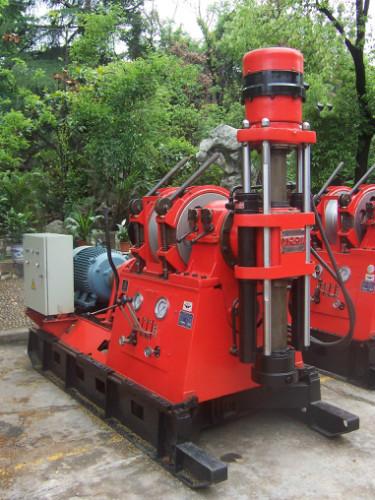

Mechanical Water Well Machine Core Drill Rig Spindle One Bored Construction Pile
Mechanical Water Well Machine Core Drill Rig Spindle One Bored Construction Pile
Mechanical Water Well Machine Core Drill Rig Spindle One Bored Construction Pile
Mechanical Water Well Machine Core Drill Rig Spindle One Bored Construction Pile
Specifications
Brand Name :
KonDaSin
Model Number :
GYQ200A
Certification :
ISO9001
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50sets/one year
Delivery Time :
7 working days
Packaging Details :
In 20′container
Name :
Exploration drilling machine
Usage :
Core sample,small water well
Hole depth :
200m
Hole diameter :
150-75mm
Stroke :
500mm
Spindle feed force :
36kN
Diesel engine :
17.6 kW,1800 r/min
Weight(without power unit) :
900 KG
Description

Mechanical Water Well Machine Core Drill Rig Spindle One Bored Construction Pile
Mechanical Water Well Machine Core Drill Rig Spindle One Bored Construction Pile
The drilling rig can be used not only in core drilling,bored construction pile, but also in water well.The Spindle I.D. is 78mm.

The new type drill unites the tower and machine body,the tower can directly pull down the steel cages.
The drill can be used in drilling technologies of reverse circulation in the hard rock stratum and ground.

Oil cylinders of the drill can raise or pull down the tower safely and quickly, move and fit the hole position conveniently.
Mechanical Water Well Machine Core Drill Rig Spindle One Bored Construction Pile

Hole depth200-400mRod dia300mm
Hole depth50-100mRod dia500mm


Hole depth


20-50m

Rod dia1000mm


Hole angle(°)

360°
Spindle speed1500rpm
Stroke of spindle600mm
Max .lifting capacity72KN
Max .feeding capacity54KN
Hoist

Max .lifting capacity
(single line):

29KN
Lifting speed:0.82;1.53;2.16;3.13m/s


Power

Electric motor:37kw,1480rpm/30kw,980rpm
Diesel engine40kw,2000rpm
Retraction device stroke (mm)520
Weight2000kg
Dimensions (L×W×H)2700×1000×1750mm

Mechanical Water Well Machine Core Drill Rig Spindle One Bored Construction Pile

1. The new type drill unites the tower and machine body.
2. The tower can directly pull down the steel cages.
3. The drilling rig can be used not only in core drilling, bored construction pile,but also in water well.
4. Oil cylinders of the drill can raise or pull down the tower safely and quickly, move and fit the hole position conveniently.
5. The drill can be used in drilling technologies of reverse circulation in the hard rock stratum and ground.

Mechanical Water Well Machine Core Drill Rig Spindle One Bored Construction Pile
