Water well and Core Drilling rig XYT-200 Depth 280m Max Drilling Diameter 380mm trailer or crawler type
Water well and Core Drilling rig XYT-200 Depth 280m Max Drilling Diameter 380mm trailer or crawler type
Water well and Core Drilling rig XYT-200 Depth 280m Max Drilling Diameter 380mm trailer or crawler type
Water well and Core Drilling rig XYT-200 Depth 280m Max Drilling Diameter 380mm trailer or crawler type
Water well and Core Drilling rig XYT-200 Depth 280m Max Drilling Diameter 380mm trailer or crawler type
Water well and Core Drilling rig XYT-200 Depth 280m Max Drilling Diameter 380mm trailer or crawler type
Water well and Core Drilling rig XYT-200 Depth 280m Max Drilling Diameter 380mm trailer or crawler type
Water well and Core Drilling rig XYT-200 Depth 280m Max Drilling Diameter 380mm trailer or crawler type
Specifications
Brand Name :
SINOVO
Model Number :
XYT-200
Certification :
CE/GOST/ISO9001
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T&L/C
Delivery Time :
ON STOCK

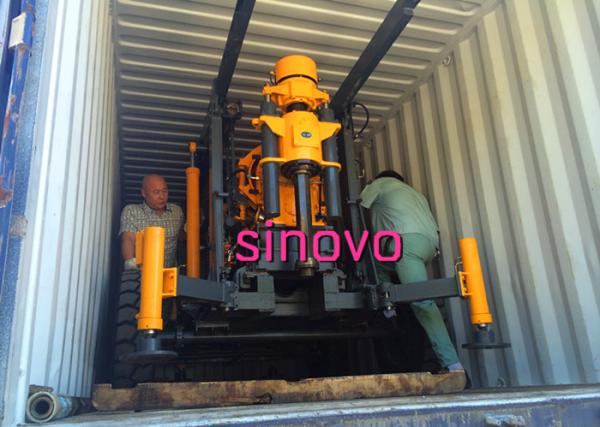

Packaging Details :
Export Package
Application :
Water well, Exploration, Taking core, SPT, anchor ect
Drilling depth :
280m
Drilling diameter :
60mm-380mm
Rod diameter :
50mm
Drill accessories :
AQ BQ NQ HQ PQ, AW BW NW HW PW. overshot,
Power type :
Diesel or electric motor
Description

Core Drilling Rig XYT-200 drilling depth 280m max drilling diameter 380mm

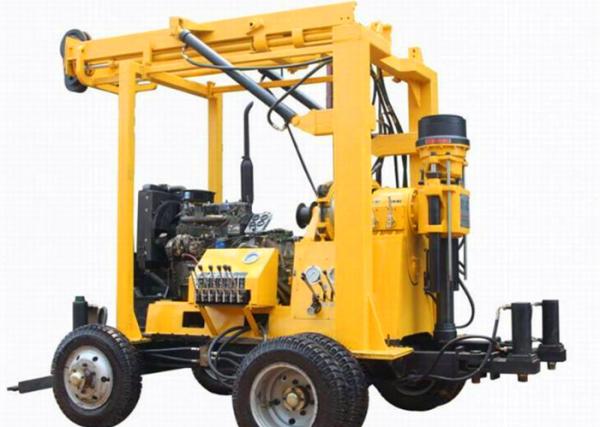

XYT-200 core drilling rig is mounted on trailer with four hydraulic jacks, self-erect mast by hydraulic control, it is used for core drilling,soil investigation, small water well and diamond bit drilling with wire line coring technique.

Main Features

  • The rig is in higher rotational speed and rational range of rotational speed; large torque in low speed.
  • The drill is suitable in the mountain area because of light weight for easy transport and convenient disassembly (to be disassembled into nine parts).
  • With compact structure and reasonable layout, and all exposed, non overlapped components, it is easier for maintenance and repair.
  • It is convenient for you to treat trouble with two reverse speeds. With low center of gravity, the rig is reliable and stable in high speed drilling.
  • The operation levers are concentrated, so the operations are reliable and convenient.
  • Fitted with meters, the circumstances can be controlled easily in hole.
  • The transmission is separately driven for drill rig and mud pump; it is easier for the location arrangement with less space occupying.

Specification:

Unit XYT-200
Drilling depth m 280
Drilling diameter mm 60-380
Rod diameter mm 50
Drilling angle º 0-90
Overall dimension mm 5500*2200*2300
Rig weight kg 3320
Skid
Rotation unit
Spindle speed
Co-rotation r/min 88,197,296,399,655,888
Reverse rotation r/min 66,147
Spindle stroke mm 510
Spindle pulling force KN 49
Spindle feeding force KN 29
Maximum output torque N.m 1700
Hoist
Lifting speed m/s

0.31,0.72,1.06
Lifting capacity KN 20
Cable diameter mm 12
Drum diameter mm 170
Brake diameter mm 296
Brake band width mm 60

Water well and Core Drilling rig XYT-200 Depth 280m Max Drilling Diameter 380mm trailer or crawler type
