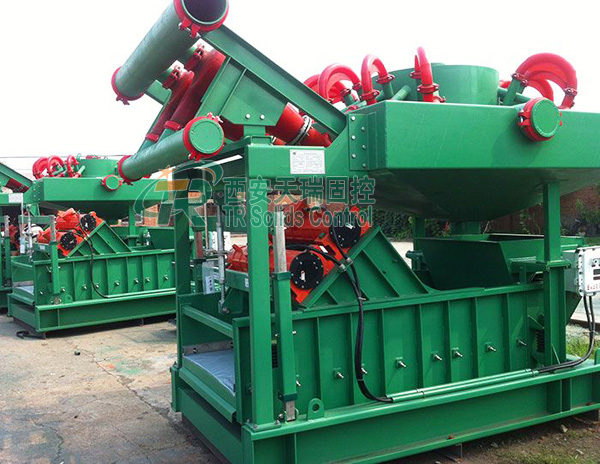

Reliable Drilling Fluids Equipment Mud Cleaning Systems with 20nos Desilter
Reliable Drilling Fluids Equipment Mud Cleaning Systems with 20nos Desilter
Reliable Drilling Fluids Equipment Mud Cleaning Systems with 20nos Desilter
Reliable Drilling Fluids Equipment Mud Cleaning Systems with 20nos Desilter
Specifications
Brand Name :
TR Solids Control
Model Number :
TRQJ250*3S-100*20N
Certification :
API Certificate, ISO9001 Certificate
Place of Origin :
Xi'an,China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
30 Sets / Month
Delivery Time :
Within 20 days after deposit
Packaging Details :
Pallet or wooden case
Capacity :
320m3/h
Desander cyclone specs :
10"
Desander cyclone qty :
3nos
Desilter cyclone specs :
4"
Desilter Qty :
20nos
Working pressure :
0.25-0.4Mpa
Inlet size :
DN200mm
Outlet size :
DN250mm
Separation point :
15-44um
Bottom Shaker :
TRZS703/N/A
Weight :
2350kg
Dimension :
2419*2150*2147mm
Description

Reliable Performance Drilling Fluids Mud Cleaner with High Efficiency and Long Lifespan

Introduction

Mud cleaner is the second and third stage solids control equipment for handling drilling fluid. TR drilling mud cleaner covers desander, desilter and underflow shale shaker. It has higher purification function compared with separate desander and desilter. Except reasonable design process, it equals another shale shaker. TR mud cleaner is an excellent device in your solids control system.

Specialties of TRQJ Series Mud Cleaner

1. Environmental Protection
TR mud cleaner offers efficient removal of sand and silt particles larger than 20 microns, and some as small as 15 microns. Removing and drying drilled solids helps it to meet environmental regulations by minimizing waste generated and reducing disposal cost.
2. High Power
Processing capacity of 1,000 gpm with the 2-12 desander and 900 gpm with the desilter concentrating solids onto a classification shaker.
3. All purpose
TR mud cleaner can be operated with the 2-12 desander, desilter or both to process weighted or unweighted fluid systems.
4. Prolong Service Life
TR mud cleaner helps minimize maintenance, repair and replacement of downstream equipment.
5. Reduces Operating Cost
TR mud cleaner reduces sand, silt-size particles and saves liquid, thus reducing mud cost, chances of stuck pipe and lost circulation and improving rate of penetration.
6. Decreases Disposal Cost
TR mud cleaner minimizes waste generated thus reducing disposal cost.

Technical Data of TRQJ Series Mud Cleaner

Model TRQJ200×1S-100×4N TRQJ200×2S-100×8N TRQJ250×2S-100×12N TRQJ25×3S-100×20N
Capacity 60m³/h 120m³/h 240m³/h 320m³/h
Desander Cyclone Specs 8" 10"
Desander Cyclone Qty 1 2 2 3
Desilter Cyclone Specs 4"
Desilter Cyclone Qty 4 8 12 20
Working Pressure 0.25～0.4mpa
Inlet Size DN125mm DN150mm DN150mm DN200mm
Outlet Size DN150mm DN200mm DN200mm DN250mm
Separation Point 15μm～44μm
Bottom Shaker TRZS60 TRZS752 TRZS752 TRZS703
Dimension 1.51×1.16×2.0m 1.835×1.23×1.81m 1.835×1.23×1.81m 2.42×2.15×2.15m
Weight 600kg 980kg 1250kg 2350 kg
Remark All mud cleaners could be customized without bottom shaker.

Reliable Drilling Fluids Equipment Mud Cleaning Systems with 20nos Desilter

Application

TRQJ series mud cleaner is widely used in city bored piling, oil & gas drilling, tunneling construction, Drilling Waste Management, trenchless HDD, environment protection, Oil Mud Seperation, mining, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Water Drilling etc.

Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
