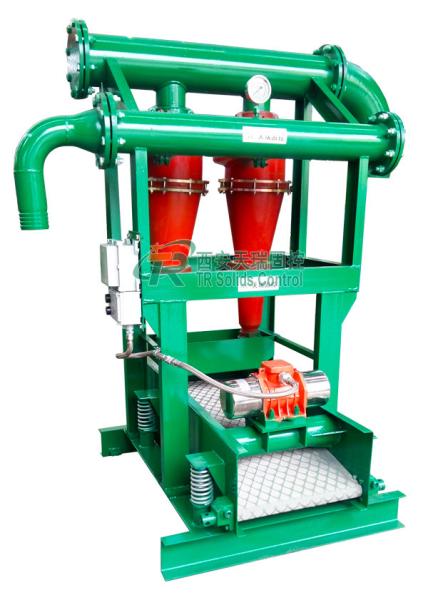

570KG / 620KG Filtering Desander Unit / Solids Control Desanding Machine
570KG / 620KG Filtering Desander Unit / Solids Control Desanding Machine
570KG / 620KG Filtering Desander Unit / Solids Control Desanding Machine
570KG / 620KG Filtering Desander Unit / Solids Control Desanding Machine
Specifications
Brand Name :
TR Solids Control
Model Number :
TRCS200-1S/2S
Certification :
API certificate, ISO9001 certificate
Place of Origin :
Xi'an,China
MOQ :
1 Pc
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
200 Pcs / Month
Delivery Time :
Within 20 days after deposit
Packaging Details :
Pallet or wooden case
Capacity :
60m3/120m3/h
Hydrocyclone Specs :
8"
Hydrocyclone Qty :
1pcs/2pcs
Working pressure :
0.25-0.4Mpa
Inlet diameter :
DN125mm
Outlet diameter :
DN150mm
Separation point :
45um-75um
Bottom shaker :
TRTS60
Weight :
570kg/620kg
Dimension :
1510*1160*2000mm
Description

570KG / 620KG Filtering Desander Unit / Solids Control Desanding Machine

Product Introduction

Mud Desander is solids control equipment with a set of desander cyclone to separate sand from drilling mud in drilling rigs. Desander is installed on top of the mud tank following the shale shaker and vacuum degasser but before desilter. The desander removes the abrasive solids around 45-74 micron.

Desander, as stated earlier, have no moving parts. Micro fine separators are able to remove around 50 percent of those solids within the 10-15 micron range at a flow rate of 15 gal/min. Desander is typically positioned next-to-last in the arrangement of solids control equipment, with decanter centrifuge as the subsequent processing unit. Desander are preceded by gas busters, gumbo removal equipment (if utilized), shale shakers, mud cleaner (if utilized) and vacuum degasser. Desander is widely used in oilfield drilling.

Main Features of TR Mud Desander

  1. Pure polyurethane or high-chromium for hydrocyclones.
  2. Flexible fast connection are available for user assembly.
  3. Clamp connection for hydrocyclones installation, easy to dismantle and replace.
  4. Internation brand vibrating motor, Martin or Oli Motor.
  5. Compact design with small footprint.
  6. Replaceable hydrocyclones.
  7. Flexible options for 1, 2 or 3 pieces of 10" or 12" cones for different capacities.

Technical data of TRCS series desander

Model TRCS200-1S/2S TRCS250-1S/2S TRCS250-3S TRCS300-1S/2S
Capacity 60m3/120m3/h 100m3/200m3/h 300m3/h 120m3/240m3/h
Cyclone Specs 8” 10” 10” 12”
Cyclone Qty 1nos/2nos 1nos/2nos 3nos 1nos/2nos
Working Pressure 0.25-0.4Mpa
Inlet Size DN125mm DN150mm DN150mm DN150mm
Outlet Size DN150mm DN200mm DN200mm DN200mm
Separation Point 45μm -75μm
Bottom Shaker TRTS60 TRTS60 TRZS752 TRZS752
Dimension 1510*1160*2000mm 1510*1360*2250mm 1835*1230*1810mm 1835*1230*1810mm
Weight 570kg/620kg 670kg/760kg 1300kg 1380kg
Remark All desander could be customized without bottom shaker.

570KG / 620KG Filtering Desander Unit / Solids Control Desanding Machine

Main Application

TRCS Series Mud Desander is widely used in oil & gas drilling, trenchless HDD, Drilling Waste Management, city bored piling, tunneling construction, mining, Oil Sludge Dewatering Systems, Oil Mud Seperation, environment protection, Coal Bed Gas Solids Control System, Water Drilling etc.

Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
