10 DN150mm Cyclone Desander Equipment For Slurry Mud Separation
10 DN150mm Cyclone Desander Equipment For Slurry Mud Separation
10 DN150mm Cyclone Desander Equipment For Slurry Mud Separation
10 DN150mm Cyclone Desander Equipment For Slurry Mud Separation
Specifications
Brand Name :
TR Solids Control
Model Number :
TRCS250-1S/2S
Certification :
API certificate, ISO9001 certificate
Place of Origin :
Xi'an,China
MOQ :
1 Pc
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
20 Pcs / Month
Delivery Time :
Within 10 days after deposit
Packaging Details :
Pallet or wooden case
Capacity :
100m3/200m3/h
Hydrocyclone Specs :
10"
Hydrocyclone Qty :
1pcs/2pcs
Working pressure :
0.25-0.4Mpa
Inlet diameter :
DN150mm
Outlet diameter :
DN200mm
Separation point :
45um-75um
Weight :
670kg/760kg
Dimension :
1510*1360*2250mm
Bottom Shaker :
TRZS60
Description

Large Capacity Cyclone Desanding Equipment 10" For Slurry Mud Separation

Construction and principle of the hydrocyclone:


Hydrocyclone include mine management, overflow pipe, overflow pipe and Spigot.
upper of the hydrocyclone is a hollow cylinder and the lower is a cylinder communicating back vertebrae.


Features of Our Desander Hydrocyclone:

  1. Cyclone desander is based on fluid solid particles in the desander in screening principle when rotating in cycloneand filter made, as a whole, in the field of water treatment to achieve sand removal, and descending the turbid,solid-liquid separation effect is remarkable.
  2. Suitable for dry fine powder classifying,powders of ball shape ,flake shape and needle shape,also powders with different densities.
  3. Product size from classifier can vary from D97:2 micron to 150 micron.The product size is adjustable,which makes the change of product size easy and simple.
  4. Classifying efficiency(extraction rate) can be between 60% and 90%.Material with good flow-ability would have high classifying efficiency,otherwise,the classifying efficiency would be low.
  5. Vertical classifier wheel would have low ratation speed,low wear and low motor power.

Technical Specifications of TRCS Mud Desander

Model TRCS200-1S/2S TRCS250-1S/2S TRCS250-3S TRCS300-1S/2S
Capacity 60m3/120m3/h 100m3/200m3/h 300m3/h 120m3/240m3/h
Cyclone Specs 8” 10” 10” 12”
Cyclone Qty 1nos/2nos 1nos/2nos 3nos 1nos/2nos
Working Pressure 0.25-0.4Mpa
Inlet Size DN125mm DN150mm DN150mm DN150mm
Outlet Size DN150mm DN200mm DN200mm DN200mm
Separation Point 45μm -75μm
Bottom Shaker TRTS60 TRTS60 TRZS752 TRZS752
Dimension 1510*1160*2000mm 1510*1360*2250mm 1835*1230*1810mm 1835*1230*1810mm
Weight 570kg/620kg 670kg/760kg 1300kg 1380kg
Remark All desander could be customized without bottom shaker.

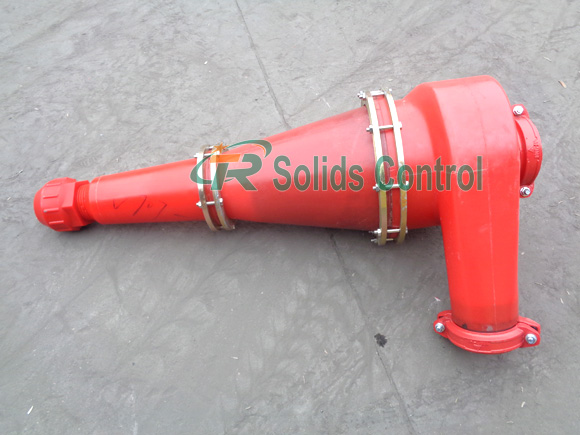

10

Application


Desander Hydrocyclones are used for grading, desliming and concentration application. For pulverized coal and dense metal minerals, it can sometimes be used for sorting. When referring to heavy media, the cyclone can be used for pre-selection or rough selection of ore. We could supply 8" and 10" desander cyclones.

Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
