SL100 Series 500*500mm 60 M3/H Mud Mixing Hopper high speed jet nozzle.
SL100 Series 500*500mm 60 M3/H Mud Mixing Hopper high speed jet nozzle.
SL100 Series 500*500mm 60 M3/H Mud Mixing Hopper high speed jet nozzle.
SL100 Series 500*500mm 60 M3/H Mud Mixing Hopper high speed jet nozzle.
Specifications
Brand Name :
TR Solids Control
Model Number :
TRSL100
Certification :
API Certificate, ISO Certificate
Place of Origin :
Xi'an,China
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
5000pcs Per Month
Delivery Time :
10 days
Packaging Details :
Iron or wooden case
Capacity :
60 m3/h
Work Pressure :
0.25 to 0.4Mpa
Inlet Diameter :
DN150
Hopper Dimension :
500*500mm
Weight :
140 kg
Application :
Oil Well Drilling, Tunnel, Subway
Description

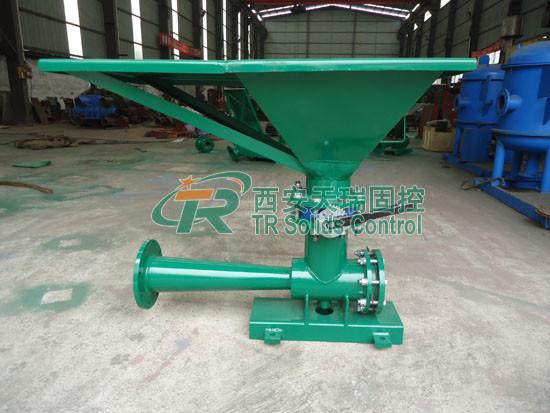

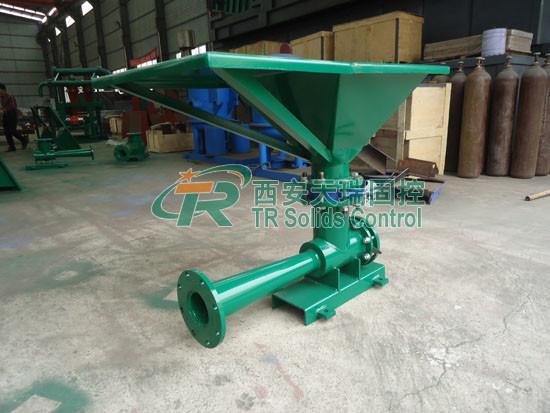

SL100 Series 500*500mm Mud Mixing Hopper

Product Introduction

Mixing Hopper, is a kind of direct injected mixing hopper is a direct injected mixer of additive material of drilling fluid. It is mainly used to mix drilling fluid and additives quickly to improve drilling fluid’s performance. It also can have shearing and hydration system with shear pump, we have two models with metric and British system.

The mud mixer is a piece of equipment used together with solids control system together. It can meet the requirements of drilling fluid weighting and mixing for solids control system of 1,500 m to 7,000 m drilling. This equipment is a single jet mixer combined with 45 Kw (or 55 Kw) sand pump and a jet mud hopper or a double jet mixer of two pumps and two hoppers. It features as safe performance and convenient transportation.

Main Characterstics of TRSL Mud Hopper:

1. Strong Mixing Capability: Venturi tube in outlet.

2. Quick Feeding: Strong suction with high speed jet nozzle.
3. Easy Operation: Standard butterfly valve on inlet.

Technical Parameters of Jet Mud Mixer & Mud Hopper

Model TRSLH150-50 TRSLH150-40 TRSLH150-30 TRSLH100
Matched Pump TRSB8×6-13J(55kw) TRSB6×5-13J(45kw) TRSB5×4-14J(37kw) TRSB4X3-11J(15kw)
Treating Capacity 240m3/h 180m3/h 120m3/h 60m3/h
Working Pressure 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa
Inlet Diameter 150mm 150mm 150mm 100mm
Nozzle Diameter 50mm 40mm 30mm 30mm
Hopper Size 750x750mm 750x750mm 600x600mm 600x600mm
Burden Speed ≤100kg/min ≤80kg/min ≤60kg/min ≤40kg/min
Weight 1600kg 1450kg 1300kg 1100kg
Dimension 2200*1700*1200mm 2200*1700*1200mm 2000*1650*1100mm 2000*1650*1100mm

SL100 Series 500*500mm 60 M3/H Mud Mixing Hopper high speed jet nozzle.


TR exported directly or sold with supporting drillers to more than 30 countries and regions in the world such as Russia, United States, Australia, Latin America and the Middle East etc. Making sure to support first-class solid-control equipment with developing “Made in China” as our own tasks, holding forward-looking to each task, every drawing has technicity to direct, every process has worker to follow up and every product has QC to check on. To provide customers with a full set of solid-control equipment solutions effectively is our company’s goal.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
