API Standard High Quality Vertical Cutting Dryer for Waste Drilling Mud

Introduction

Vertical cutting dryer can recycle a large proportion of synthetic slurry and oil-based mud, reducing waste emissions effectively. Meanwhile it improves the use of waste. TRCD series vertical cutting dryer can recover the oil cuttings in the composition, and processing capacity can arrive 30-50 tons per hour, oil content of cuttings after treatment is generally less than 3%.

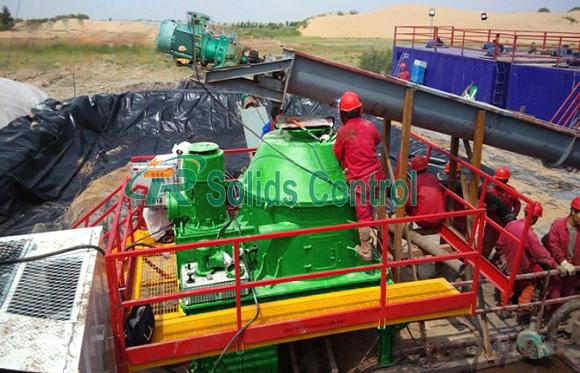

Vertical Cuttings Dryer produced by TR Solids Control is a type of vertical centrifuge, which can perform solid/liquid separation through centrifugal separation. The vertical cuttings dryer can effectively recover the liquid phase in drilling cuttings, making the solid phase become very dry. It is suitable for water-base mud, oil-base mud and synthetic base mud. By recovering the mud in drilling cuttings, the vertical cuttings dryer can reduce the drilling cost and cut down environmental pollution.

TRCD series Vertical Cutting Dryer is fixed with individual oil lubrication system with automatic alarm for pressure limit. The main motor and oil pumpmotor is interlocked with each other for avoiding the start of the main motor prior to the start of the oil pump motor.

Key Benefits of TR Vertical Cutting Dryer

• Efficient capacity and advanced design;
• Assembled with air knife, making it prevent basket from blocking;
• Discharging scraper is made from high chromium cast iron, with long service life.
• Every changeable selected parts pass dynamic balance test, meeting the balance of the complete machine;
• Independent oil cooling system, matched with scientific oil tank cooling system, making it meet operating requirement in high temperature environment;
• The highest rotary speed is 900 rpm. It could form 420 G separation factor, and separate the fluid from drilling waste effectively.

Technical Specifications of Vertical Cutting Dryer

Ease of Maintenance:

• Normal wear parts are easily accessible from the top of the unit; belts are easily.
• changed without removing gear assembly.
• Interchangeable tungsten carbide flights protect rotor and gear box from excessive erosion, minimizing main component failure.
• Explosion-proof motors and control panels can be certified with CE/ATEX.
