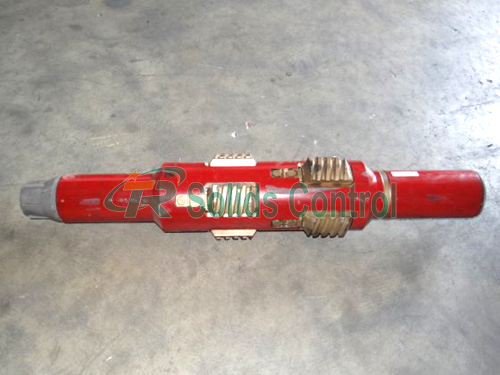

API Oilfield Downhole Tools 4 1/2" Casing Scraper

Product Introduction

Casing Scraper is ideal for the removal of dirt which may be left over the inside walls of casing, such as solid cement, hard wax, various salt crystals or deposits, perforation burrs, iron oxide residues resulted from rusting, so as to make all down hole tools pass through unblocked. Especially when a small circular clearance is available between the down hole tools and casing inside diameter, the complete scrapping becomes more necessary before further working. At present in the large petroleum well scrapping in the internal wall of casing by use of casing scraper is a necessary step.

Working principle

Before run into downhole, the max. installation size of blade shall be bigger the inside diameter, after run into downhole, the blade is pressed to press the spring down, theradial force is given by spring. When hard materials need to be scrapped, scrapping for several times must be done before scrapped to casing inside diameter. The casing scraper is connected on the low end of drill string, the moving of drill string up and down make an axially feeding in the scrapping operation. It is showed in the structure that each spiral blade has two internal and external curved scrapping edges. When the blade is working for reciprocating scrapping, the internal edge and external edge are working in turn,and there is a wider transverse edge band between two scrapping edges stands a cutting and milling action to the cut surface. The strap blades are uniform distributed on the scraper so that the returned mud can take the scraped substances away.

Technical Data of TR Oilfield Downhole Casing Scraper

Through the past ten years, our company has already established a deep strategic cooperation relation with domestic suppliers who specilizes in oil drilling equipments, and become the top level manufacturer and supplier of some well known large or medium sized SOEs such as CNPC and Sinopec. The products made by our company are exported to Europe, America, the Middle East, North Africa and Southeast Asia and other regions, because of which, we enjoy widespread praise among customers at home and abroad. Our mainly products: drilling rig parts, drilling equipment, solid control system, wellhead equipment, fishing tools, cementing tools. All the productions is within the standard of API and authorized by ISO9001:2000.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
