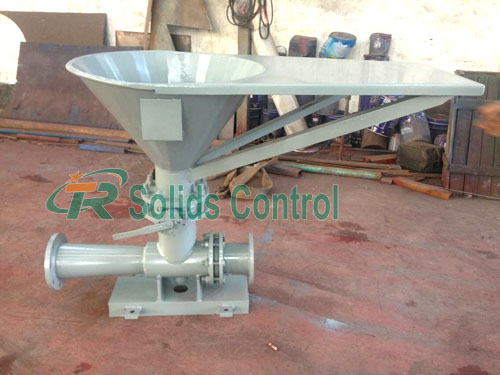

Oil Well Drilling 500*500mm API Funnel Slurry Mud Hopper
Oil Well Drilling 500*500mm API Funnel Slurry Mud Hopper
Oil Well Drilling 500*500mm API Funnel Slurry Mud Hopper
Oil Well Drilling 500*500mm API Funnel Slurry Mud Hopper
Oil Well Drilling 500*500mm API Funnel Slurry Mud Hopper
Oil Well Drilling 500*500mm API Funnel Slurry Mud Hopper
Specifications
Brand Name :
TR Solids Control
Model Number :
TRSL100
Certification :
API Certificate, ISO Certificate
Place of Origin :
Xi'an,China
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
5000pcs Per Month
Delivery Time :
10 days
Packaging Details :
Iron or wooden case
Capacity :
60 m3/h
Work Pressure :
0.25 to 0.4Mpa
Inlet Diameter :
DN150
Hopper Dimension :
500*500mm
Weight :
140 kg
Application :
Oil Well Drilling, Tunnel, Subway
Description

API Mud Funnel Slurry Mixing Hopper

Main Introduction

Our jet mud mixer aslo called mud mixing hopper unit is special equipment to prepare and increase the drilling fluids weight by adding and mixing bentonite, change the fluid density, change the mud density, viscosity, and dehydration. The effect is more prominent matching with Shear Pump. TRSLH jet mud mixer is a unit used together with the solids control system for petroleum drilling and horizontal directional drilling(HDD). The unit includes one sand pump, one venturi mud mixing hopper and one jet mud mixing hopper and pump that are installed in a base with pipe valves. It is safe and stable and can be moved conveniently. At the same time,we can make Twin-Hopper Unit with two pumps according to the user requirements. It is designed by TR solids control bentonite mud mixer,drilling mud tank jet mixer.

This efficient, high performance mud hopper developed by our company can improve the shear and dispersion of solids in kinds of mud mixing devices. It includes steel feed funnel sack table ,jet nozzle, venturi, butterfly valve, and mounting base. Individual components are also offered.

Main Characterstics of TRSL Mud Hopper:

1. High feed rates for all types of solids.
2. Exclusive jet nozzle/venturi design.
3. Low-pressure, high-volume design.
4. Suitable for long return lines or high tanks.
5. Efficient shearing to prevent balls or slugs.
6. Rapid, uniform dispersion.
7. Built-in sack table and receiving basin.
8. Flexible operation for weighted or underweighted mixing applications.

Parameters of Jet Mud Mixer & Mud Hopper

Model TRSLH150-50 TRSLH150-40 TRSLH150-30 TRSLH100
Matched Pump TRSB8×6-13J(55kw) TRSB6×5-13J(45kw) TRSB5×4-14J(37kw) TRSB4X3-11J(15kw)
Treating Capacity 240m3/h 180m3/h 120m3/h 60m3/h
Working Pressure 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa 0.25~0.40Mpa
Inlet Diameter 150mm 150mm 150mm 100mm
Nozzle Diameter 50mm 40mm 30mm 30mm
Hopper Size 750x750mm 750x750mm 600x600mm 600x600mm
Burden Speed ≤100kg/min ≤80kg/min ≤60kg/min ≤40kg/min
Weight 1600kg 1450kg 1300kg 1100kg
Dimension 2200*1700*1200mm 2200*1700*1200mm 2000*1650*1100mm 2000*1650*1100mm

Oil Well Drilling 500*500mm API Funnel Slurry Mud Hopper

Xi'an TianRui Petroleum Machinery Equipment Company Limited was established in 2010 and located in Xi'an city of Shaanxi Province. We have specialized technicians, senior engineers and professional marketing team. Our company is committed to develop, manufacture and supply a variety of oilfield equipment. Main products include: Petroleum equipment & tools such as solid control equipment, drilling equipment, oil production equipment, oil pipes, wellhead equipment, download tools, well control equipment, cementing tools, and petrochemicals etc. Besides, we also provide oilfield technology service to our domestic and foreign customers. We passed the API and international standards.We have obtained ISO, 3C,etc certificated qualification and extreme standard let us keep very competitive in the current market. As a leading manufacturer of petroleum machinery, we are pleased to inform you that we have working with many big companies throughout the world.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
