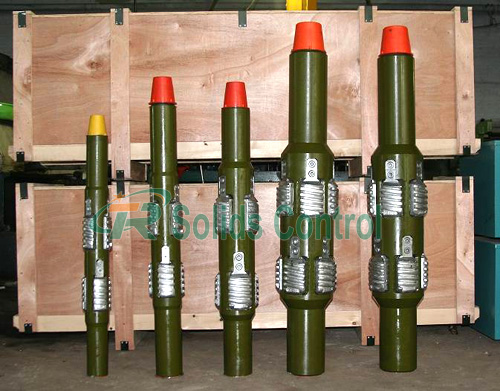

Casing Scraper for Maintaining a Clean Casing

Product Introduction

During drilling, fishing, completion or wireline jobs, it is critical for the downhole tools to have a obstruction-free casing so as to increase efficiency. Casing Scraper removes rust, scale, cement, mud, bullets, paraffin, perforation burrs and other obstructions or foreign material from the inside walls of casing.

Maintaining a clean casing is important during drilling operation, fishing or wireline tools. Likewise, packers, patches, spears, and similar tools require clean surfaces to grip. Obstructions on casing walls frequently cause these tools to fail or become difficult to operate.

Our Casing Scraper removes deposits, burrs, and irregularities from casing that might cause trouble during the operation of packers or other close tolerance equipment.

Working principle

Before run into downhole, the max. installation size of blade shall be bigger the inside diameter, after run into downhole, the blade is pressed to press the spring down, theradial force is given by spring. When hard materials need to be scrapped, scrapping for several times must be done before scrapped to casing inside diameter. The casing scraper is connected on the low end of drill string, the moving of drill string up and down make an axially feeding in the scrapping operation. It is showed in the structure that each spiral blade has two internal and external curved scrapping edges. When the blade is working for reciprocating scrapping, the internal edge and external edge are working in turn,and there is a wider transverse edge band between two scrapping edges stands a cutting and milling action to the cut surface. The strap blades are uniform distributed on the scraper so that the returned mud can take the scraped substances away.

Technical Parameters of Our Downhole Casing Scraper

Product Application

Removes cement sheath, burrs, and pipe scale.
Pre-completion wellbore clean-up.
Workovers and sidetracking.
Abandonment.
Drilling / milling cement plugs.

Competitive Advantages

1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
